| Categories | Industrial Pressure Sensor |
|---|---|
| Brand Name: | HT SENSOR |
| Model Number: | BP93420-III |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Standard Export Package carton |
| Model NO.: | BP93420-III |
| Range: | -100kpa-10kpa~40mpa |
| Output: | 4-20mA and so on |
| Power: | 12-32VDC（24VDC） |
| ACC: | ±0.5%F.S, ±0.25%F.S |
| Thread: | G1/2 OEM |
| HS Code: | 9026201090 |
| Measuring Medium: | Liquid and gas |
| Material: | Stainless steel + cast aluminum |
| Customization: | ODM |
| Company Info. |
| Baoji Hengtong Electronics Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

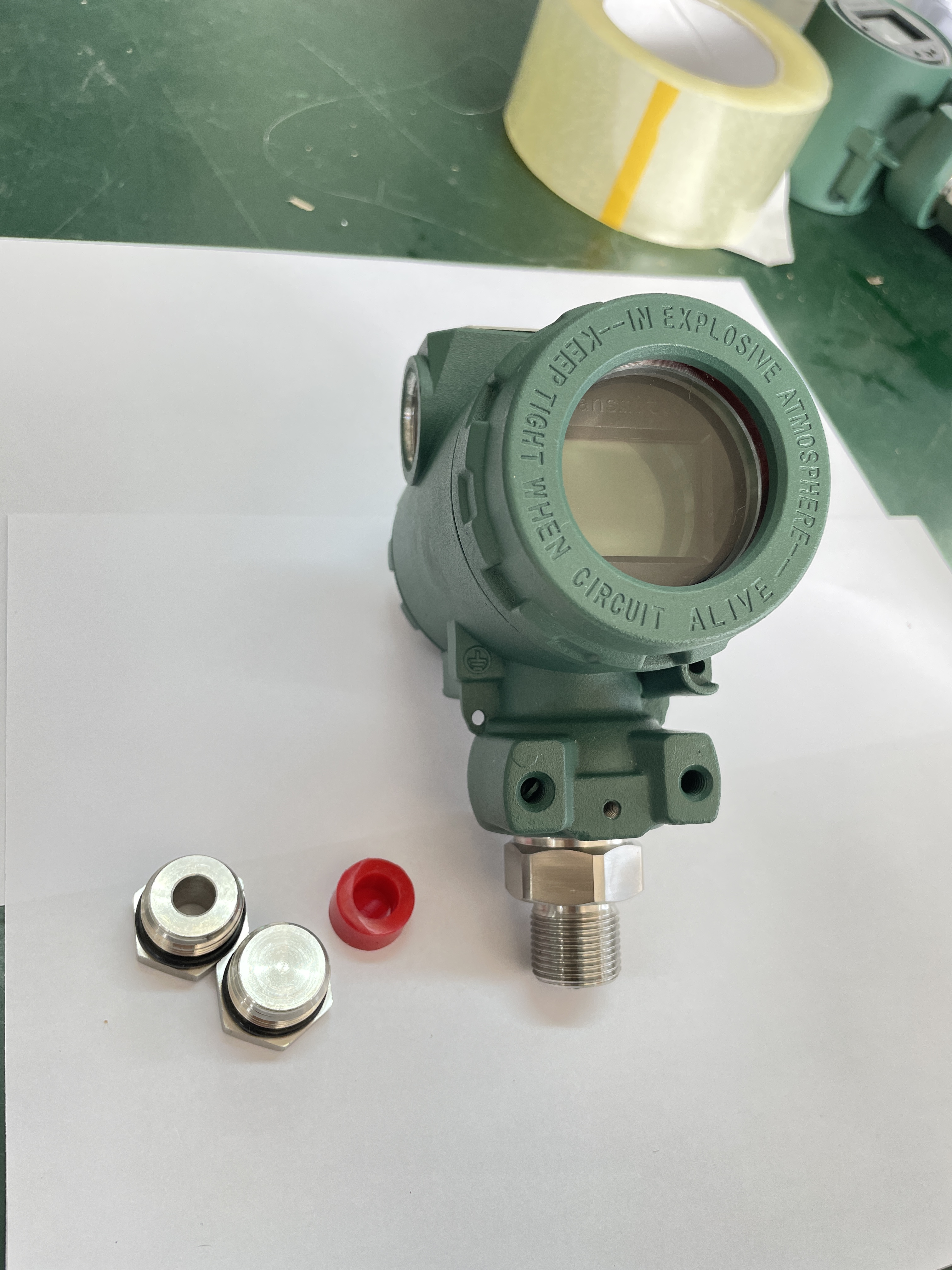

BP93420-III Pressure Transmitter
Introduction of industrial pressure transmitter sensor :
The BP93420-III Industrial pressure sensor transmitter features a stainless steel pressure core and miniature amplifier processing circuit. The zero range is adjustable, and the installation interface can be customized to meet user requirements. Additionally, it offers compatibility with other brands of transmitters. This series of products is widely utilized in industrial process control, hydraulic equipment, chemical industry, and other sectors where harsh environmental conditions are prevalent.
Product Features of industrial pressure transmitter sensor:
1. Wide measuring range, diverse pressure interface forms.
2. IP65 protection level.
3. Various output signal forms.
| Performance Parameters of 2088 pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~10kPa…40MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. In order to ensure the reliable operation of the product, it is recommended to install lightning protection device on site and ensure the reliable grounding of the product and the power supply.
4. The default cable does not come with cable. If necessary, please communicate with the salesman in advance.
5. In case of strong vibration, instantaneous wallop, strong electromagnetic or radio frequency interference and other special requirements, please let us know and indicate in the order.
