BP93420-IX Industrial Pressure Sensor LED Display Ultra High Accuracy Pressure Transducer

BP93420-IX High Precision LED Display Industrial Pressure Sensor

BP93420-IX Pressure Transmitter sensor

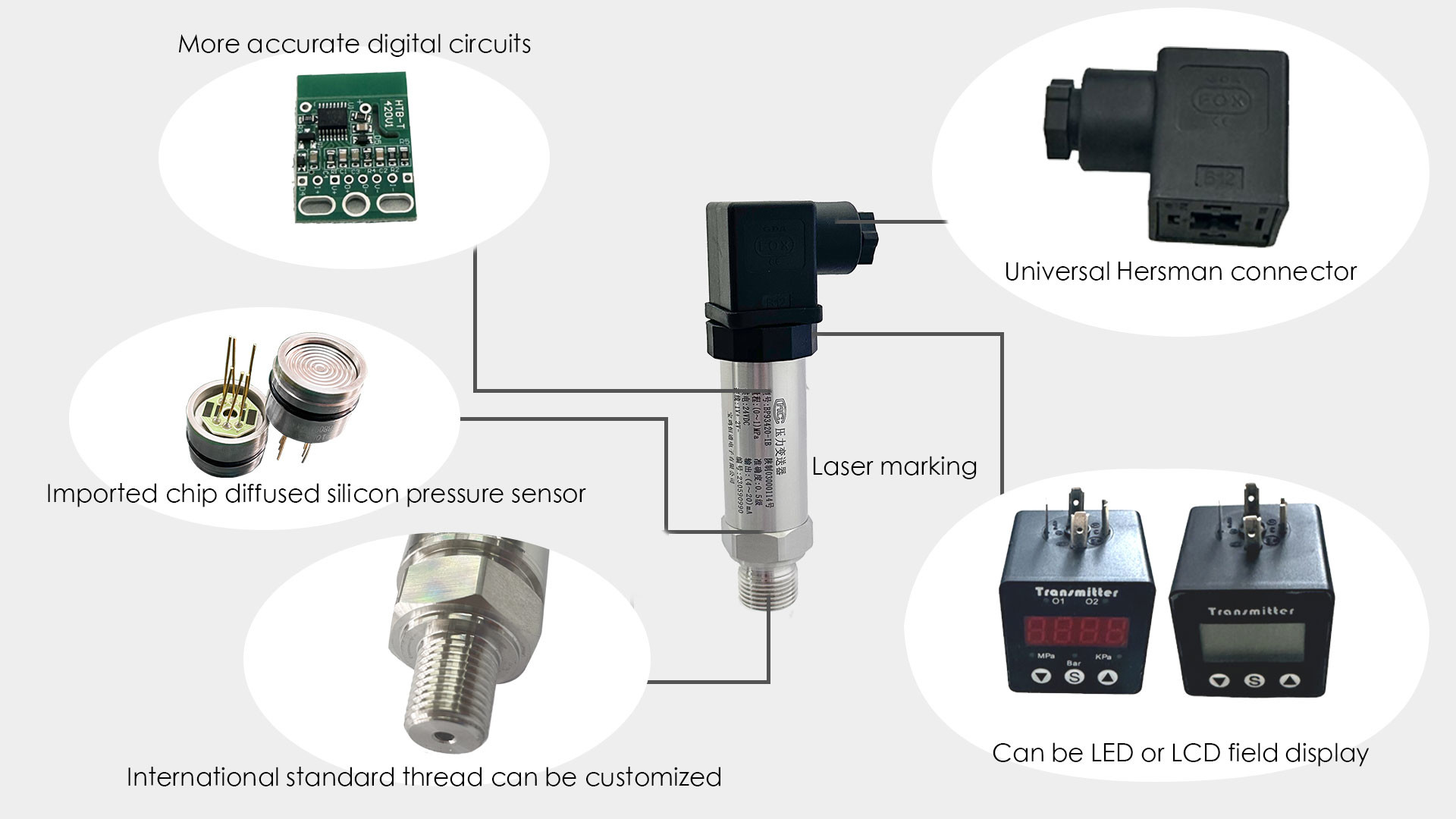

Introduction of industrial pressure sensor:

The BP93420IX pressure transmitter sensor utilizes the HT series silicon pressure sensor oil-filled core as its signal measuring element. It is a comprehensive product that combines pressure measurement, display, and output functions. This versatile pressure transmitter is widely recognized for its accuracy and reliability. With advanced technology, it ensures precise pressure measurement across a wide range of applications. The sensor's long-term stability makes it ideal for demanding industrial processes, effectively reducing maintenance and replacement expenses.

Product Features of industrial pressure sensor:

1. Wide measurement range,stainless steel structure.
2. Various pressure interface options.
3. High precision,display available.

Applications of industrial pressure sensor:

1. Suitable for scientific research.
2. petroleum, chemica.
3. Commonly employed in the marine and aviation sectors.

Performance Parameters of pressure transmitter sensor
Measurement Range	-100kPa…0kPa ~10kPa…100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability&Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	Cast aluminum
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.25kg

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V
0/1~10V
0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

High Precision Hengtong Sensor Bp93420IX Pressure Transmitter Sensor China

Ordering tips

1.Please ensure that the medium to be measured is compatible with the contact parts of the BP93420-IX industrial pressure sensor transmitter when selecting the product for use.

2.Please note that explosion-proof type products do not include digital display heads when placing an order.

3.When ordering transmitters with an LCD or LED display head, it is essential to ensure that the power supply for the transmitter is not lower than 20VDC.

4.To ensure reliable operation of the BP93420-IX industrial pressure sensor transmitter, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.

5.The Fluoro rubber O-ring used in the BP93420-IX industrial pressure sensor transmitter has a rated working temperature range of -20ºC to 250ºC. For operating temperatures below -20ºC, it is necessary to choose an EPDM O-ring seal.

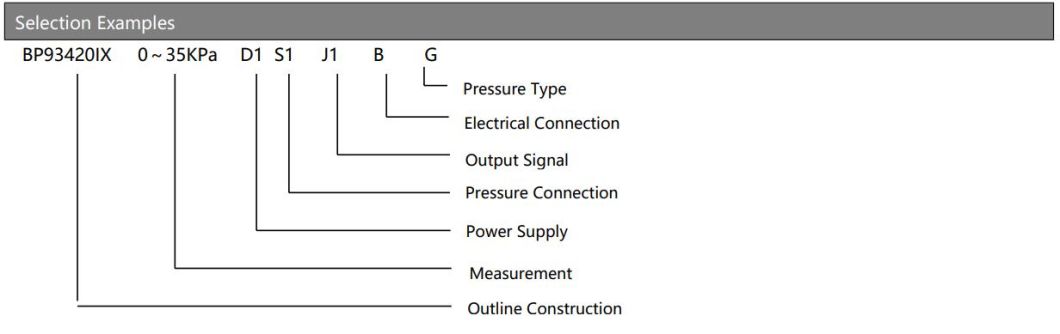

Order Guide
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter
	IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC

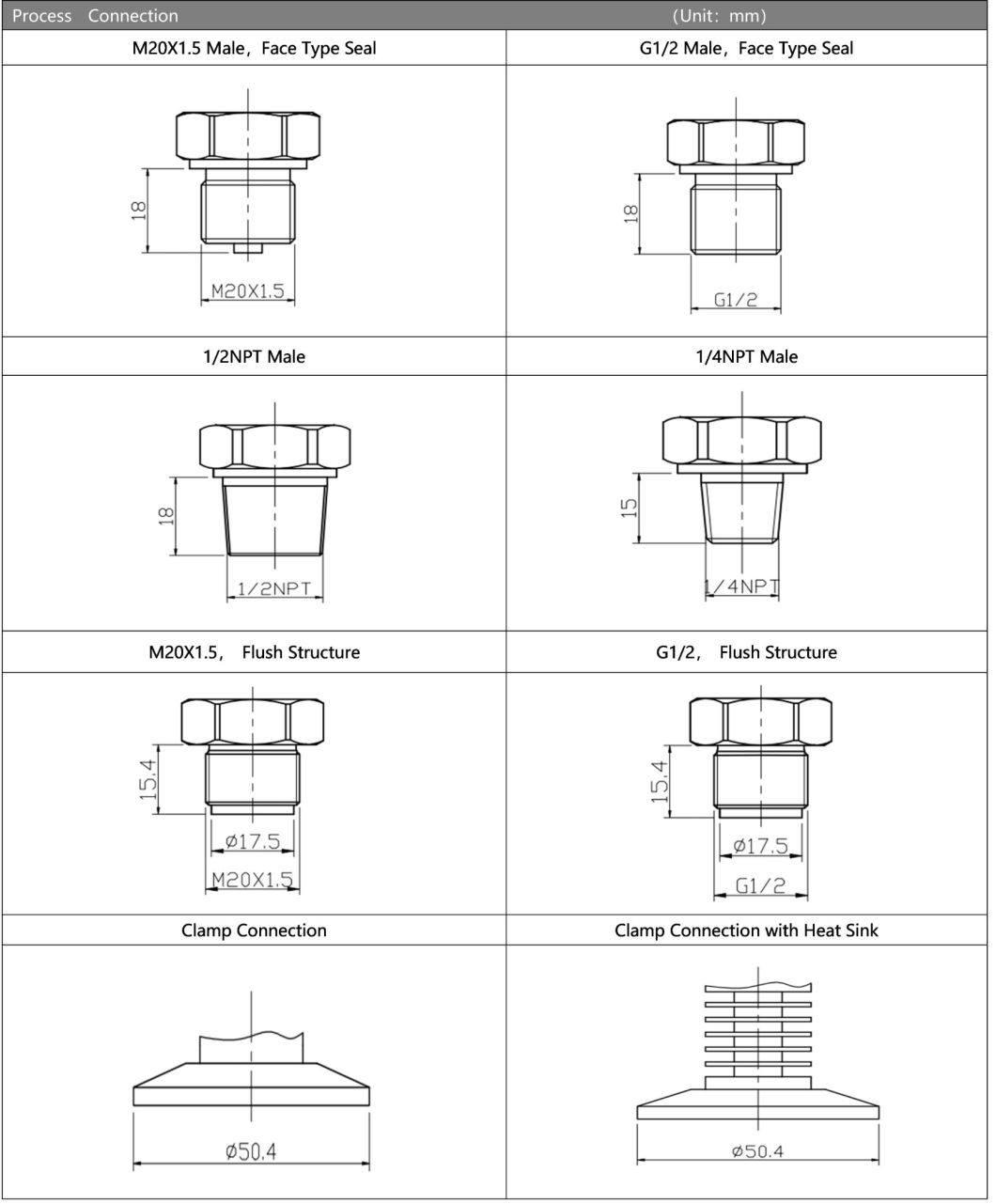

					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure

To recommend you the most suitable sensor, please tell us below information.

1. Working temperature: -40~125 °C ?

2. Test range?

3. Output: 4-20mA , RS485 or others?

4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?

5. Electrical connection: Hirschmann, Packard, Direct lead?

6. Order quantity: ?
