BP93420-IC Industrial Pressure Transducer 4-20mA 24V High Temp Pressure Sensor

BP93420IC Pressure Transmitter Sensor

Introduction of Industria pressure sensor:
The BP93420-IC is a high-temperature pressure transmitter sensor that utilizes the advanced HT19 series silicon pressure-resistance isolation oil-filled core as its core measuring element. With a specialized heat dissipation structure integrated into the transmitter, it efficiently captures the pressure of the measured medium. This unique design enables reliable and accurate pressure measurements in demanding environments with high temperatures. It is an excellent choice for applications that involve temperature fluctuations or operate under elevated conditions. The BP93420-IC is widely used in industrial processes and systems that require precise pressure monitoring in challenging high-temperature settings.


Product Features of Industria pressure sensor:

1. Wide measuring range, stainless steel structure, diverse pressure interface forms

2. IP65 protection rating stainless steel structure

3. Zero and full-scale adjustable

4. High precision, all stainless steel structure

Applications of Industria pressure sensor:

1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel

2. Applied in the marine and aviation industries

3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology

4. Utilized in hydraulic and pneumatic control systems

1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.

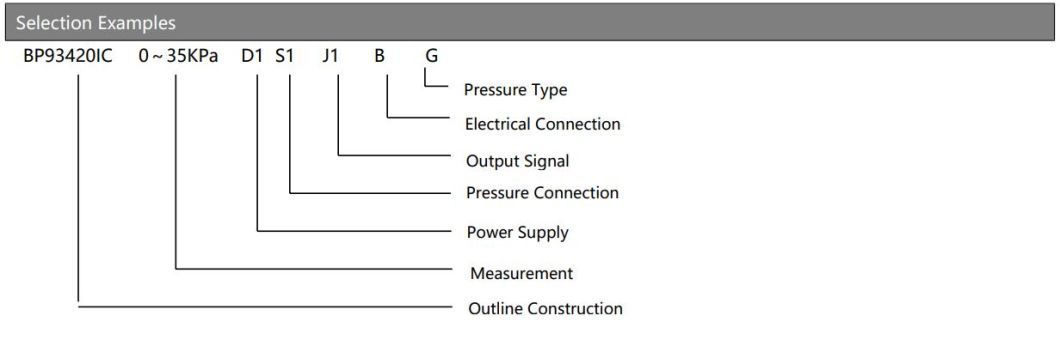

Order Guide
BP93420XX	Pressure Transmitter

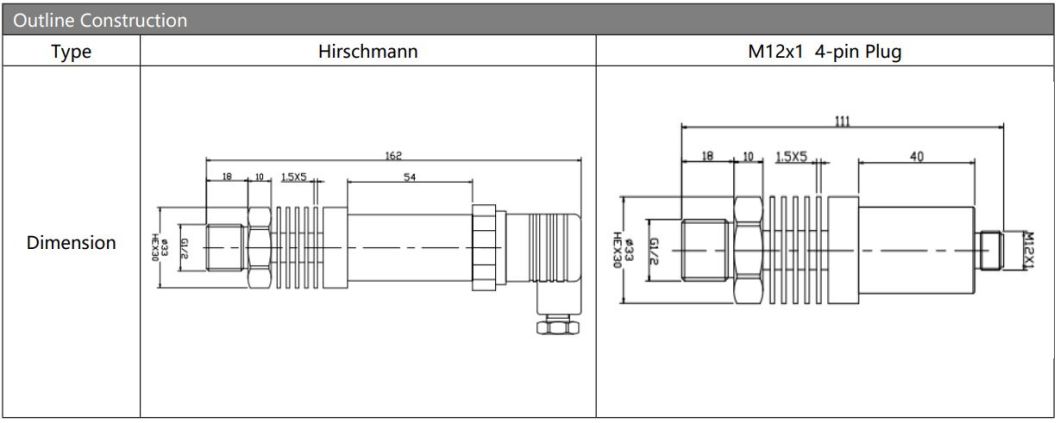

	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter
	IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-0.1. . .0~0.01...100MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure

To recommend you the most suitable sensor, please tell us below information.

1. Working temperature: -40~125 °C ?

2. Test range?

3. Output: 4-20mA , RS485 or others?

4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?

5. Electrical connection: Hirschmann, Packard, Direct lead?

6. Order quantity: ?
