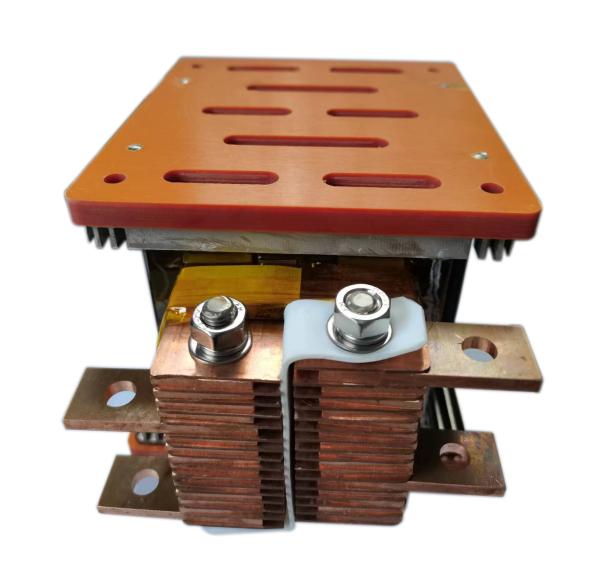

25KW Planar Transformer 50KHz - 350KHz Frequency Isolation Transformer

25KW Planar Transformer , Isolation transformer​

1. Turns ratio: Pri:Sec=1:1±2%
2. Toal output power: 25KW
3. Input voltage: 1000Vdc±10%
4. Output voltage: 1000Vdc±10%
5. Sec current: 25A
6. Operating frequency: 50KHz input
7. Volt-usec product: 3884 Max
8. Hi-Pot: 4000Vac,50Hz,1min Pri to Sec
9. Insulation class: F
10. Operating temperature: -40℃ to +105℃
11. Storage temperature: -40℃ to +65℃

    Shaanxi Shinhom Enterprise Co.,Ltd is one large-sized key enterprise in producing magnetic components and supplying OEM`high quality magnetics components in China ,It has been approved for the certification ISO9001&QS9000.Shinhom has grown rapidly by supplying high quality magnetic components on-time, offering competitive pricing, and providing strong customer service, It`s products can be widely used in personal computer, computer peripherals, automotive electronics, consumer electronics, elecommunication equipment ,test equipment, GPS equipment, medical appliances and cellular Phone to name just a few . It has annual capacity reaches 300 Million Pieces and has more than 20 year of experience in producing inductors & transformers,Current transformers, filters.

    Since its inception in 1998, shinhom has become a major supplier of inductors & transformers and Product Solutions for its professional R&D Department, accurate market positioning and high quality products.
