High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm

TP30 Series High frequency 300W Planar Transformer,PCB Mounting Planar Transformer,Power transformers,High current coil

FEATURES:

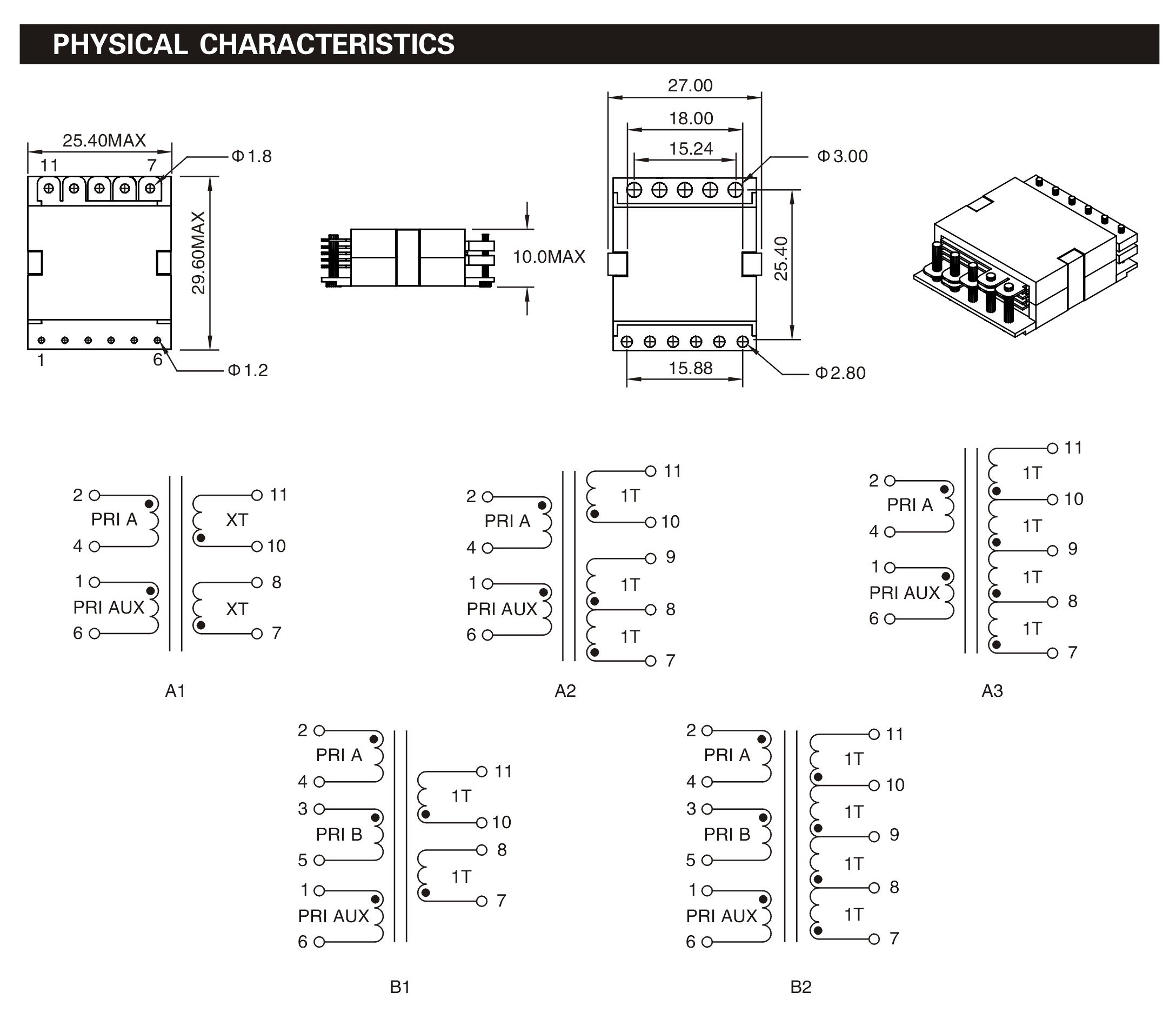

• Footprint 29.6 mm×25.40 mm
• Lower Profile of 9.0 mm and 10 mm
• Low-profile planar transformer
• High-power planar transformer
• High-frequency planar transformer
• PCB planar transformer
• Planar switching power transformer
• Off the shelf SMT planar transformer
• Power Rating Up to 300 Watts
• High Efficiency of Over 98%
• High Power Density of 600 Watts Per Cubic Inch
• High Isolation (operational) 1800 Vdc
• High Frequency 200 kHz-700 kHz
• Operating Temperature -40℃ to +125℃
• High Creepage and Clearance distances between primary and
• Applicable to all SMPS topologies.

APPLICATIONS:

• High performance DC/DC converters.
• High efficiencies up to over 98 percent, high power density of 600 watts per cubic inch DC/DC converters.
• For forward, full-bridge, half-bridge and push-pull DC/DC converters.
• Input voltages between 18V and 75V, and output voltages from 52V down to 1.0V DC/DC converters.
• Telecommunications, industrial control systems,
• Automotive and heavy equipment vehicle systems

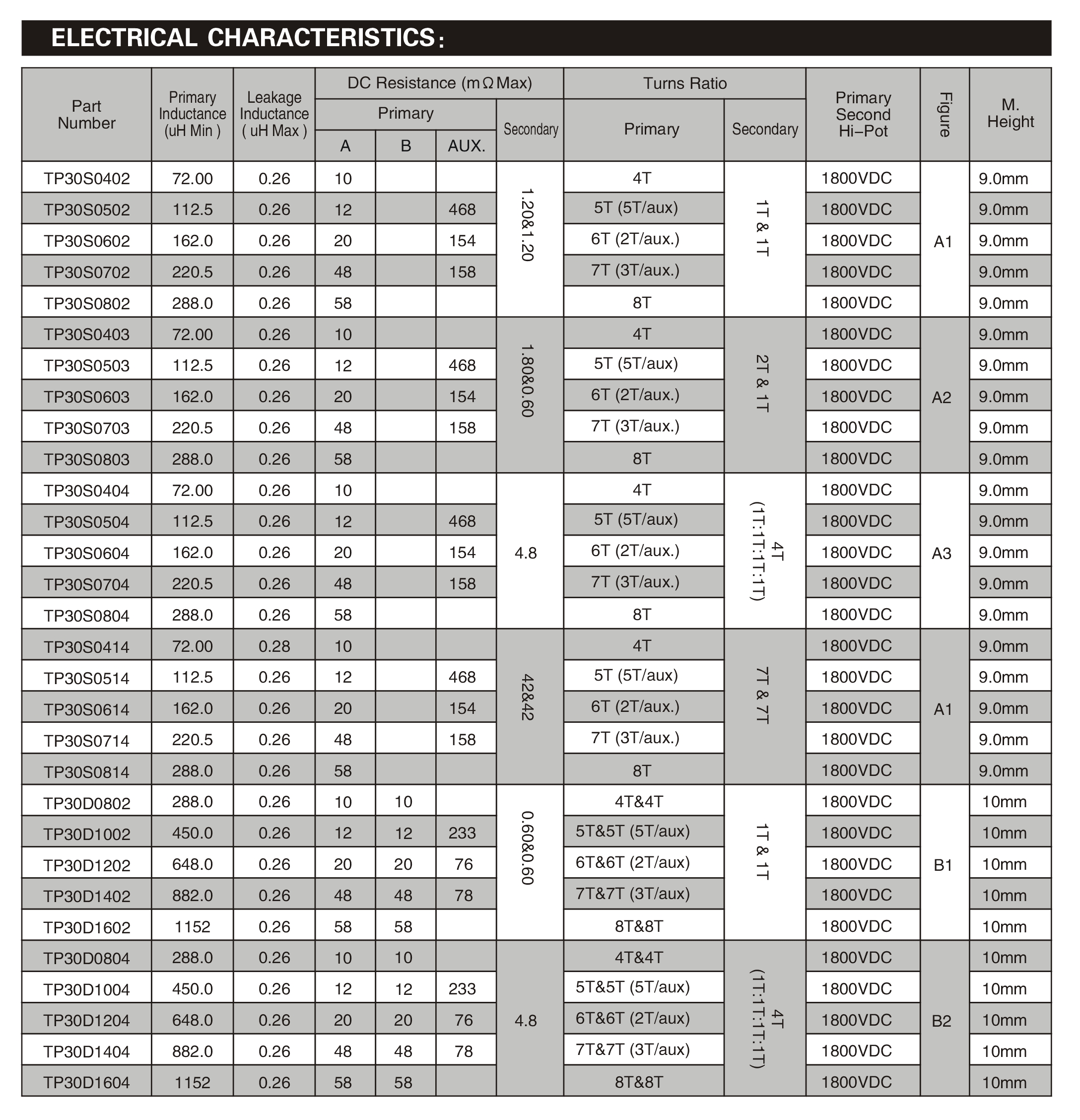

TECHNICAL INFORMATION:

• The inductance is measured with both primary windings connected in series where applicable (type D: 2 to 5 with3 and 4 shorted, type S:2 to 4 only).
• The leakage inductance is measured with both primary windings connected in series where applicable in all other winding shorted.
• All specifications typical at TA=25℃.
