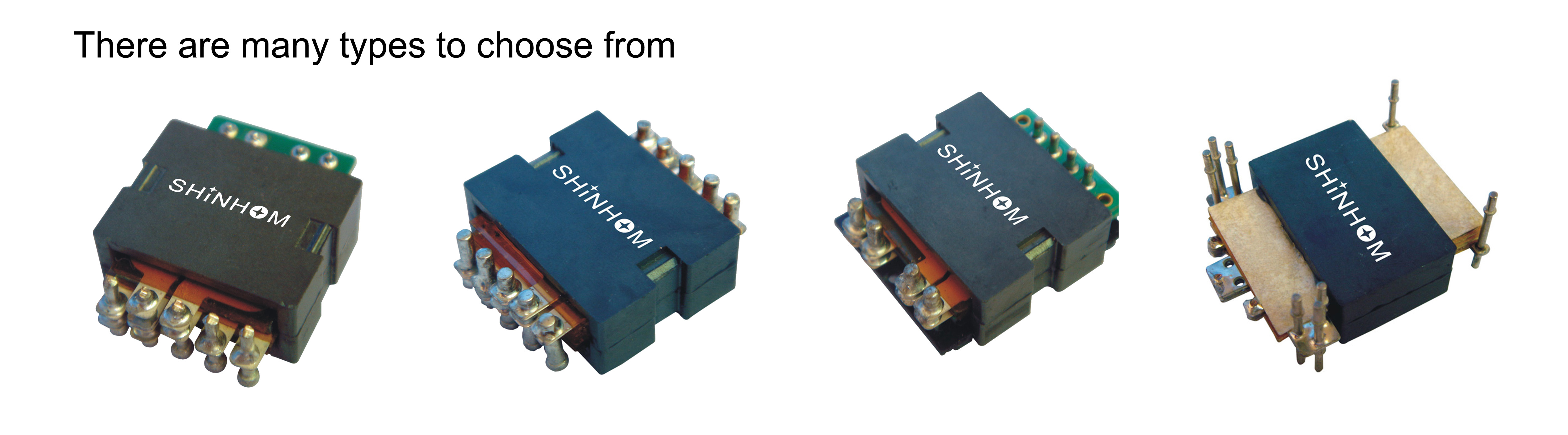

73A Surface Mount Transformer Planar Shape Pad Size 23.5mm * 19.5mm

Planar Transformer for DC/DC and DC/AC Converter,Current ranting up to 73A,Pad size 23.5mm*19.5mm

FEATURES:

• Low-profile planar transformer
• High-power planar transformer
• High-frequency planar transformer
• PCB planar transformer
• Planar switching power transformer
• EE14/EE16/ EE18/EE22/EE32/EE38/EE43/EE64/EE100 planartransformer
• Off the shelf SMT planar transformer
• Power range: up to 3000W
• Very low Leakage Inductance (less than 0.2% for un-gapped cores).
• Cost effective and competitive prices.
• Minimum Electromagnetic Interference (EMI).
• High specific power density (5W-25kW per one component).
• High Creepage and Clearance distances between primary and
• Applicable to all SMPS topologies.
• Various mounting and terminals options (Horizontal, Vertical, Through-holes, SMT, Pins, Flying-cables and more).
• Specially designed heat-dissipating Clasps.

APPLICATIONS:

• High density and high energy efficiency.
• High current DC/DC power supplies high current.
• The main windings inductor serves as an output choke,
• While the auxiliary windings controls, Input current to the PM(TI25S1604).
• Telecommunications, industrial control systems,
• Automotive and heavy equipment vehicle systems

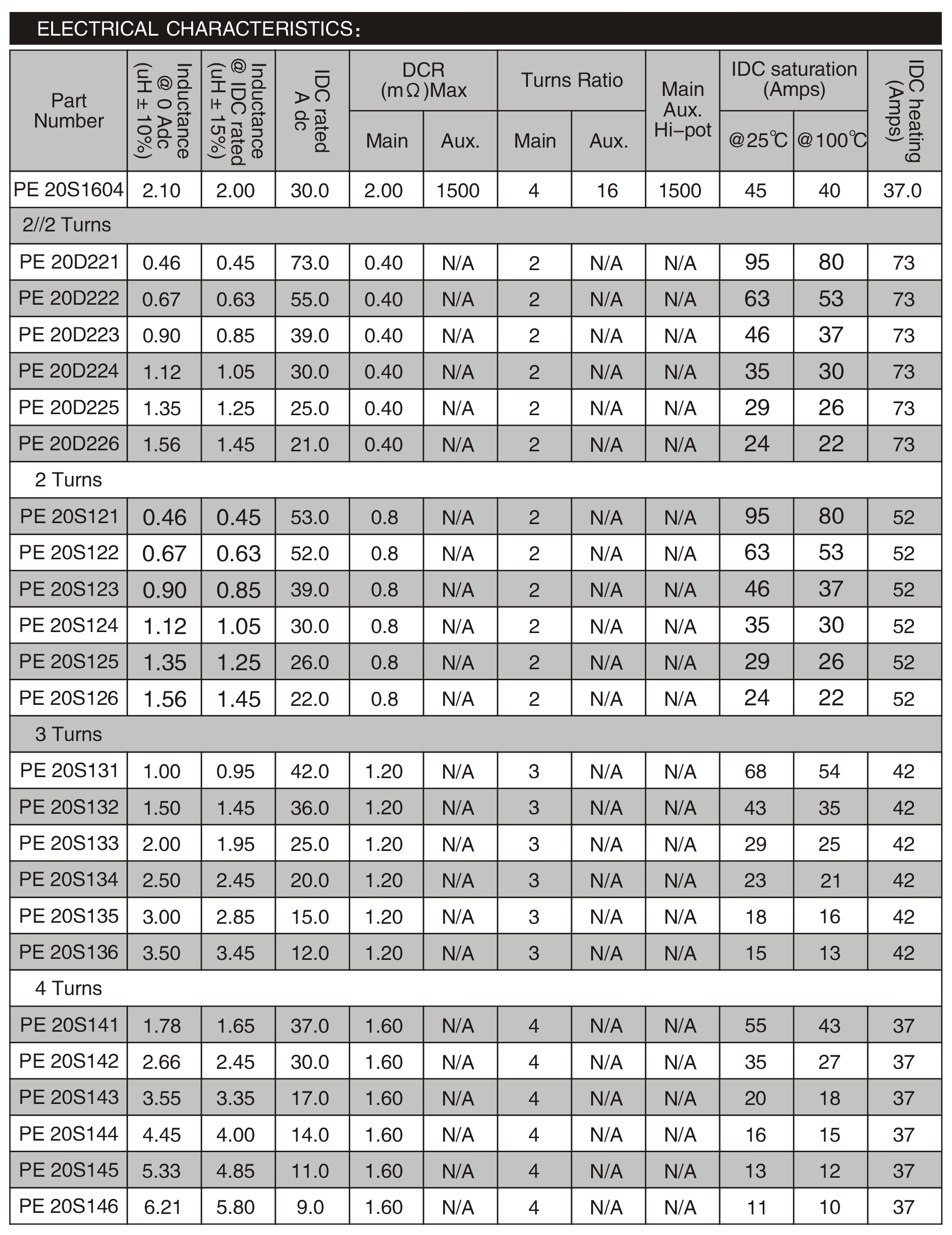

TECHNICAL INFORMATION:

• Inductance of PE 20s1604 measured on Agilient/HP4284 between pins 7 & 11 at 100kHz, 0.1 Vrms.
• The IDC rated is either 85% of the IDC saturation or the IDC heating depending which is lower.
• The IDC saturation is the current which causes the inductance to drop by 15% of its nominal value.
• The IDC heating is the current which causes the temperature of the part to increase by approximately 45℃.
