| Categories | Loop Detector |
|---|---|
| Brand Name: | JUTAI |
| Model Number: | LD-100 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-5 working days after receipt the payment |
| Packaging Details: | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Power Supplu: | 110-240v |
| Self-turning Range: | 20-2000μH |
| Sensitivity: | 6 way selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L |
| Frequency: | Four step switch selectable20-80KHz |
| Operation Tempts: | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output: | Blinks slowly: may indicate a short circuit or insufficient number of turns Blinks faster: may indicate an open loop or excessive number of turns |
| Response Times: | Turn-on 10-90MS / Turn-off 10-90MS |
| Relay: | Presence relay / Fault relay |
| Company Info. |
| Shenzhen Jutai Comm Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The JUTAI LD-100 Parking Barrier Gate Loop Detector is an advanced technology solution crafted to boost the efficiency and reliability of parking barrier gate systems. This state-of-the-art loop sensor is adept at identifying a wide range of vehicles, from oversized trucks to motorcycles, ensuring smooth and automatic gate operations. It is a vital tool for optimizing modern parking management systems.
| Feature | Description |
|---|---|
| Wide Sensing Range and High Sensitivity | Comprehensive Detection: Accurately identifies vehicles within a sensing range of 15 to 2000μH.<br>Enhanced Sensitivity: High sensitivity ensures reliable performance in diverse environments. |
| Automatic Reset Function | Self-Resetting Capability: Automatically resets in case of a malfunction, enhancing system stability and minimizing the need for manual intervention. |
| Multiple Detection Level Selection | Customizable Detection Levels: Provides 16 selectable levels from 0.008% DL/L to 2.50% DL/L, allowing fine-tuning for optimal detection accuracy. |
| 40000V Lightning Protection | Robust Protection: Features advanced lightning protection up to 40000V, safeguarding the detector against lightning strikes and extending its operational lifespan. |
| Wide Operating Environment Range | Versatile Performance: Designed to operate effectively across a wide temperature range from -40°C to +70°C, ensuring reliable function even in extreme weather conditions. |
| Step | Instructions |
|---|---|
| Positioning and Connection | Choose Location: Select an optimal location for the loop detector to ensure accurate vehicle detection.<br>Connect: Follow the wiring instructions to connect the loop detector to the barrier gate control system. |
| Calibration and Testing | Calibrate: Choose the appropriate detection level based on specific requirements.<br>Test: Verify accurate vehicle detection and proper gate operation. |
| Final Adjustments | Adjust Sensitivity: Optimize performance by fine-tuning the sensitivity settings.<br>Confirm Reliability: Conduct a final test to ensure the system's reliability and effectiveness. |
| Specification | Details |
|---|---|
| Model | LD-100 |
| Sensing Range | 15 to 2000μH |
| Sensitivity | High, with 16 adjustable levels (0.008% DL/L to 2.50% DL/L) |
| Lightning Protection | Up to 40000V |
| Operating Temperature | -40°C to +70°C |
| Application | Ideal for parking barrier gates, capable of detecting a variety of vehicles, including oversized trucks and motorcycles |
Switch 2 (Dipswitch Settings)
1.DIP 1 & DIP 2 Setting Special Functions
2.DIP 3 & DIP 4 Setting Relay B Output
3. DIP 5 Setting Automatic Reset
4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay

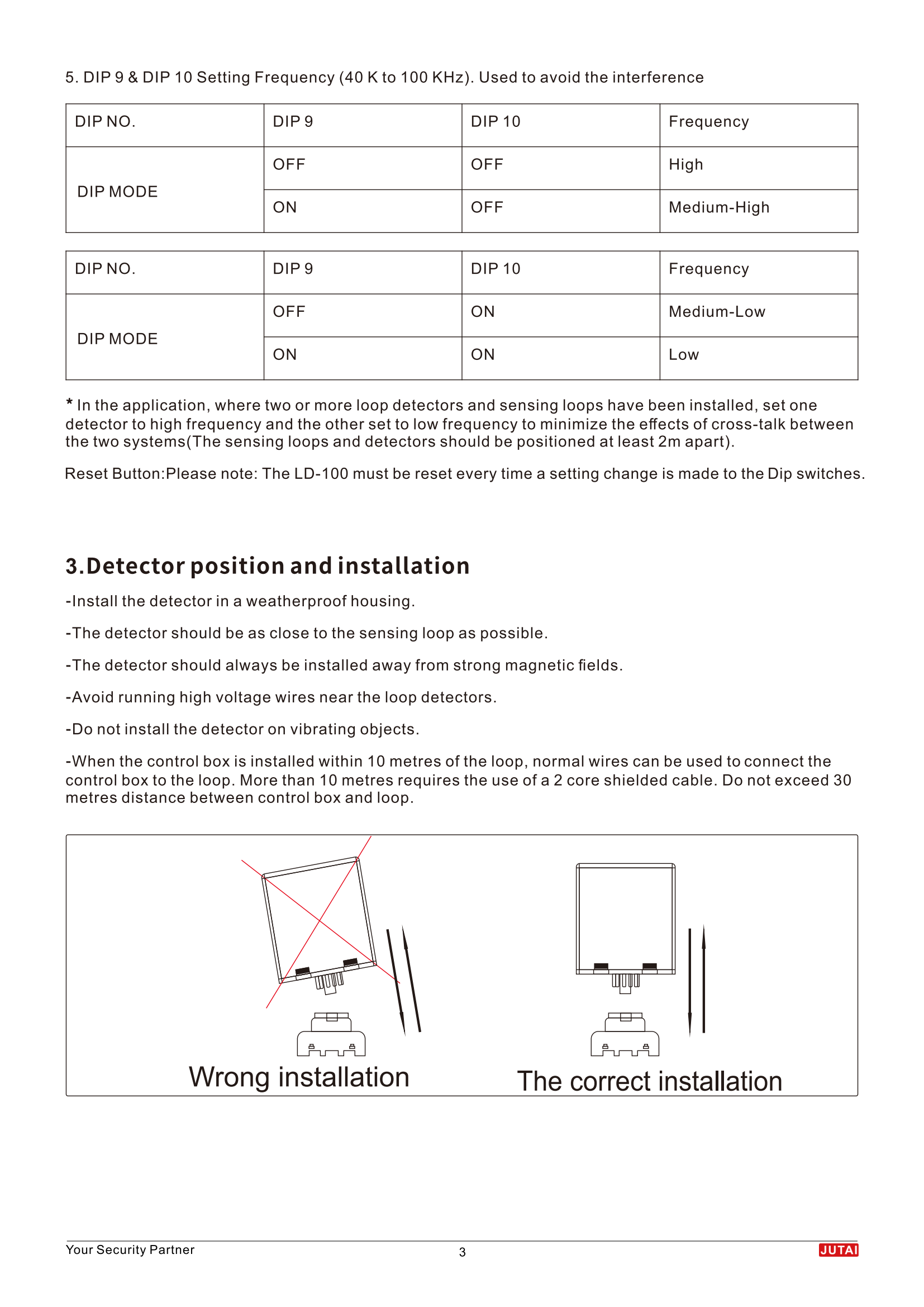

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to
avoid the interference

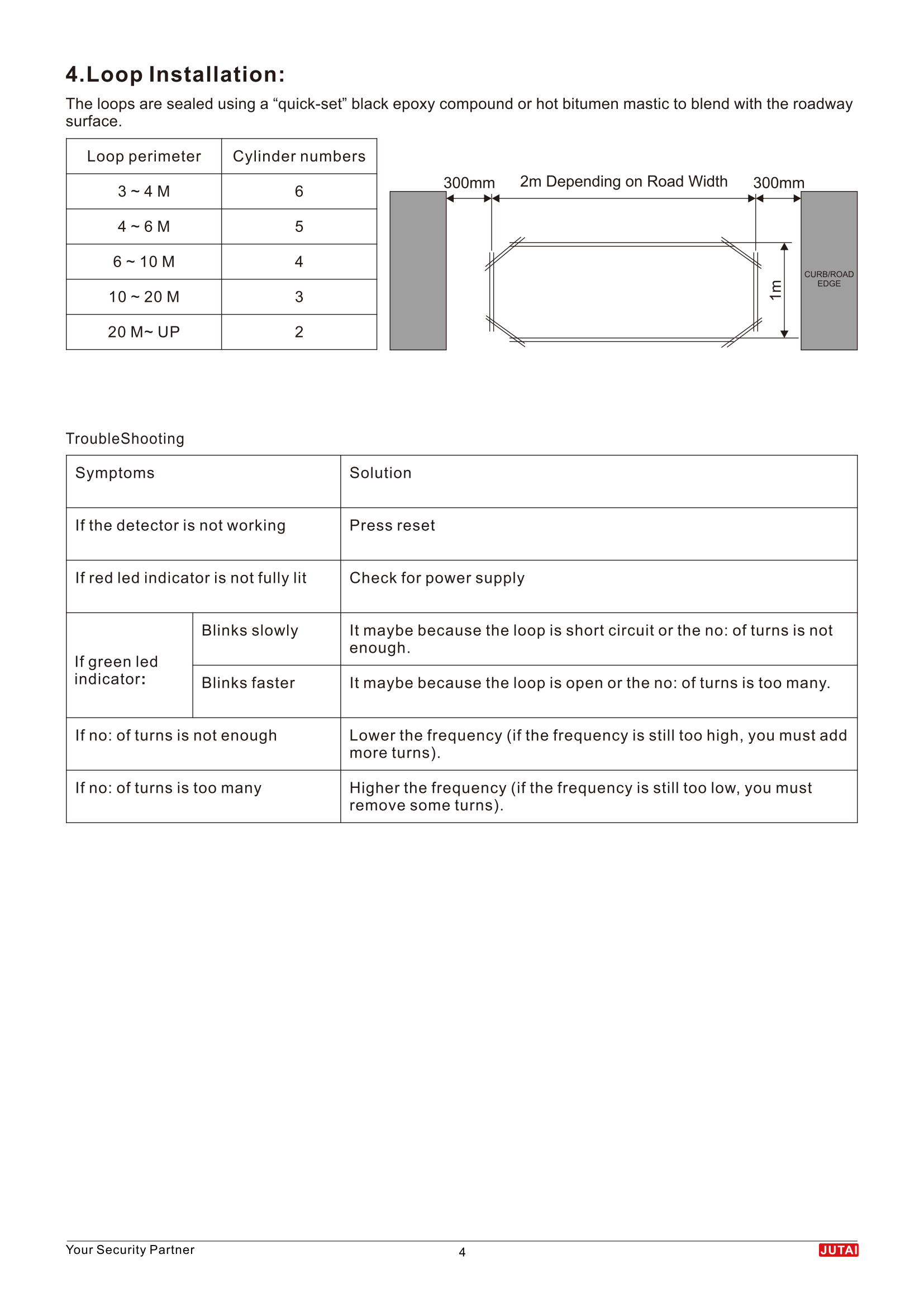

Loop Installation:
Trouble Shooting:

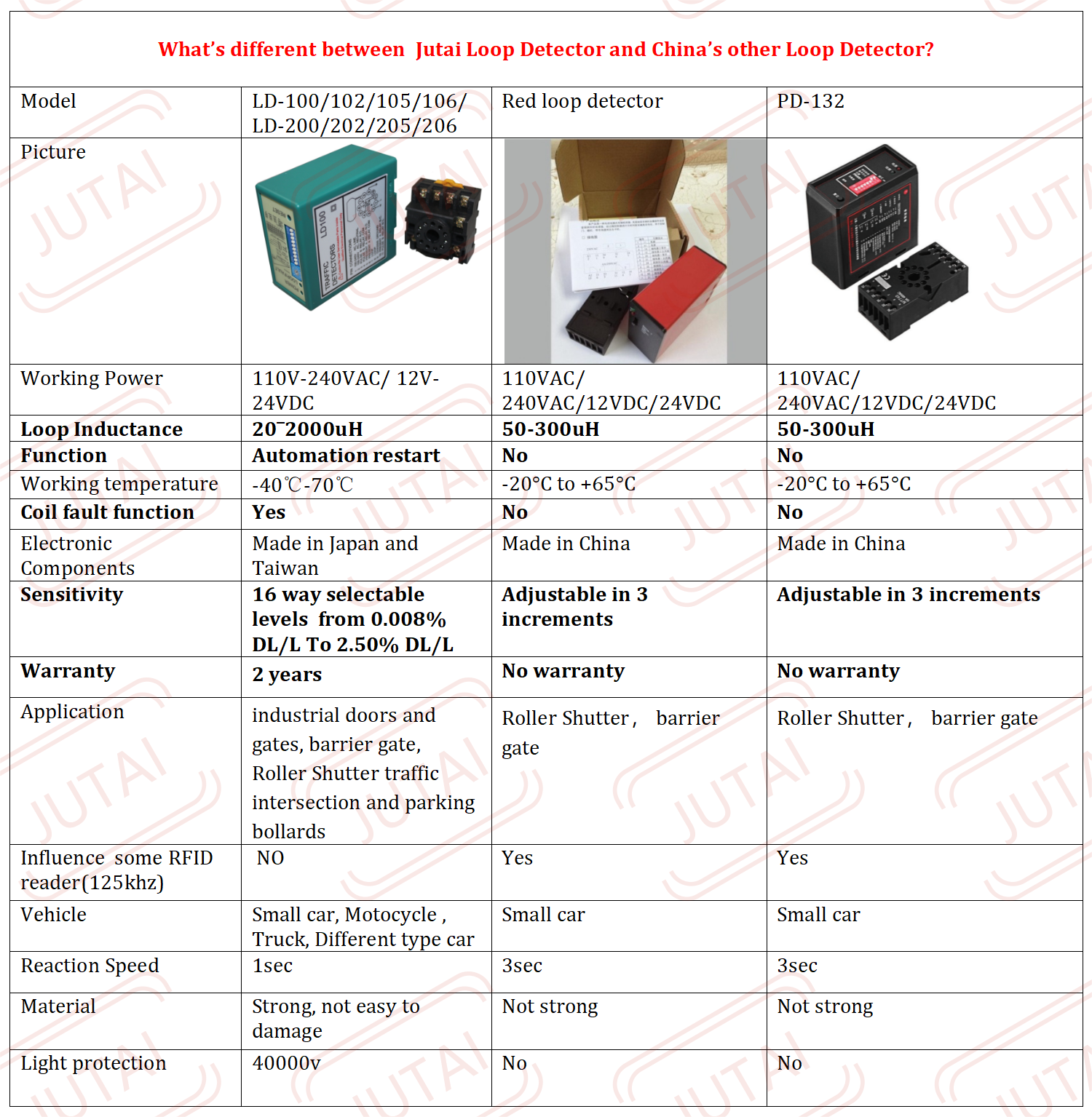

Compared to other brands

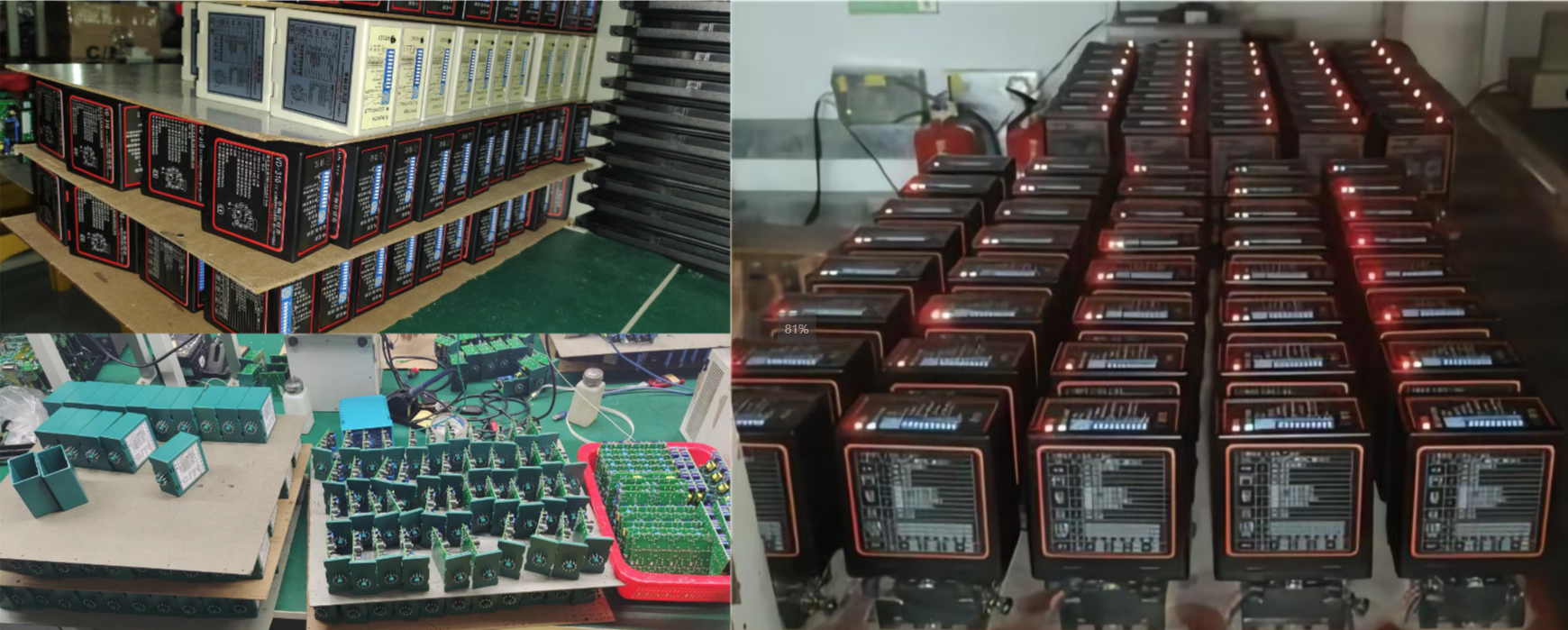

Mass Production:
Our production line ensures efficient mass production, rigorous
quality control, and thorough pre-shipment testing to deliver Loop
detector products of the utmost perfection.
LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU
standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU
standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA
standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA
standard)
The JUTAI LD-100 Parking Barrier Gate Loop Detector is a vital
component for modern parking management systems. Its extensive
sensing range, high sensitivity, and robust features like automatic
reset and lightning protection ensure reliable and efficient
operation. Adaptable to various environmental conditions, this loop
detector significantly enhances the functionality and security of
parking barrier gates.
Certification:
| Aspect | Details |
|---|---|
| Overview | Shenzhen Jutai COMM Co., Ltd. is a leading high-tech enterprise specializing in the integration of production, research, development, and sales. |
| Specialization | Our expertise lies in creating innovative security products and integrated systems for access control, parking management, traffic lights, and more, delivering a unified intelligent platform. |
| Expertise | With over a decade of experience, we excel in wireless communication technology, automatic door sensors, and the wholesale distribution of barrier gates. |
| Product Portfolio | Our diverse offerings include:<br>- Automatic door sensors<br>- Microwave radar sensors for automatic doors<br>- Infrared sensor series<br>- Loop detectors<br>- Wireless RFID card readers<br>- Barrier gates<br>- Parking barrier gates |
| Integration and Solutions | JUTAI products are meticulously designed to integrate seamlessly with access control systems, providing comprehensive solutions for access control, parking management, and parking guidance systems. |
| Commitment | We are dedicated to exceeding customer expectations through continuous innovation, superior product quality, and exceptional customer service. Our goal is to build safer, smarter, and more efficient environments. |
Join JUTAI in advancing technology and enhancing safety with our pioneering products. We strive to be your trusted partner in creating and promoting your brand, backed by our strong R&D capabilities and the ability to deliver customized solutions.
|
110-240V Single Channel Boom Barrier Loop Detector 40000V Lightning Protection
Four Step Switch Selectable 20-80KHz Loop Detector For Gate Barrier
Loop Detectors For Automated Gates 20-2000uH Lightning Protection Auto Reset
1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable
110-240V Single Channel Delay Protection Function Induction Loop Detector Sensor 2000uH
Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety
Single Channel Barrier Gate Loop Detector 110-240V High Sensitivity Can Detect Any Vehicle Model
LD-102 Single Channel Vehicle Loop Detector
Traffic Inductive Vehicle Loop Detector Sensor
