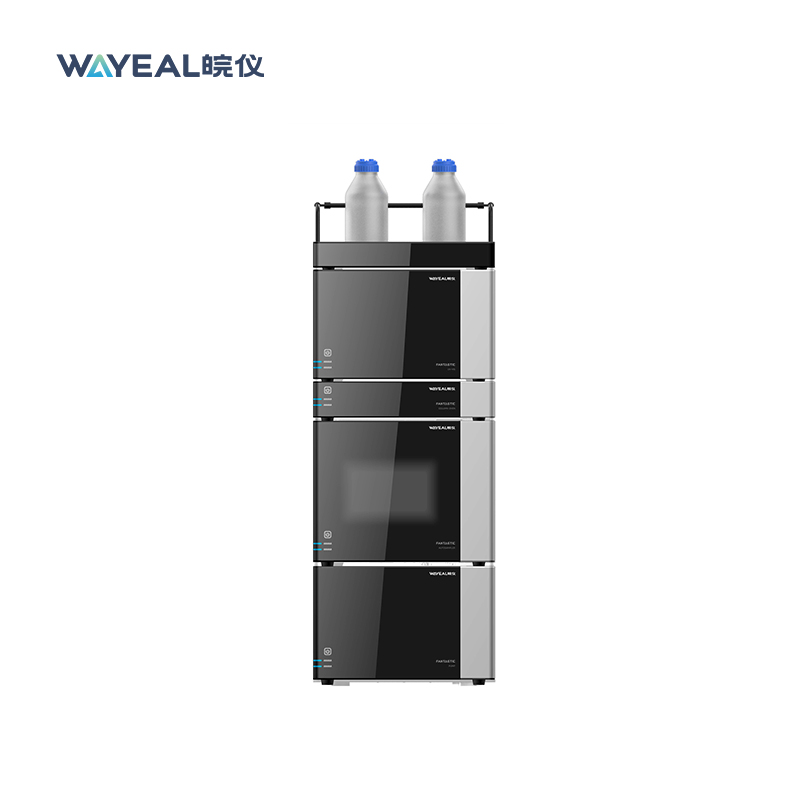

Wayeal UHPLC Ultra High Performance Liquid Chromatography Instrument with DAD ELSD FLD Detector
Introduction of UHPLC Liquid Chromatography Instrument
The ultra high performance liquid chromatography instruments is able to perform the work of multiple HPLCs in less time, with higher separation, less reagent consumption, smarter and more convenient, greatly reducing the cost of managing the instrument.The high precision UHPLC delivery unit, low system diffusion volume, needle-in-flow path design, ultra-low injection cycle time and extremely low cross-contamination provide the UHPLC with higher speed, sensitivity and separation.
Parameters of UHPLC Liquid Chromatography Instrument
Wayeal UHPLC Ultra High Performance Liquid Chromatography Instrument with DAD ELSD FLD Detector | |
Column Oven | |
Temperature setting range | 20.0-90.0℃ |
Temperature stability | ±0.3℃/h |
Error of temperature setting value | ±0.05℃ |
Autosampler | |
Maximum withstand pressure | 150MPa |
Injection volume range | 0.1~10.0μL |
Injection volume error | ±0.2uL (injection volume 10μL) |
Injection repeatability | <0.3 %RSD |
Linearity | R≥0.999 |
Cross-contamination | <0.001% |
Number of samples | 96 (2*48, 2ml) |
Temperature setting range | 4.0~40.0℃ |
Temperature stability | ±1℃ |
Sampling speed | 15S |
Diode Array Detector | |
Baseline noise | ≤7× 10-6 AU |
Baseline drift | ≤0.9× 10-3 AU/h |
Minimum test concentration | 2×10-9g/ml (naphthalene/methanol) |
Wavelength range | 190~800 nm |
Wavelength indication error | ≤±1 nm |
Wavelength repeatability | ≤ ±0.1 nm |
Performance of UHPLC Liquid Chromatography Instrument
1. Needle-in-flow autosampler with ultra-low injection cycles and
very low cross-contamination.
2. SmartLab CDS and SmartLab Solution chromatography workstation
software
3. Extremely low injection cycle time
4. Ultra-high efficiency column chamber with active preheat
function for extremely fast ramp-up rates
5. Ultra-high efficiency diode array detector with patented
liquid-core waveguide circulation technology for lossless
transmission of optical energy
Application of UHPLC Liquid Chromatography Instrument
1. Applications in environmental monitoring
Detection of polycyclic aromatic hydrocarbons (from incomplete
combustion of organic fuels); detection of polychlorinated
biphenyls (PCBs); detection of pesticide residues
(organophosphorus, chlorine, herbicides, etc.); detection of
phenols and amines (industrial wastewater from chemicals, fuels,
pharmaceuticals, etc.)
2. Applications in the pharmaceutical industry
Drug identification; impurity detection (raw materials,
intermediates, by-products, etc.); content determination; chiral
separation; pharmacokinetic studies, clinical blood concentration
and other testing is very widely used
![]() |
