HPLC Chromatography Machine Liquid Chromatography Instrument 220V

Categories Liquid Chromatography Instrument
Brand Name: Wayeal
Model Number: LC3202
Certification: ISO, CE
Place of Origin: Anhui, China
MOQ: 1
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 20 Pieces Per Month
Delivery Time: 30 days
Packaging Details: Wooden Case
Product name: High Performance Liquid Chromatography Instrument
Color: White, Blue
Qualitative Repeatability: ≤ 0.2%
Quantitative Repeatability: ≤ 0.4%
Flow rate range: 0.0001-10.000mL/min
Detector: UVD/DAD/FLD/ELSD/RID
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

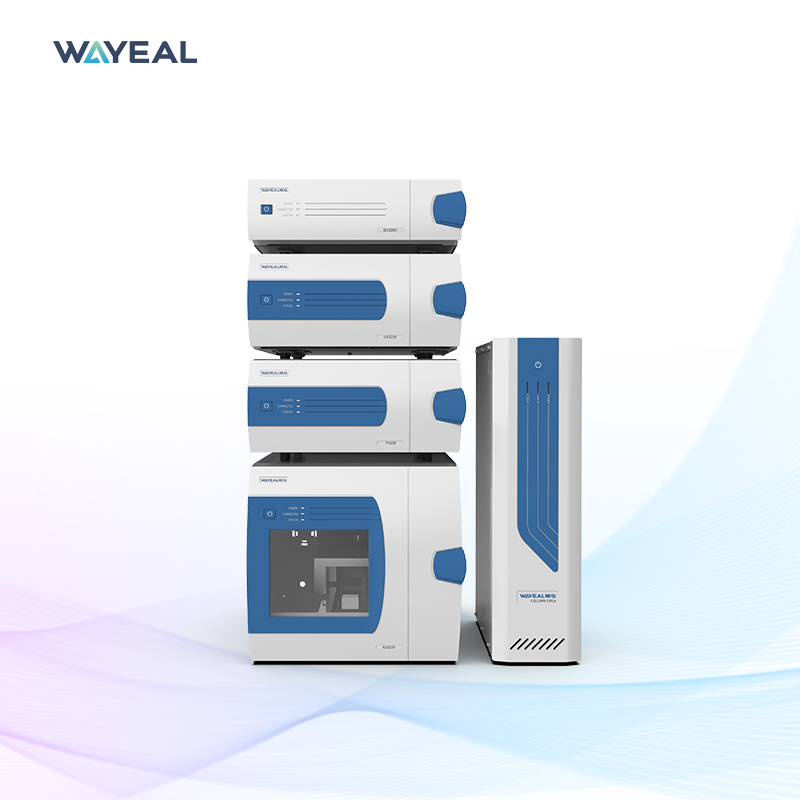

HPLC Chromatography Machine Liquid Chromatography Instrument 220V

Laboratory Analytical hplc Machine High Performance Liquid Chromatography Instrument


Introduction of Liquid Chromatography Instrument

High performance liquid chromatograph (HPLC) is an instrument based on the principle of high performance liquid chromatography, which is widely used in food, medicine, environment, agriculture and scientific research area.


Parameters of Liquid Chromatography Instrument

Manufacturer:Wayeal
Product Name:Liquid Chromatography Instrument
Working Power Supply220V, 50Hz
Ambient Temperature10~40°C
Relative Humidity20~85%
Qualitative Repeatability≤0.2%
Quantitative Repeatability≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range0.001~10.000mL/min
Setting Step0.001mL/min
Pressure Range0~42MPa
Pressure Pulsation0.1MPa
Flow Rate Set Error±0.2%
Flow Rate StabilityRSD≤0.06%
Gradient Error±1%
Column Oven
Temperature Control Range4~85°C
Temperature Stability±0.02°C
Temperature Setting Resolution0.1°C
Autosampler
Injection Volume Repeatability<0.5%RSD
Linearity>0.9999
Cross Contamination<0.002%
Injection Volume Accuracy Error±1%
Sample Positions120
Injection Volume1~100μL
UV Detector
Baseline Noise≤2.0*10-6Au
Baseline Drift≤1*10-5Au/h
Mini Detection Concentration≤3.0*10-9g/mL (naphthalene/methanol)
Spectral Range188~900nm
Wavelength Error≤±0.1nm
Wavelength Repeatability≤±0.1nm
Linearity Range≥103
DA Detector
Baseline Noise≤4*10-5Au
Baseline Drift≤3*10-5Au/h
Mini Detection Concentration≤2*10-8g/mL
Spectral Range190~800nm
Wavelength Error≤±0.1nm
Wavelength Repeatability≤±0.1nm
Linearity Range≥ 104
ELS Detector
Baseline Noise≤ 0.0037mV
Baseline Drift≤ 0.0026mV/30min
Evaporation Gas Flow Range(0 ~ 3) SLM
Atomization Temperature RangeRoom temperature ~ 90℃
Evaporation Temperature RangeRoom temperature~110℃
Detection Chamber Temperature RangeRoom temperature~60℃
Input Air Pressure(4 ~ 7) bar
FL Detector
Baseline Noise≤ 5×10-6 FU
Baseline Drift≤ 2 × 10-5 FU/30min
Spectral Range(200 ~ 650) nm
Wavelength Error± 0.1 nm
Linearity Range≥ 104
RI Detector
Detection Range0.25 ~ 512 μRIU
Linearity Range≥ 600 μRIU
Response Time0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume8μL

Performance of Liquid Chromatography

1. Mainstream split design and perfect system detection function to meet most of the detection needs
2. Customized acetonitrile resistant check valve
3. In-line plunger rod cleaning function as standard
4. France imported 1800l/mm grating
5. Fully intelligent reverse control chromatography workstation
