High Efficiency HPLC Liquid Chromatography Machine In Pharmaceutical 220V 50Hz

Categories Liquid Chromatography Instrument
Brand Name: Wayeal
Model Number: LC3200
Certification: ISO, CE
Place of Origin: Anhui, China
MOQ: 1
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 40 Pieces Per Month
Delivery Time: 30 days
Packaging Details: Wooden Case
Product name: HPLC High Efficiency High Performance Liquid Chromatography Instrument
Power requirements: 220V, 50Hz
Ambient temperature: 10-40℃
Relative Humidity: 20~85%
Injection Volume Precision: 1~100μL
Detector: UVD/DAD/FLD/ELSD/RID
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

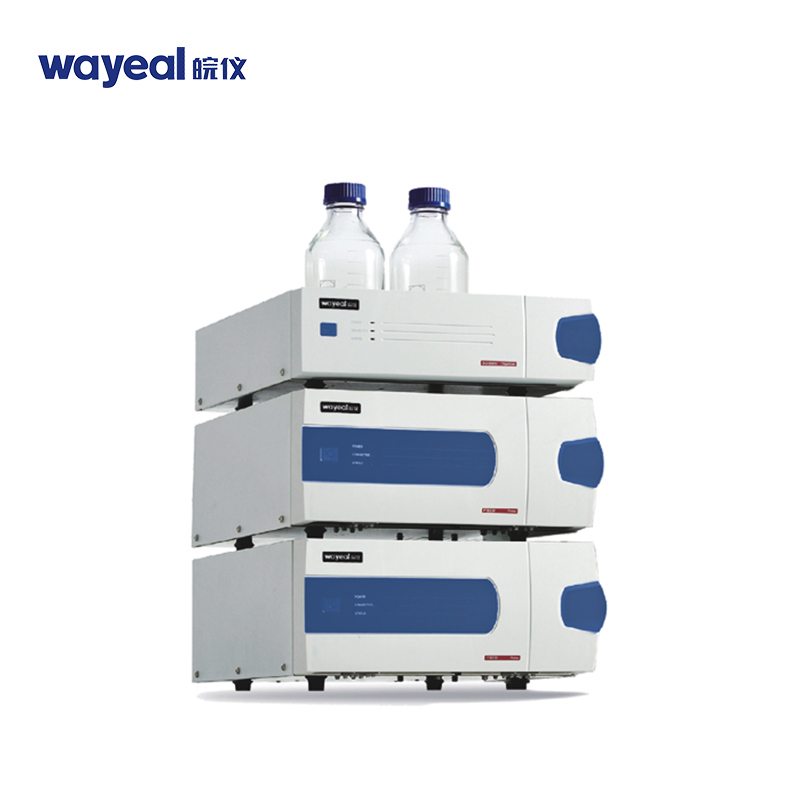

High Efficiency HPLC Liquid Chromatography Machine In Pharmaceutical 220V 50Hz

HPLC High Efficiency High Performance Liquid Chromatography Instrument


Introduction of High Performance Liquid Chromatography Instrument

Wayeal LC3000 series high performance liquid chromatograph features high operation stability, high detection sensitivity and modular designing. It has complete system control and detection functions to meet most HPLC applications in pharmaceutical, chemical, environmental, food, laboratories and other fields.


Technical Data of High Performance Liquid Chromatography Instrument

Manufacturer:Wayeal
Product Name:Liquid Chromatography Instrument
Working Power Supply220V, 50Hz
Ambient Temperature10~40°C
Relative Humidity20~85%
Qualitative Repeatability≤0.2%
Quantitative Repeatability≤0.4%
High Pressure Constant Flow Pump
Flow Rate Range0.001~10.000mL/min
Setting Step0.001mL/min
Pressure Range0~42MPa
Pressure Pulsation0.1MPa
Flow Rate Set Error±0.2%
Flow Rate StabilityRSD≤0.06%
Gradient Error±1%
Column Oven
Temperature Control Range4~85°C
Temperature Stability±0.02°C
Temperature Setting Resolution0.1°C
Autosampler
Injection Volume Repeatability<0.5%RSD
Linearity>0.9999
Cross Contamination<0.002%
Injection Volume Accuracy Error±1%
Sample Positions120
Injection Volume1~100μL
UV Detector
Baseline Noise≤2.0*10-6Au
Baseline Drift≤1*10-5Au/h
Mini Detection Concentration≤3.0*10-9g/mL (naphthalene/methanol)
Spectral Range188~900nm
Wavelength Error≤±0.1nm
Wavelength Repeatability≤±0.1nm
Linearity Range≥103
DA Detector
Baseline Noise≤4*10-5Au
Baseline Drift≤3*10-5Au/h
Mini Detection Concentration≤2*10-8g/mL
Spectral Range190~800nm
Wavelength Error≤±0.1nm
Wavelength Repeatability≤±0.1nm
Linearity Range≥ 104
ELS Detector
Baseline Noise≤ 0.0037mV
Baseline Drift≤ 0.0026mV/30min
Evaporation Gas Flow Range(0 ~ 3) SLM
Atomization Temperature RangeRoom temperature ~ 90℃
Evaporation Temperature RangeRoom temperature~110℃
Detection Chamber Temperature RangeRoom temperature~60℃
Input Air Pressure(4 ~ 7) bar
FL Detector
Baseline Noise≤ 5×10-6 FU
Baseline Drift≤ 2 × 10-5 FU/30min
Spectral Range(200 ~ 650) nm
Wavelength Error± 0.1 nm
Linearity Range≥ 104
RI Detector
Detection Range0.25 ~ 512 μRIU
Linearity Range≥ 600 μRIU
Response Time0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec;
Cell Volume8μL

Characteristics of High Performance Liquid Chromatography Instrument

1. Full temperature range column oven with air bath and solvent preheating design provide constant temperature to ensure high repeatability result.

2. Patented double-stage suspension drive technology and on-line plunger washing make the seal enduring.

3. High precision syringe pump with micro-step drive brings excellent linear and quantitative repeatability.

4. Needle-in-needle and air sweeping design achieve extremely low carryover.
