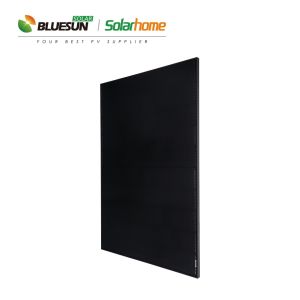

Bluesun Half Cell Shingled Solar Panel 410w 415W All Black Solar Panel

Categories Shingled Solar Panel
Brand Name: Bluesun
Model Number: BSM415PM5-60SB
Place of Origin: Anhui, China
Cell size: 166mmx166mm
Type: PERC, Half Cell, All Black, overlap
Panel Dimensions: 1719*1140*35mm
Panel Efficiency: 20.9%
Product name: overlap solar panels
Application: Solar Power System
solar panel: Mono 410w
Weight: 23kg
Warranty: 25 Years Output Power Guarantee, 12YEAR
Solar cell: mono 166*166mm
Certificate: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Junction Box: IP67 Rated
Aluminium alloy frame: Silvery or black
TPT back sheet: White or black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bluesun Half Cell Shingled Solar Panel 410w 415W All Black Solar Panel

Products Description
Shingled Module Technology
Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Product Paramenters
Electrical Characteristics
Model
BSM385PM5 -60SB
BSM390PM5 -60SB
BSM395PM5 -60SB
BSM400PM5 -60SB
BSM405PM5 -60SB
BSM410PM5 -60SB
Max Power(Pmax) [W]
385
390
395
400
405
410
Open Circuit Voltage(Voc) [V]
46.2
46.3
46.3
46.4
46.5
46.6
Short Circuit Current(lsc) [A]
10.82
10.87
10.92
10.97
11.02
11.07
Max Power Vdtage(Vmp) (VJ
38.4
38.5
38.5
38.6
38.7
38.8
Max Power Currentflmp) [A]
10.03
10.13
10.26
10.36
10.47
10.57
Module Efficiency [%]
19.6
19.9
202
20.4
20.7
20.9
Power Tolerance
0-5W
Max System Voltage
1000V/1500V/DC(IEC)
Max Series Fuse Rating
20A
Operating Temperature
-40 °C to + 85 C
STC
Irradiance 1000W/m2, cell temperature 25C, AM1.5
Advantages Of Shingled Module
Advantages
*Under the load of IEC 5400Pa, shingled has no new micro-cracks, although both shingled module and half-cell module passed the test(attenuation < 5%).
*High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
Payment





Payment Term


T/T
EXW
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container

We welcome use Trade Assurance, you'll enjoy:

100% product quality protection

100% on-time shipment protection

100% payment protection for your covered amount

Certifications
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers,if you want to know more information,please feel free to contact us,thanks!
