Name: Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable
Brand: DONGXING
Price: 6000 USD

Product Details
Company Profile

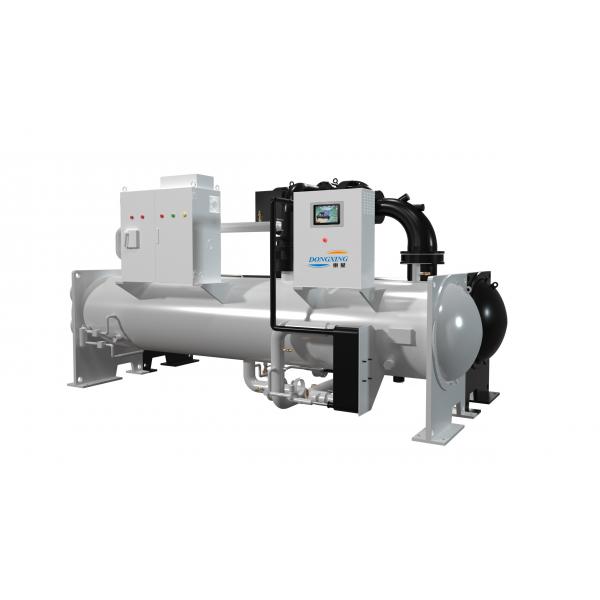

Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable

State-of-the-Art Magnetic Levitation Chiller for Energy-Saving
Cooling Solutions(150RT-3000RT)

Magnetic levitation chillers offer several remarkable advantages.
First, they eliminate mechanical friction by using magnetic
bearings to levitate the compressor shaft, reducing energy
consumption by up to 30% compared to traditional models. This also
extends the lifespan of key components, as there’s no need for oil
lubrication, eliminating oil - related maintenance costs and
potential contamination risks.​

These chillers feature high - precision variable - speed control,
enabling seamless adjustment of cooling capacity according to real
- time load demands. As a result, they maintain stable cooling
performance while optimizing energy efficiency, ideal for both
commercial buildings and industrial applications.​

Moreover, their compact size and quiet operation enhance
installation flexibility and user comfort. With a smaller
footprint, they fit into limited spaces, and the noise level is
typically below 70 decibels, minimizing environmental disruption.
Overall, magnetic levitation chillers provide an energy - saving,
reliable, and user - friendly cooling solution.

Magnetic levitation variablefrequency water chiller-stand-alone

Model:DCWV
A125
A150
A200
A250
A300
A350
A400
A450
A500
A600
A700
A800
A900

refrigerating capacity
kW
440
527
717
909
1055
1250
1407
1590
1760
2110
2465
2815
3165

Input power
kW
72
86
112
144
167
194
213
242
262
320
376
433
492
COP
Full load
efficiency COP
kW/kW
6.11
6.13
6.40
6.31
6.32
6.44
6.60
6.57
6.72
6.59
6.56
6.50
6.43
kW/RT
0.58
0.57
0.55
0.56
0.56
0.55
0.53
0.54
0.53
0.53
0.54
0.54
0.55
Condenser

Water flow
m³/h
76
105
143
181
210
248
279
315
348
418
489
559
629
Water pressure drop
kPa
70
75
85
85
85
85
80
80
80
85
85
85
85
Water pipe intertace
DN
100
150
200
200
200
200
250
250
250
250
250
300
300
Evaporator

Water fow
m³/h
88
91
123
151
181
215
242
273
303
363
424
484
544
Waterpressure drop
kPa
65
70
80
80
80
80
60
60
60
80
80
80
80
Water pipe intertace
DN
100
150
200
200
200
200
200
200
200
250
250
300
300
Exterior dimension
A(long)
mm
3000
3000
3950
3950
4200
4200
4570
4570
4570
4850
4850
5000
5000
B(wide)
mm
1800
1800
1650
1650
2250
2250
2400
2400
2400
2500
2500
2650
2650
C(High)
mm
2200
2200
2200
2200
2300
2300
2600
2600
2600
2600
2600
2750
2750
Mounting dimensions
D
mm
2344
2344
3144
3144
3144
3144
3448
3448
3448
3750
3750
3900
3900
E
mm
1100
1100
1270
1270
1390
1390
1800
1800
1800
1800
1800
2000
2000
Transport weight
kg
4500
4800
5400
5800
6100
6500
7000
7500
8000
9000
10000
11000
12000
Operaing weight
kg
4700
5000
5700
6100
6600
7000
7700
8300
8800
10000
11000
12500
13500
Refrigerant fing amount
kg
125
150
200
250
300
350
400
450
500
600
700
800
900


(1)Evaporator:inlet water temperature 12℃,outlet water temperature
7℃
(2)Condenser:inlet water temperature 30℃,outlet water temperature
35℃
(3)The condenser and evaporator are designed for flange connection
of two processes
(4)Applicable refrigerant:R134a
(5)Applicable voltage level:3Φ-380~460V
(6)The standard pressure on the water side of the unit is
1.0MPa,and the working pressure higher than 1.0MPa shall be
indicated when ordering.
(7)Unit conversion:1RT(US refrigeration tons)=3.517kW
The performance parameter table of the unit is subject to change
without notice due to product improvement.

Product Tags:

Energy Saving Magnetic Levitation Chiller

Customizable Magnetic Compressor Chiller

3000RT Magnetic Bearing Chiller

Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Dongxing Refrigeration Electromechanical Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Magnetic Levitation Chiller
Brand Name:	DONGXING
MOQ:	1
Packaging Details:	Plywood case
Delivery Time:	15-30days
Payment Terms:	T/T
Price:	6000-2000000RMB/Set
Refrigerant:	R134a
Compressor Type:	Magnetic Levitation Centrifugal
Control System:	Microprocessor-based controller
Safety Features:	High/Low Pressure Protection, Anti-freezing Protection, Overload Protection
Power Supply:	380-460 V, 3-phase, 50/60 Hz
Certifications:	CE, UL, CSA, ISO
Operating Temperature:	5-35°C
Warranty:	1 year
Efficiency:	Up to 40% more efficient than traditional chillers
Cooling Capacity:	1000-5000 kW
Display:	LCD Touch Screen
Dimensions:	Customizable
Weight:	Varies depending on cooling capacity
Compressor Speed:	Variable Speed
Noise Level:	Less than 70 dB

Model:DCWV		A125	A150	A200	A250	A300	A350	A400	A450	A500	A600	A700	A800	A900
refrigerating capacity	kW	440	527	717	909	1055	1250	1407	1590	1760	2110	2465	2815	3165
Input power	kW	72	86	112	144	167	194	213	242	262	320	376	433	492
COP Full load efficiency COP	kW/kW	6.11	6.13	6.40	6.31	6.32	6.44	6.60	6.57	6.72	6.59	6.56	6.50	6.43
COP Full load efficiency COP	kW/RT	0.58	0.57	0.55	0.56	0.56	0.55	0.53	0.54	0.53	0.53	0.54	0.54	0.55
Condenser
Water flow	m³/h	76	105	143	181	210	248	279	315	348	418	489	559	629
Water pressure drop	kPa	70	75	85	85	85	85	80	80	80	85	85	85	85
Water pipe intertace	DN	100	150	200	200	200	200	250	250	250	250	250	300	300
Evaporator
Water fow	m³/h	88	91	123	151	181	215	242	273	303	363	424	484	544
Waterpressure drop	kPa	65	70	80	80	80	80	60	60	60	80	80	80	80
Water pipe intertace	DN	100	150	200	200	200	200	200	200	200	250	250	300	300
Exterior dimension
A(long)	mm	3000	3000	3950	3950	4200	4200	4570	4570	4570	4850	4850	5000	5000
B(wide)	mm	1800	1800	1650	1650	2250	2250	2400	2400	2400	2500	2500	2650	2650
C(High)	mm	2200	2200	2200	2200	2300	2300	2600	2600	2600	2600	2600	2750	2750
Mounting dimensions
D	mm	2344	2344	3144	3144	3144	3144	3448	3448	3448	3750	3750	3900	3900
E	mm	1100	1100	1270	1270	1390	1390	1800	1800	1800	1800	1800	2000	2000
Transport weight	kg	4500	4800	5400	5800	6100	6500	7000	7500	8000	9000	10000	11000	12000
Operaing weight	kg	4700	5000	5700	6100	6600	7000	7700	8300	8800	10000	11000	12500	13500
Refrigerant fing amount	kg	125	150	200	250	300	350	400	450	500	600	700	800	900
