| Categories | Submersible Level Sensor |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | MH-A16 |
| Certification: | ISO CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 50000 pcs per year |
| Delivery Time: | 5-10 working days |
| Packaging Details: | standard export package |
| Full scale: | 5m ,8m,10m |
| Unusable area: | ≤0.4~0.5m |
| Max measure error: | 0.25%×full scale |
| Power: | 12-24VDC |
| Power consumption: | <1.5W |
| Output signal: | 4~20mA (other output is optional) |
| Material: | ABS |
| Display panel: | OLED |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

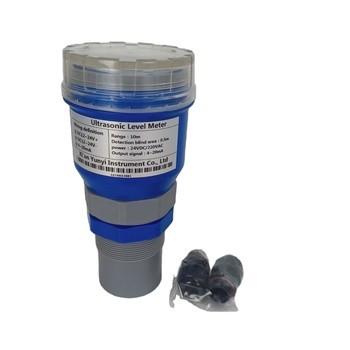

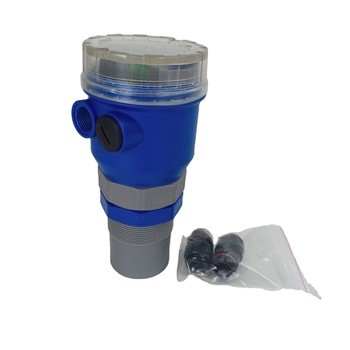

Brief introduction
Ultrasonic level meter realizes high digital, communication between
machine and human. The CPU applies import industry monolithic
integrated circuit, digital temperature compensation and wide
voltage input. You can select analog, switch or RS485 serial signal
output. Owning the advantage that there is no need to contact the
measured medium; it could supply more precise and longer work life.
Applications:
Proximity Detection
Robot range finder
Sedimentation pool
Coal washing process
Obstacle detection, collision avoidance
General-purpose distance detection
Wastewater treatment
Features
High precise
Non-invasive
Strong anti-interference
Automatic temperature compensation
Selectable output way
Substantially improved long-term stability
Specification:
| Full scale | 5m ,8m,10m |
| Unusable area | ≤0.4~0.5m |
| Max measure error | 0.25%*full scale |
| Power | 12-24VDC |
| Power consumption | <1.5W |
| Output signal | 4~20mA (other output is optional) |
| Max load impedance | 700Ω |
| Display panel | OLED |
| Material | ABS |
| Fix model | M60X2 or ¢61MM |
| Dimension | Φ92mm*198mm*M60 |
| Protection degree | IP65 |
| Humidity | 0 to 95% |
| Ambient temperature | -10ºC~60ºC |
| Ambient pressure | normal condition |
| Anti explosion sign | Exia II BT4 Gb(optional) |
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
|
