| Brand Name: | yunyi |
| Model Number: | YD322-B |
| Certification: | ce |
| Place of Origin: | china |
| MOQ: | 1 |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000pcs/month |
| Delivery Time: | 10days |
| name: | Diesel Fuel Tank Level Gauge Diesel Fuel Tank Water Level Indicator Sensor |
| Measurement object: | liquid level of water, oil, paste |
| Measuring range: | Diffuse silicon, IP68 |
| Measure type: | input, submersible type |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

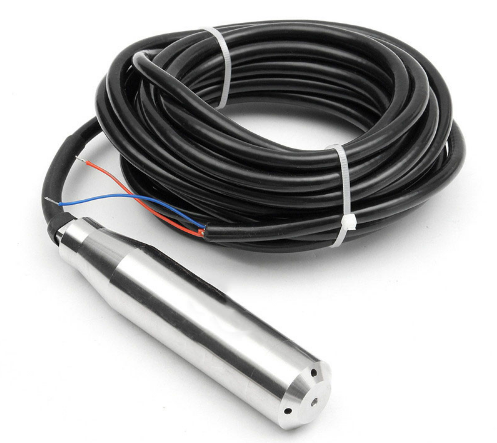

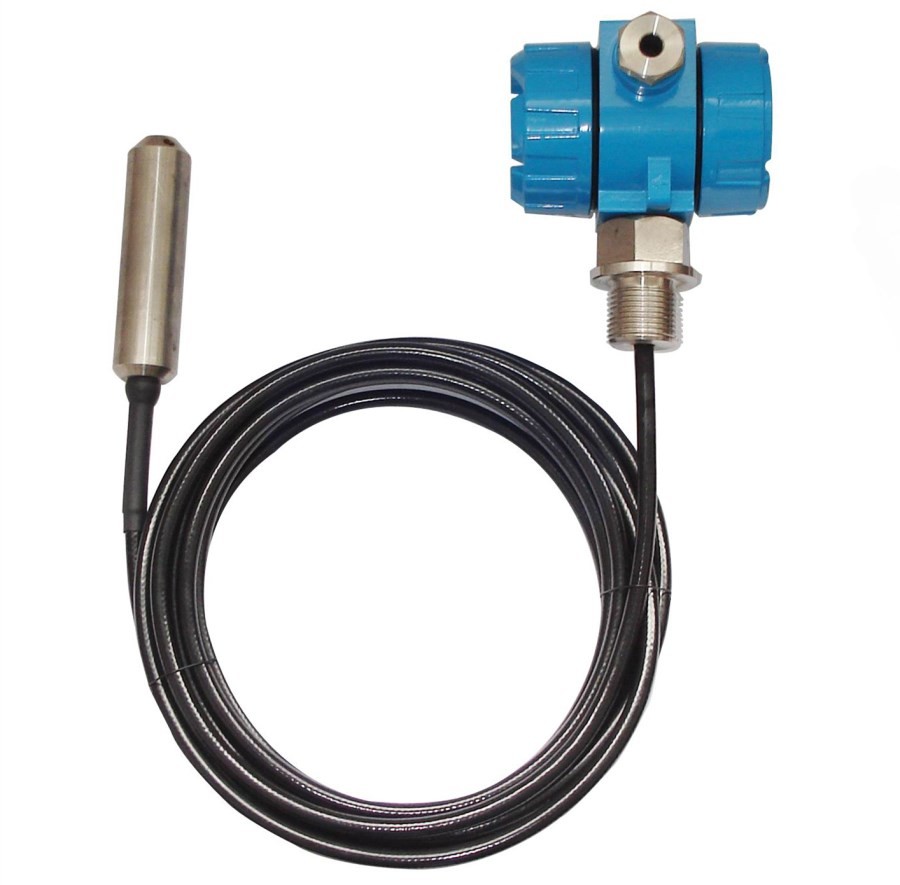

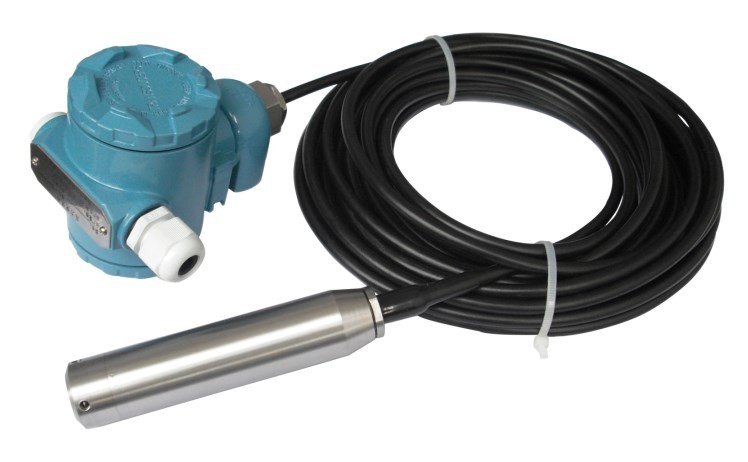

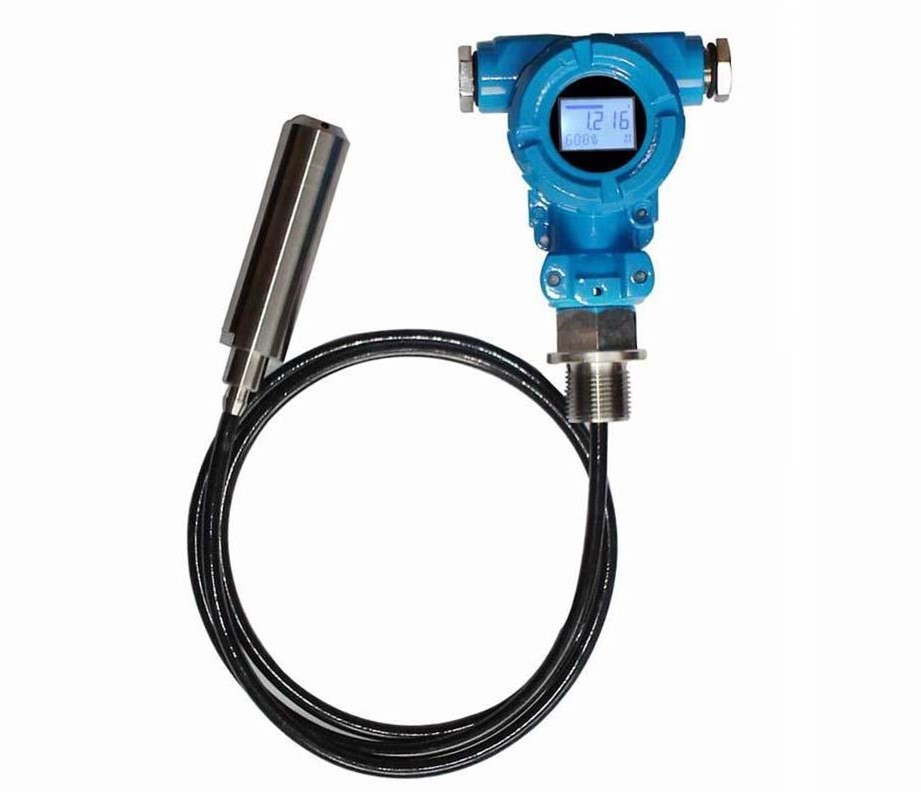

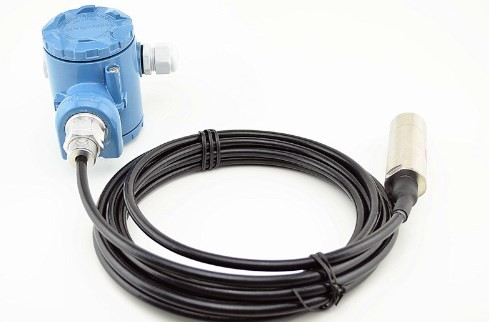

Diesel Fuel Tank Level Gauge Diesel Fuel Tank Water Level Indicator Sensor is intelligent submersible transmitter, this water level sensor consist of isolation diaphragm oil-filled sensor and high-powered MCU. The water level sensor can correct the linearity and compensate temperature drift, have digital output with HART protocol and analog output. The liquid level gauge with characteristic of high precision, good stability. This submersible level sensor can achieve two-way communication during diagnosing process at the scene. This submersible level transmitter apply in city's power supply, water conservancy, metallurgy, petrifaction and so on.
Item | diesel fuel tank level gauge / water level gauge / tank water level
indicator |
Range | 0~1m...~200m |
Proof pressure | ≤1.5X rated range |
Accuracy | ±0.1% ±0.25%(Typical) |
Long term stability | ±0.1%F.S/year (>20mH2O) ±10mm(≤20mH2O) |
Operating temperature range | -20℃~80℃ |
Storage temperature range | -40℃~120℃ |
Power supply | 12~30VDC |
Output signal | Analog output:4~20mA 0~10/20mA 0/1~5VDC |
Housing material | Aluminium casting, 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O ring | Fluororubber |
Cable | Polyethylene ventilate cable |
Insulation resistance | 100MΩ 100VDC |
Protection | IP65 |
Marking | ExiaIICT6 |
Wide measurement range,
Protection: IP68
Various output signal
Multiple protection
Good anti-leakage performance
Good anti-electromagnetic interference.
Marking: ExiaIICT6
Compatible with 316LSS,noncorrosive liquids.
Apply in Petroleum industry, chemical industry, generating
station, water supply, hydrology etc. those need to measure
&control liquid's level.
|
