Categories | Fiber Optic Cable |
---|---|

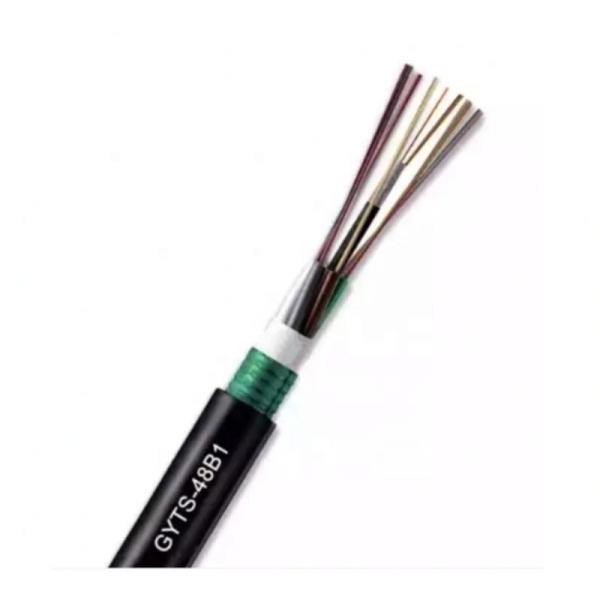

Model Number: | Fiber GYTS Cable |
Type: | Fiber GYTS Cable |
Place of Origin: | Zhejiang, China |
Brand Name: | oem |
Number of Conductors: | ≥ 10 |
Model NO.: | Fiber GYTS Cable |
Core: | Multicore GYTS Cable |
Certification: | RoHS, CE, ISO9001 |
Sheath Material: | PVC or LSZH GYTS Cable |
Fiber Mode: | G657A/G652D GYTS Cable |
Cable Structure: | Bow Type Tight Buffer GYTS Cable |
Fiber Count: | 12~144cores GYTS Cable |
Reinforcer: | FRP/Steel Wire GYTS Cable |
Operating Temperature: | -50 ~ +60 C |
Package: | Drum GYTS Cable |
Packaging Details: | GYTS Cable with drum |
Port: | GYTS Cable From Ningbo |
Supply Ability: | 1000 Kilometer/Kilometers per Month |
MOQ: | 50 kilometers |
Price: | $2.00/kilometers 50-499 kilometers |
Company Info. |
Ningbo Fibconet Communication Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
item | value |
Model Number | outdoor fiber optic GYTS Cable |
Type | Fiber Optic GYTS Cable |
Place of Origin | China |
Zhejiang | |
Brand Name | OEM |
Use | FTTH |
Warranty Time | 20 years |
Network | None |
Model NO. | Aerial Fiber GYTS Cable |
Certification | RoHS, CE, ISO9001 |
Sheath Material | LSZH, HDPE, MDPE GYTS Cable |
Fiber Mode | G652D/G657A GYTS Cable |
Fiber Core | 2-144 Cores GYTS Cable |
Central Strengthen Member | FRP GYTS Cable |
Strength Member | Aramid Yarn GYTS Cable |
Material of Loose Tube | PBT Multi Loose Tubes |
Water Blocking System | Filling Compound/Dry Water Resistant |
Fiber style | Unit | SM G652D | SM G657A1 | SM G657A2 | ||
Condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | ||
Attenuation | dB/km | ≤0.36/0.23 | ≤0.35/0.21 | ≤0.35/0.21 | ||
Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 | |
1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 | ||
Zero dispersion wavelength | nm | 1312±10 | 1312±10 | 1300-1324 | ||
Zero dispersion slope | ps/(nm²×Km) | ≤0.091 | ≤0.090 | ≤0.092 | ||
PMD Maximum Individual Fiber | [ps/√km] | ≤0.2 | ≤0.2 | ≤0.2 | ||
PMD Design Link Value | ps/(nm²×Km) | ≤0.08 | ≤0.08 | ≤0.08 | ||
Fiber cutoff wavelength λc | nm | >=1180,≤1330 | >=1180,≤1330 | >=1180,≤1330 | ||
Cable cutoff wavelength λcc | nm | ≤1260 | .... | .... | ||
MFD | 1310nm | um | 9.2±0.4 | 9.0±0.4 | 9.8±0.4 | |
1550nm | um | 10.4±0.8 | 10.1±0.5 | 9.8±0.5 |
![]() |
