Categories | Fiber Optic Cable |
---|---|

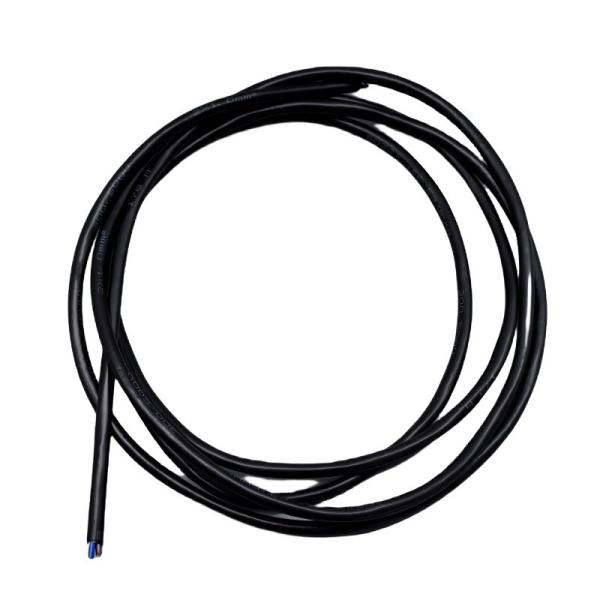

Model Number: | PVC insulated cable |
Type: | PVC insulated cable |
Place of Origin: | Zhejiang, China |
Brand Name: | OEM or Fibconet |
Number of Conductors: | 4 |

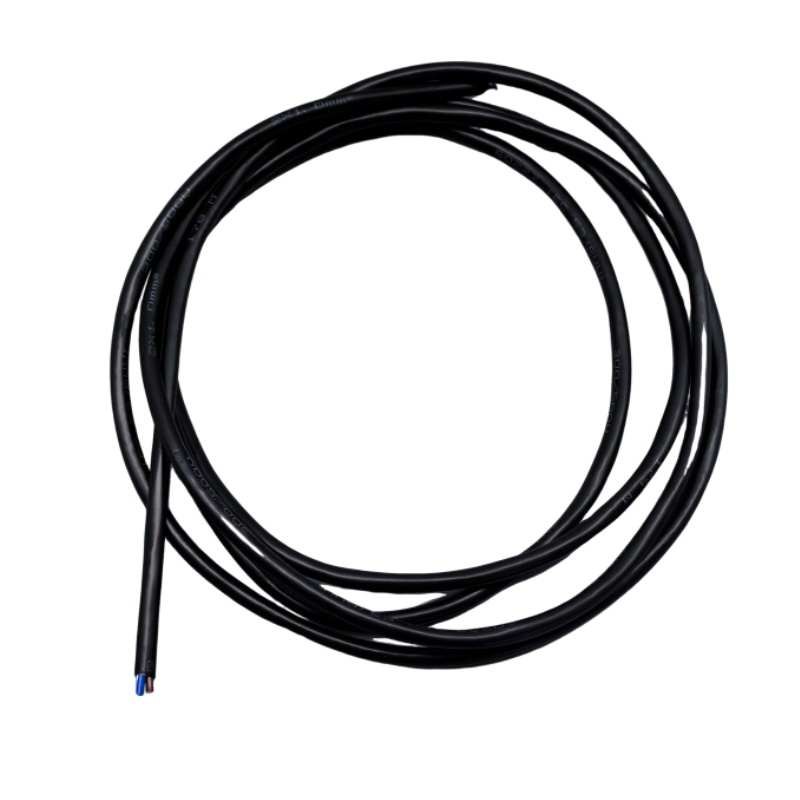

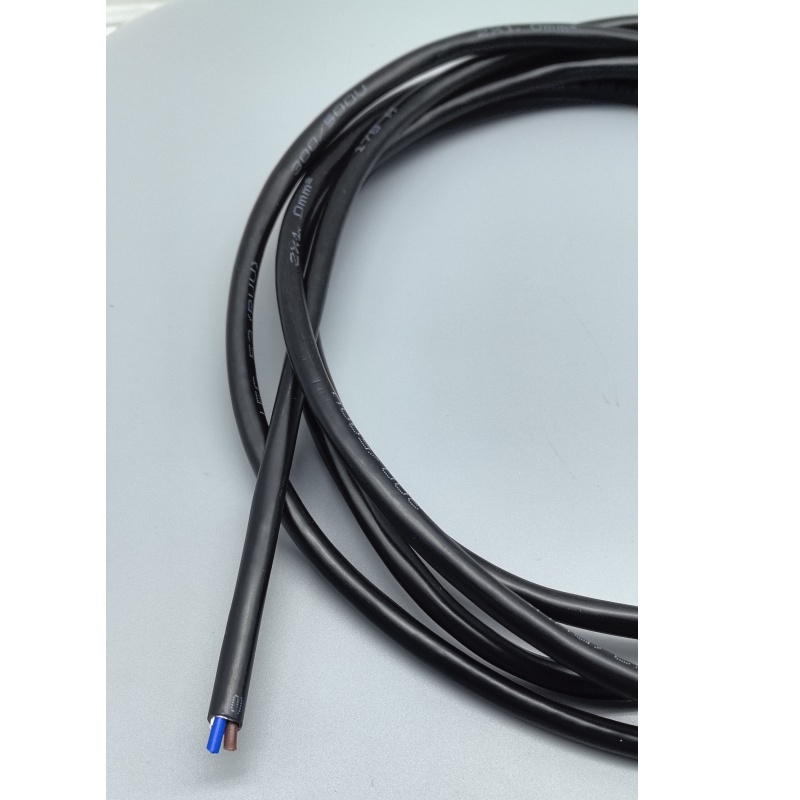

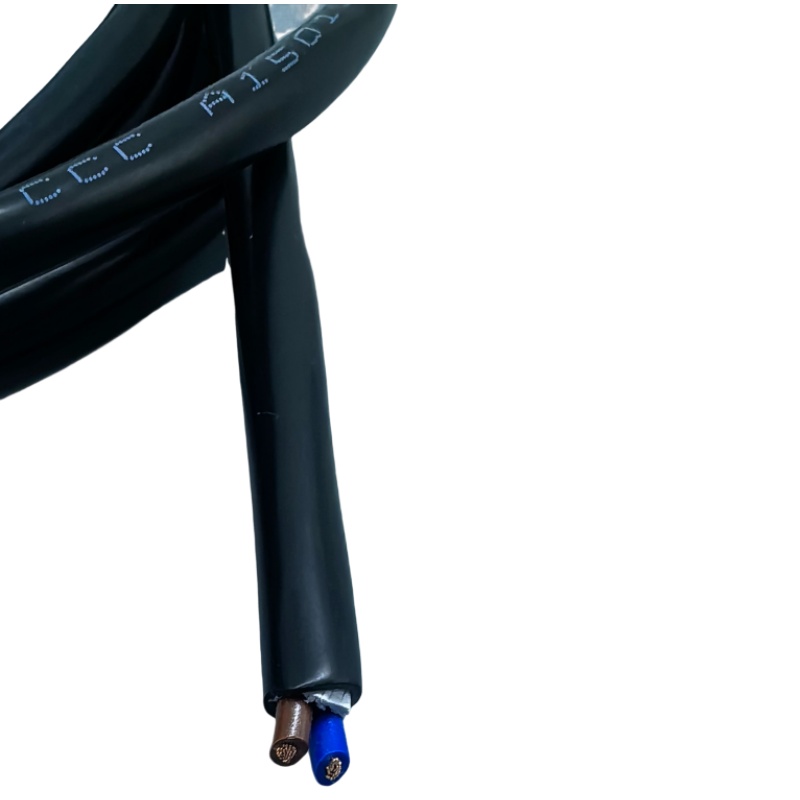

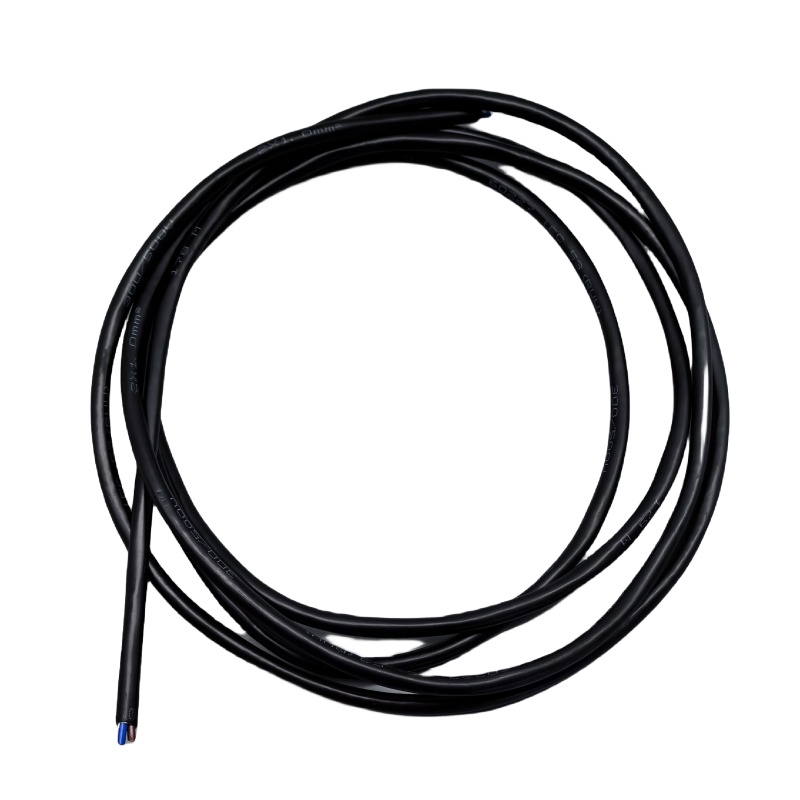

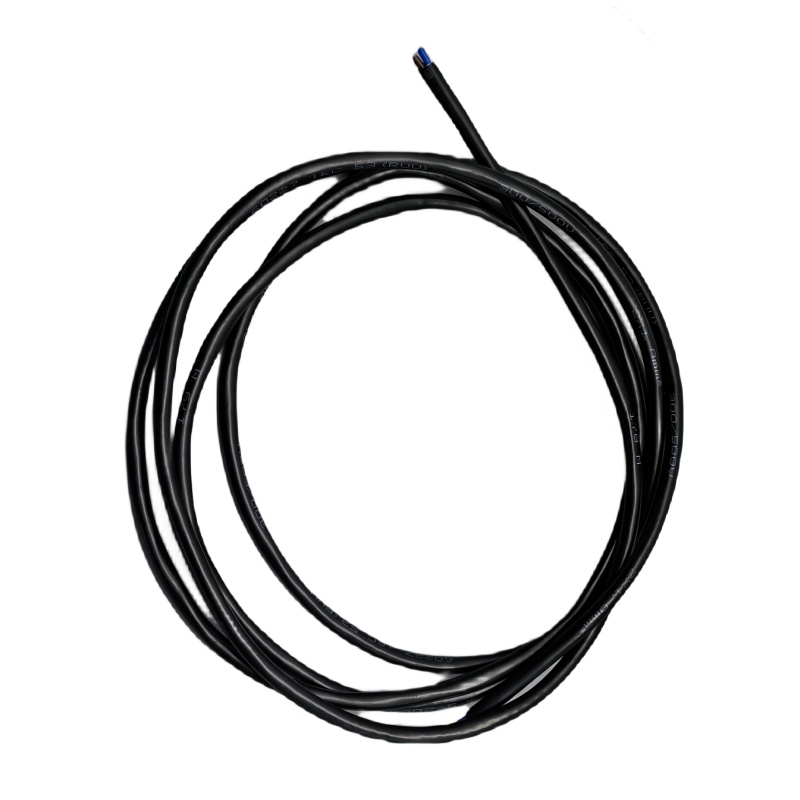

Product Name: | EG657.B3 Easy-to-patch-wall Patch cord |
Model Specification: | RVV2*1.0mm² |
Product standard: | Refer to GB/T 5023.5-2008 |
Conductor Material: | Oxygen Free Copper Wire |
Conductor Diameter: | 0.20±0.01 mm |
Number of strands: | 32±1 Roots |
Insulation Material: | Polyvinyl Chloride PVC |
Colour: | Blue, black, yellow (colour spectrum can be ordered) |
Average thickness of insulation: | 0.7±0.1mm |
Insulation core wire outer diameter: | 2.7±0.2 mm |
MOQ: | 100 kilometers |
Price: | $0.50/kilometers 100-999 kilometers |
Company Info. |
Ningbo Fibconet Communication Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
No. | Structural project | Unit | Requirement | |
Cable Forming | Filling material | 1000D/pc | PP 4±1 | |
Cable Forming | Polyester tape | mm | 0.025±0.005 | |
External protection | Material | - | Polyvinyl chloride PVC | |
Average thickness of sheath | mm | 0.8±0.1 | ||
Finished outer diameter | mm | 6.1±0.2 | ||
wire gauge | AWG | 18 | ||
Conductor DC resistance max. | 20℃-Ω/km | ≤19.5 |
![]() |
