AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens

AR0144 Sensor Ultra Low Power Camera Module USB2.0 Interface M12 Lens

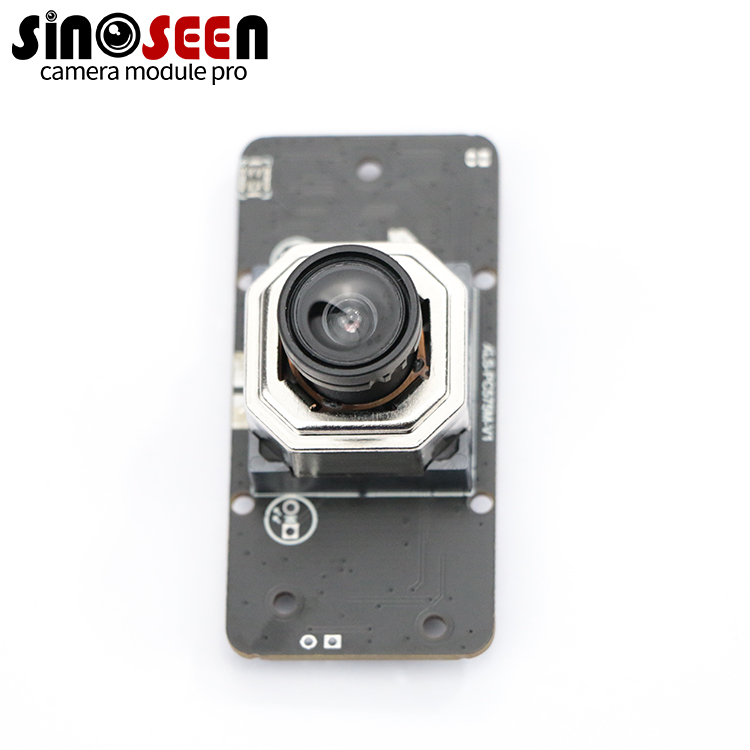

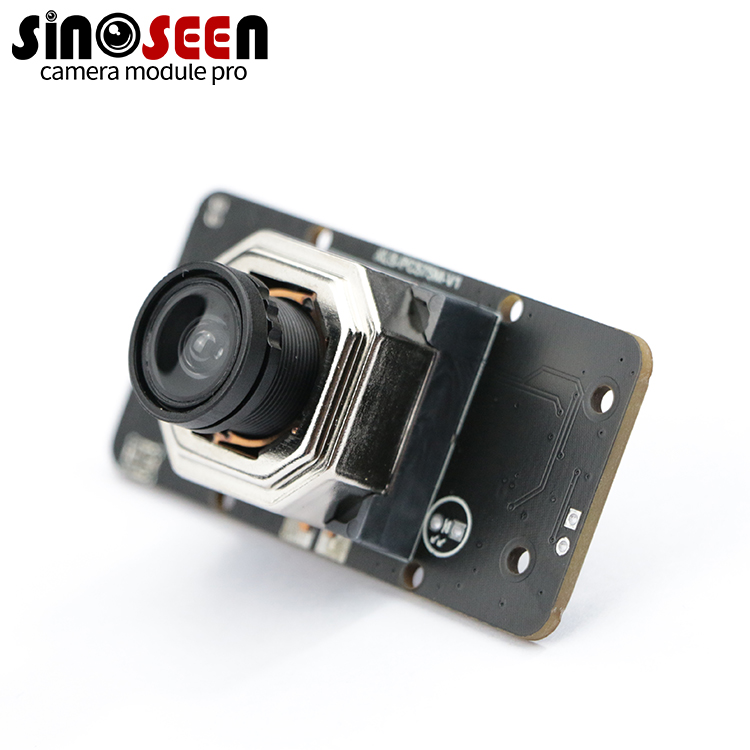

Global Shutter Camera Module With AR0144 Sensor USB2.0 Interface Color Image Auto Focus M12 Lens

This is one of our many excellent global exposure camera modules, which uses the AR0144 chip from ON Semiconductor. The AR0144 chip is available in color and black and white versions. We are currently using the color version of this module.

The AR0144 is a 1/4-inch 1.0 Mp CMOS digital image sensor with an active-pixel array of 1280H x 800V. It incorporates a new innovative global shutter pixel design optimized for accurate and fast capture of moving scenes. The sensor produces clear, low noise images in both low-light and bright scenes. It includes sophisticated camera functions such as auto exposure control, windowing, row skip mode, column-skip mode, pixel-binning and both video and single frame modes.The AR0144 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for a wide range of applications, including scanning and industrial inspection.

In this camera module, we use a very large motor to drive the M12 lens for autofocus, so that the camera has a very clear and stable imaging performance.

Specification
