Black White Image 1.2MP Global Shutter Camera Module AR0135 Sensor

Black White Image 1.2MP Global Shutter Camera Module AR0135 Sensor

Global Shutter Black and White Image 1.2MP USB Camera Module with ON-Semi AR0135 sensor

Global Shutter Camera Module

This is one of our most popular global exposure camera modules. It uses the global shutter technology of ON Semiconductor AR0135 CMOS sensor. It is 1.2MP (1280×960@30fps) and black and white images. It only needs black and white images. With this global shutter sensor, it can make the camera "freeze" fast-moving scene data and ensure effective synchronization with the pulsed light source.

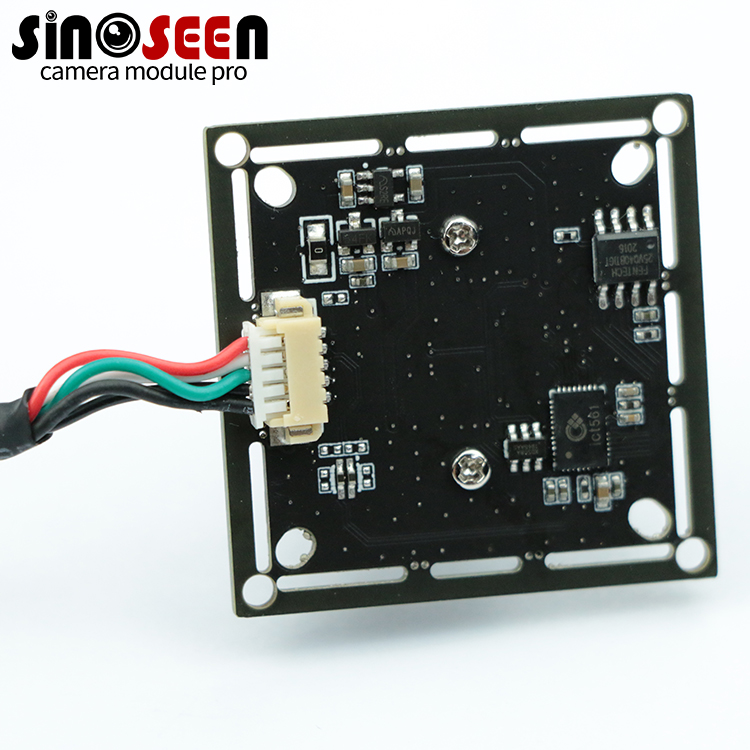

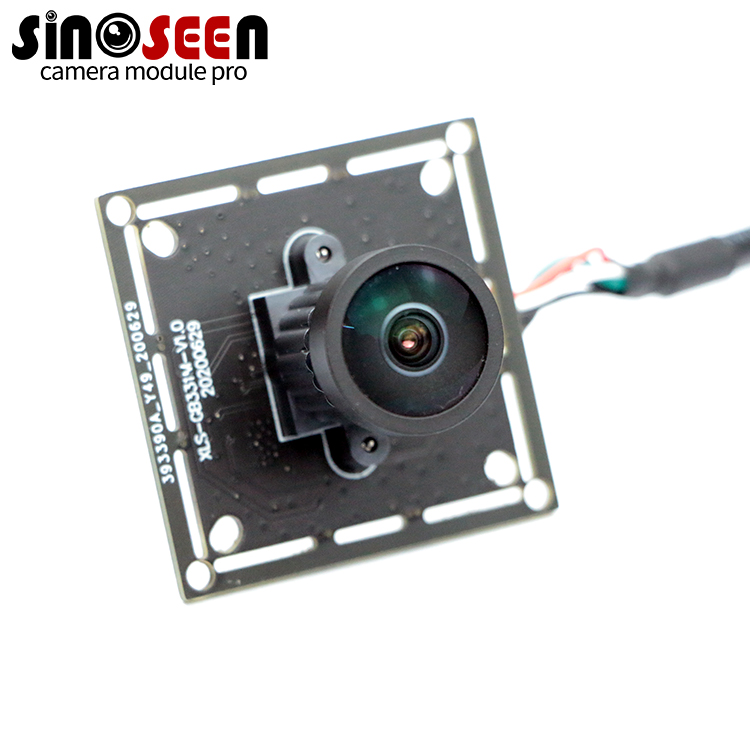

The current module size is 38mm * 38mm (compatible with 32mm * 32mm), we can change the size and shape of the module according to your requirements; we can change the lens according to your requirements, the field of view is 20°, 40° to 90°, 120° And 180°, 220°, etc. In addition, we can also print your company logo and name on the PCB.

This module can be widely used in many applications, such as drones, robotics, automobiles, barcode scanners, 3D scanning, position tracking, iris scanning, augmented reality (AR), virtual reality (VR), machine vision, computer vision, Biometrics, gesture control, etc.
