| Categories | Electrical Counter Meter |
|---|---|
| Brand Name: | Toky |
| Model Number: | CA/CA-W series |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 5sets |
| Payment Terms: | T/T |
| Delivery Time: | 15~35days |
| Packaging Details: | Carton |
| Power supply voltage: | CA:AC 220V±10% CA-W:AC/DC 100～240V |
| Power consumption: | ≤4W |
| Working environment: | -10～50℃ (no condensation) |
| Counting range: | 0.001-999999 |
| Delay time: | 0.01～600.00s |
| Sampling rate: | 1Hz,30Hz,300Hz,1000Hz |
| Company Info. |
| Light Country(Changshu) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
CA/CA-W digital counter/length counter,High accuracy and anti-interference capability, relay output, 1loop alarm output
1. Features and advantages:
a). Economical and practical.
b). Dual-line 6 digits display, easy to operate.
c). Use high-performance microprocessor as controll kernal.
d). High accuracy and anti-interference capability.
e). NPN,PNP can switch the short-circuit pin internally.
f). With F/R/N/C output function.

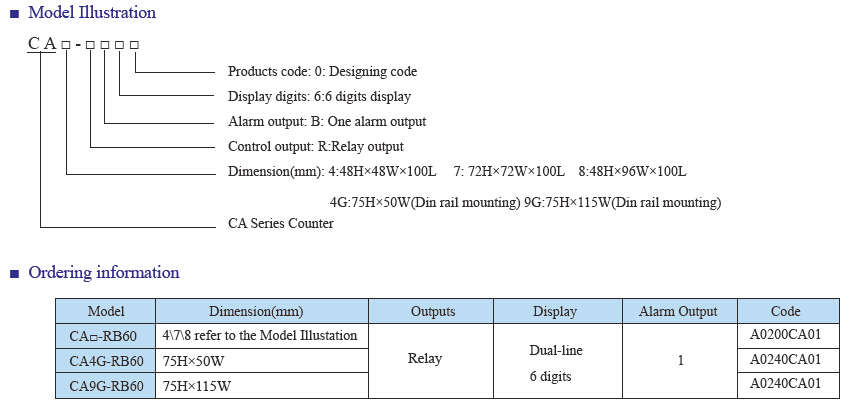

2. Model specification:
3. Technical parameter:
| Power supply | CA:AC 220V±10% 50Hz CA-W:AC/DC 100～240V 50/60Hz |
| Total consumption | ≤4W |
| Relay contact capacity | AC 250V 3A(resistance loading) |
| Auxiliary voltage | DC 18V±5V(≤25mA) |
| Input impedance | 5.4KΩ |
| Counting speed | 1Hz,30Hz,300Hz,1000Hz |
| Counting range | 0.001～999999 |
| Delay time | 0.01～600.00s |
| Coefficient setting range | 0.001～99.999 |
| External signal | 2,10,100,500Hz optional(external resetting frequency) |
| Working environment | -10～50℃(no condensation) |
| Storage environment | -25～65℃(no condensation) |
| Dielectric strength | 2000VAC 50/60Hz |
| Insulation impedance | ≥100MΩ(at 500VDC) |
| ESD | level 3(direct discharge 6000V;air discharge 8000V) |
| Pulse anti-interference | level 4 ±4000Vp-p |
| Lightning surge | level 3, line to line ±2000V |
| Frequency drop | level 3 |

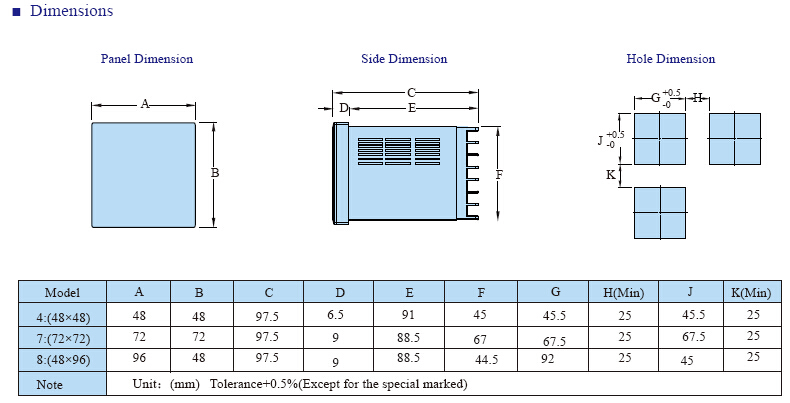

4. Appearance and installation dimensions:
5. Connections:
6. Contact:
