| Categories | Electrical Counter Meter |
|---|---|
| Brand Name: | Toky |
| Model Number: | CM series |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 5sets |
| Payment Terms: | T/T |
| Delivery Time: | 15~35days |
| Packaging Details: | Carton |
| Power supply voltage: | AC/DC 85～265V 50/60Hz |
| Power consumption: | ≤5W |
| Data reserve: | 10years |
| Working environment: | 0～50℃ (no condensation) |
| Display range: | -199999～999999(6digits);-19999～99999(5digits);-1999～9999(4digits) |
| Timing range: | 0.01S～9999.99H(6digits) 0.01S～9999.9H(5digits)0.01S～999.9H(4digit) |
| Timing accuracy: | 0.2%FS |
| Sampling rate: | ≤10Kcps |
| Company Info. |
| Light Country(Changshu) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

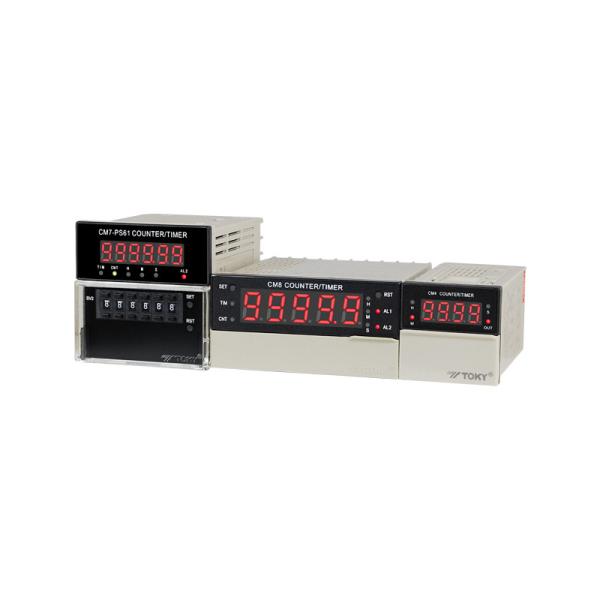

CM multifuction digital count meter/timer, 2loop input & 2loop output channel, power fail memory/timing pausing function
1. Features and advantages:
a). Dial switch setting, visual and easy to operate.
b). CP1/CP2 2 inputs,various input type:A/B/C/D
c). Max 2 output channels(relay or NPN open collector) AL1/AL2
d). 12 output modes:F/N/R/C/L1/K2P/Q/A/D/H/L
e). Power fail memory/timing pausing function.
f). Counting/timing functions switchable by software.
g). 8 timing modes, optional decimal or sexagesimal.
2. Model specification:
3. Technical parameter:
| Power supply | Linear Power supply AC220V±10 |
| Switch power supply:AC/DC 85~265V 50/60Hz | |
| Total consumption | ≤5W |
| Trigger edge | Rising edge, falling edge |
| Data reserve | 10years |
| Input signal type | Square wave, sine wave |
| Input signal level | High level:3～30VDC Low level:0～2VDC |
| Counting speed | ≤5Kcps |
| Working environment | 0～50℃ |
| Anti-interference | Power:2000Vp-p; I/O port:500Vp-p |
| Counting range | -199999～999999(6digits);-19999～99999(5digits);-1999～9999(4digits) |
| Counting output mode | F,N,C,R,K,P,Q,A(increasing or decreasing counting) |
| Input impedance | ≤6KΩ |
| Relay contact capacity | AC 250V 3A(resistance loading) |
| Insulation impedance | ≥20MΩ |
| Dielectric strength | 1500VAC |
| Timing accuracy | 0.2%FS |
| Timing range | 0.01S～9999.99H(6digits) 0.01S～9999.9H(5digits)0.01S～999.9H(4digit) |
| Dimension(mm) | 72H*72W*100L(CM7) |
4. Appearance and installation dimensions:
5. Connections:
6. Contact:
Sales: bassy shi
Cell phone: +86 13773069136
Email: bassy.shi@youjiazhineng.com
|
