| Categories | Multiview Processor |
|---|---|
| Brand Name: | Grastron |
| Model Number: | MS741 |
| Certification: | CE&FCC |
| Place of Origin: | China |
| MOQ: | 100 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100K/set per year |
| Delivery Time: | 6 weeks |
| Packaging Details: | Carton |
| feature: | hdmi |
| Name: | video multiviewer processor |
| interface: | HDMI 1.4 |
| Control mode: | RS232 |
Multi-Window Processors for Single Displays

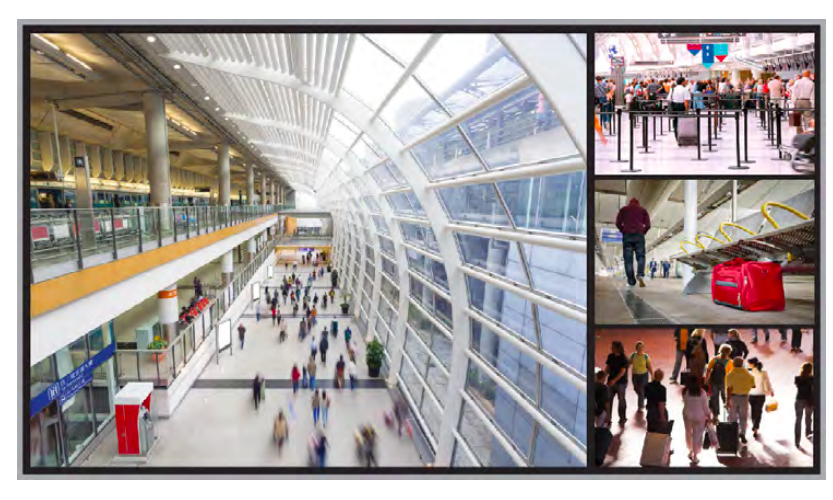

Grastron MS-741 multiviewers excel in their ability to display multiple high resolution video and computer sources on a single display screen. From the board room to teleconferencing to high-end home theaters and control rooms, our compact multi-window display processor systems offer customers an extraordinary level of performance.
A dedicated system architecture and embedded operating system
provide enhanced security and 24/7 reliability, which makes our
multiviewers ideal for use in operations centers, control rooms and
other mission-critical applications requiring multi-window display.
Product Specification
| Video | |
| Input interface | 4× HDMI IN, 2 x DP IN, 1 x VGA IN |
| Input specification | HDMI:HDMI 1.4a |
| DVI: 165MHz (UXGA@60Hz) | |
| DisplayPort: DP1.2a | |
| MHL: supports MHL2.0, 1080p | |
| HDCP: HDMI 1.4, DP 1.3 | |
| RGB/YPbPr: 205MHz (up to UXGA@75Hz) | |
| Support input resolution | Up to 3840 x 2160@30Hz (4K x 2K@30Hz) |
| Input level | 0.5-1.0 V peak to peak |
| Output interface | 1 x HDMI OUT |
| Output specification | HDMI 1.4 |
| Support output resolution | Up to 3840 x 2160@30Hz (4K x 2K@30Hz) |
| Output impedance | 100 Ω |
| DDC signal | 1.2 V Peak to peak |
| Audio frequency | |
| Input interface | 7 x 3.5mm stereo jack |
| Output interface | 4 x 3.5mm stereo jack |
| 1 x optical fiber terminal | |
| Routine | |
| Power Supply | 110~240V AC |
| Power waste | 15W |
| Control mode | RS232, LAN |
| Working temperature | 0°C to 35°C (32°F to 95°F) |
| 10% to 90%, non condensing | |
| Storage temperature | -20°C to 70°C (-4°F to 140°F) |
| 10% to 90%, non condensing | |
| Product size | 440mm x 272mm x 43.5mm |
| (L x W x H) | |
| Product weight | 3.16kg |
Product Advantages
1.MS-741 displays up to 4 sources on a single screen with up to 4K 60Hz input and output in customizable display layouts.
2. Multiviewers decode and display multiple, high-resolution video and computer IP streams on a single display screen.
3.The SuperView 4K displays 8 windows any size, anywhere with up to 4K input and output.
4.The SuperView 4100 displays 8 windows any size, anywhere with complete layout flexibility.
Product features
Grastron was founded in in 2014 at Shenzhen. Collected a team of RD experts who graduated from top universities and have rich experiences in wireless presentation industrial.
By 2015 the company established a production base and invested a lot of automated production equipments.
By 2021 the company had expanded the number of employees to over 300, with more product and applications specialists, sales engineers, service engineers and support staff. Our business has developed all over the world, and we have established long-term strategic business partnerships with many first-line brands.
We are looking forward to many more years of continuing to develop our relationship with you, our customers.
In order to build a workforce fit for the future, we view lifelong learning as an essential part of our corporate culture. We put people at the center of our activities and lay the foundations for a encouraging and trusting collaboration.This is a top priority at Grastron development and can be seen as an indirect value-adding process for retaining employees.
Our corporate responsibility forms the framework for diverse collaboration at Grastron. Our working environment is characterized by mutual respect and appreciation – regardless of gender, culture, religion, age, identity, or any other aspects. Because we embrace diversity. Because diversity promotes differences. And differences promote innovation.
|
