| Categories | Multiview Processor |
|---|---|
| Brand Name: | Grastron |
| Model Number: | MS641 |
| Certification: | CE&FCC |
| Place of Origin: | China |
| MOQ: | 100 units |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100K unit per year |
| Delivery Time: | 4-6 weeks |
| Packaging Details: | Carton |
| Display Settings: | Output Resolution, Flexible Window Layout |
| Window Layout (optional): | Preset up to 6 different layouts under quadviewer |
| Front Panel: | 14x Backlit Buttons (16 for MS641-KVM) |
| IR Remote Control: | IR Remote Control with 14x buttons for control |
| Noise Reduction: | 3D |
| De-Interlacing: | 3D Motion-Adaptive De-Interlacing |
| Pull-Down: | Automatic 3:2 |
| Phase Lock Loops: | 12-bit, Triple-Analog-to-Digital Converter |
Factory Ultra HD 4K 60Hz 444 HDMI Multiviewer Scaler Support Flexible Display Settings
Grastron MS641 series Factory Directly Supply Ultra HD 4K 60Hz 444 HDMI Multiviewer Scaler Support Flexible Display Settings. Support rich Display Settings, Output Resolution, Flexible Window Layout, Video Input Position, Aspect Ratio, VGA Auto Adjust. Window Layout (optional) Preset up to 6 different layouts under quadviewer.
Product Specifications:
| Video | |
| Input Interface | 4 × HDMI IN, 2 x DP IN. 2xUSB 2.0 IN (MS641KVM-2) |
| Input Specification | HDMI:HDMI 2.0a |
| DisplayPort: DP1.2a | |
| HDCP: HDMI 2.0, DP 1.4 | |
| USB: USB 2.0 (MS641KVM-2) | |
| Input Resolution | Up to 3840 x 2160@60Hz |
| Input Electrical Level | 0.5-1.0 V peak to peak value |
| Output Interface | 1 x HDMI OUT, 6xUSB 2.0 OUT (MS641KVM-2) |
| Output Specification | HDMI 2.0 |
| Output Resolution | Up to 3840 x 2160@60Hz |
| Output Impedance | 100 Ω |
| DDC Signal | 1.2V peak to peak value |
| Audio | |
| Input Interface | 6 x 3.5mm stereo jack |
| Output Interface | 1 x 3.5mm stereo jack |
| 1 x optical fiber terminal | |
| General | |
| Power Supply | 110~240V AC |
| Power Dissipation | 15W |
| Control Mode | RS232,LAN |
| Work Temperature | 0°C to 35°C (32°F to 95°F) |
| 10% to 90%, no condensation | |
| Storing Temperature | -20°C to 70°C (-4°F to 140°F) |
| 10% to 90%, no condensation | |
| Product size | 440mm x 272mm x 43.5mm |
| (L x W x H) | |
| Product Weight | 3.16kg |
Application:

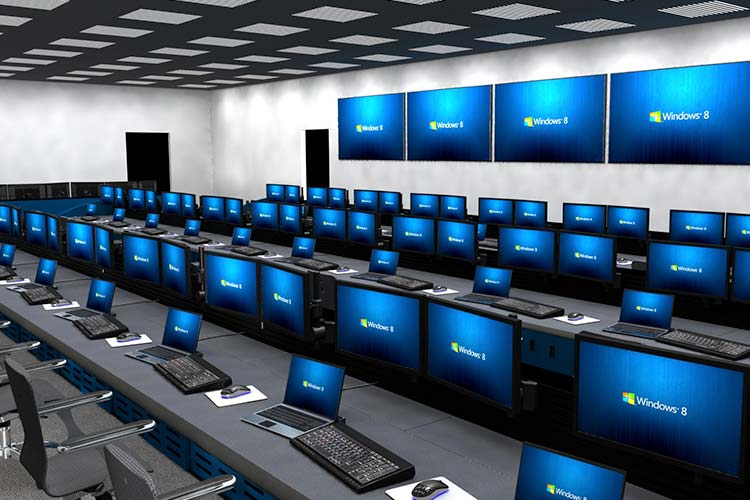

Grastron MS641 series Factory Directly Supply Ultra HD 4K 60Hz 444 HDMI Multiviewer Scaler Support Flexible Display Settings. If you have multiple video sources in a collaboration space, you may need to switch these video signals. In this case, you can use this device in your solution.

|   |
