YS3020 Customized Aperture Integrating Sphere Spectrophotometer With 10nm Wavelength

YS3020 Customized Aperture Color Matching Spectrophotometer with 10nm Wavelength Interval portable color tester

3nh's instruments are designed for the paper industry's unique challenges. They deliver consistent quality and appearance from sheet to sheet, ensuring perfect repeatability across your samples and facilities. We offer instruments with a larger viewing area to deliver unsurpassed quality and confidence in your results.

3nh's innovative products are used by major food processors and packagers,also used by research facilities in universities worldwide.

Product Description

1.Brief Introduction of Color Matching Spectrophotometer

1 )Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3020 grating spectrophotometer features SCI/SCE, USB , 8mm aperture, etc. It has high accuracy 0.04 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

2) Advantages of Color Matching Spectrophotomter YS3020

A. Perfect combination of beautiful appearance and the human body mechanics structural design;

B. D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil 7;

C. Use long life and low power consumption combined LED light source

D. Φ4mm/Φ8mm/1X3mm aperture

E. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

F. High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

G. USB/Bluetooth 2.1, dual mode, widely useful;

H. Super stain-resistant and stable standard white calibration plate;

I. Large capacity storage space, over 20,000 measurement data;

J. Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

K. Camera Locating Function, better position;

l. PC software has a powerful function extension.

3) Application for Color Matching Spectrophotomter YS3020

Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

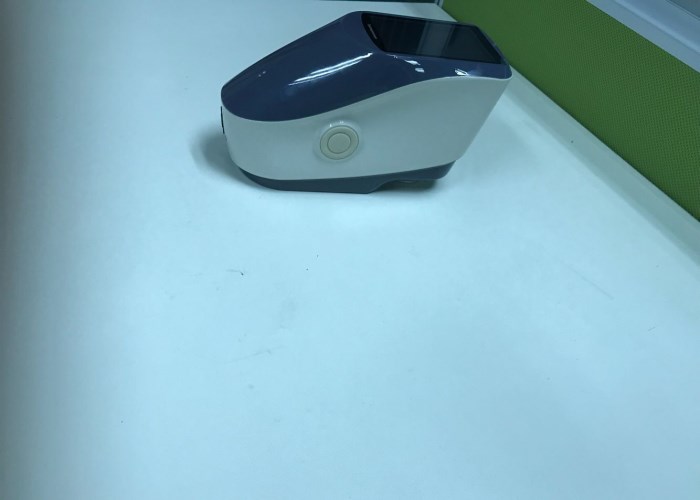

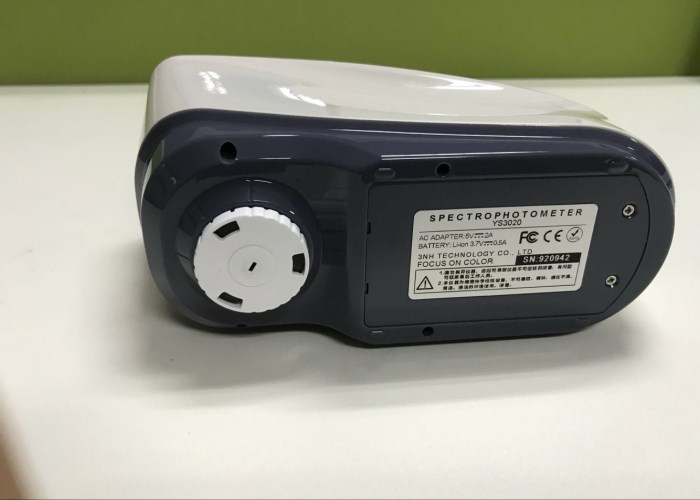

4. More pictures for Color Matching Spectrophotomter YS3020

5. Specifications for Color Matching Spectrophotomter YS3020

Model	YS3020 spectrophotometer
Illumination/observation system	Reflect: di:8°,de:8°(diffused illumination,8-degree viewing angle)
Integrating sphere Size	Φ48mm
Light Source	Combined LED Light
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength range	400~700nm
Wavelength pitch	10nm
Reflectance range	0~200%
Measuring Aperture	4mm/8mm/1*3mm
Color Space	CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00v,ΔE(Hunter)
Other Chromaticity Data	WI(ASTM E313, CIE/ISO, AATCC, Hunter),
	YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
	Metamerism Index MI,Staining Fastness,Color Fastness,Color Strength, Opacity
Observer	2°/10°
Illuminant	D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Display Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measurement Time	1.5s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Repeatability	Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	LWH=18477105mm
Weight	600g
Battery	Li-ion battery. 5000 times within 8 hours.
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	TFT 3.5inch, Capacitive Touch Screen
Interface	USB/RS-232
Data Memory	Standard 2000 Pcs, Sample 20000 Pcs
Operating Temperature	0~40℃(32~104°F)
Storage temperature	-20~50℃(-4~122°F)
Standard Accessory	Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory	Micro Printer, Powder Test Box
Notes	The specifications are subject to change without notice.

Packaging & Shipping
Packing Material : Alumimum box with carton box
Packing Size 42*21*33CM
Packing Weight:3KG
Delivery time: Within 3 working days after payment received.

Packing list

Colorimeter Spectrophotometer History

Contact name: Ms. Suzie Xia

Tel: 0086-755-27198826 Ext: 601
Fax: 0086-755-27190609
Mobile: 0086-13510878132
Email: y@3nh.com
Skype: y@3nh.com
Wechat:15019429968
Website: www.3nh.com/en

FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
