100% Copper Core Electric Automatic Water Pump For Home Water Main 0.5HP 0.37KW

Categories Automatic Water Pump
Brand Name: ZOZHI
Model Number: AUTOQB-60-1
Certification: CE/SGS/ISO
Place of Origin: China
MOQ: 1pc
Price: negotiated
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Delivery Time: 25 working days after received your payment
Packaging Details: Packed in cartons , overall size:280x145x180mm/pc, N.W.: 5.3kgs
Name: Automatic Water Pump
Application: Pumping
Power: 0.5HP / 0.37KW
Flow Max: 35 L/Min
Head Max: 35 M
Suction Max: 9 M
Switch: Mechanical pressure switch
Tank capacity: 19 L
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

100% Copper Core Electric Automatic Water Pump For Home Water Main 0.5HP 0.37KW

Automatic Water Pump

100% Copper Core Electric Automatic Water Pump For Home Water Main 0.5HP 0.37KW


Features of Domestic Pump

1. Used for 0-60 C clean water

2. A special spray-paint technique, beautiful and more stable
3. 100% copper wire by automatic wiring machine
4. CE TUV RoHS ISO9001 ISO14001 certification

5. A brass plate embedded to avoid impeller jam

Automatic Water Pump Application

  1. Auto series of a pump is constituted with clean water pump, non-return valve, and air-water separation room, which located on the upside of the pump body.
  2. During operating, it is no need to use a foot valve, the only thing that you should do is just leave some water in the pump body.
  3. After a few minutes of running, the water will be sucked out relying on the pump body itself.
  4. They are particularly suitable for domestic applications such as supplying water from a well, pool, etc.
  5. It is also suitable for water pressure boosting, gardening, and automatic water supplying if combined with other appliances.

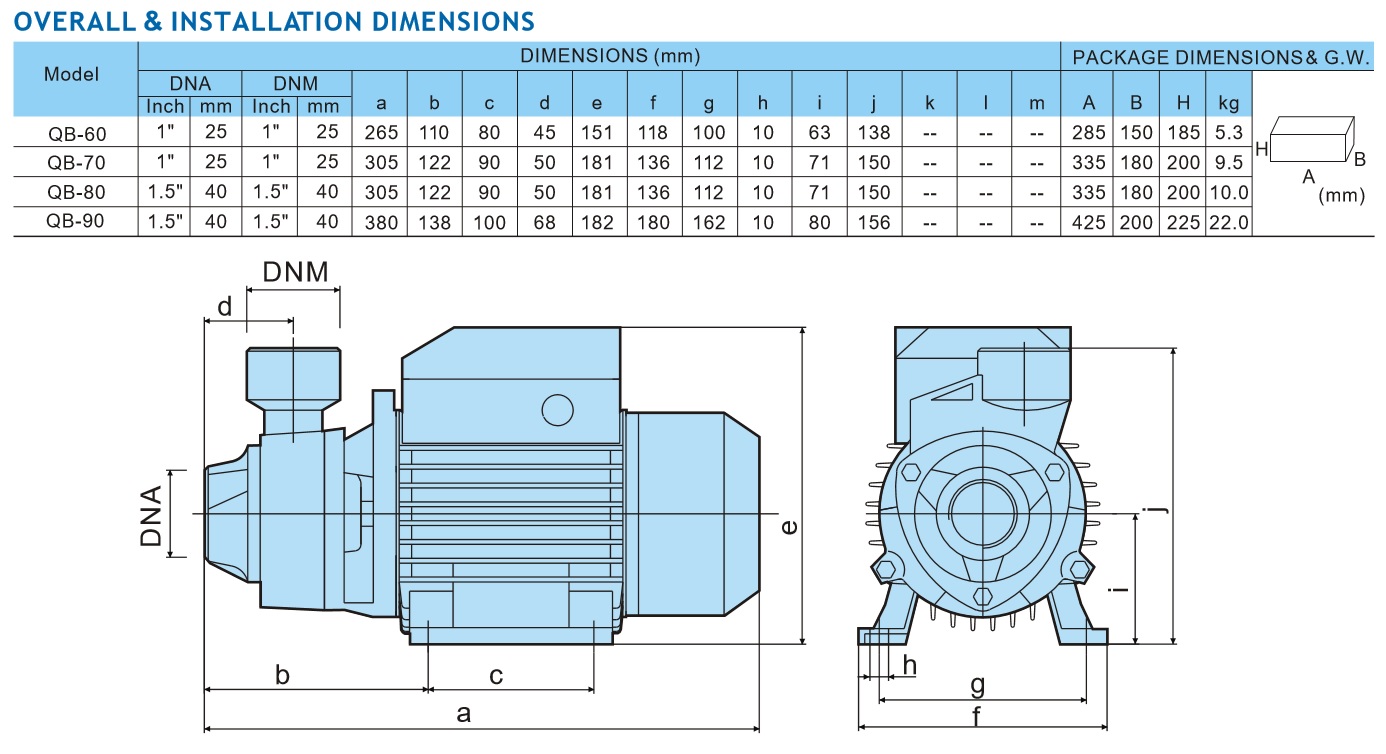

Technical Data


ModelOutputAR.P.M.Q.MaxH.MaxS.HeadPipe DiaLxWxHN.W.
HP / KW1~220V(l/min)(m)(M)(mm)(Kg)
QB-600.5 / 0.371.62850353591"x1"280x145x1805.3
QB-700.75 / 0.553.62850455091"x1"330x180x2209.5
QB-801 / 0.754.82850505591½ "x1½"330x180x22010
QB-901.5 / 1.16.22850906091½ "x1½"425x200x22022

Other voltages and frequencies available on request






Structural Characteristics

Main SpecificationStandardOptional
Transmission mediumClean Water
Pump bodyCast Iron
ImpellerBrass
Motor housingAluminum
Stator&Rotor1. Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front coverCast IronBrass plate embedded to avoid impeller jam
BearingChinese Best Quality BearingNSK, SKF, or on request
Mechanical sealGraphene/CeramicSilicon Carbon
ShaftCarbon SteelStainless Steel
InsulationClass BClass F
ProtectionIP44IP54
Voltage220-240V Single PhaseOn Request
Frequency50HZ60HZ
thermal protectionNoYes
Automatic Pressure Control SystemNoYes
Cooling TypeExternal Ventilation
Max. Suction lift9M
Max. Fluid Temperature+60℃
Max. Environment Temperature+40℃
InstallationHorizontal
Connect TypeThread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC

Automatic Water Pump


GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ


1. Q: What’s the MOQ?
A: Trial sample order is ok.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.

5. Q: What’s the warranty period?
A: 1 year.
