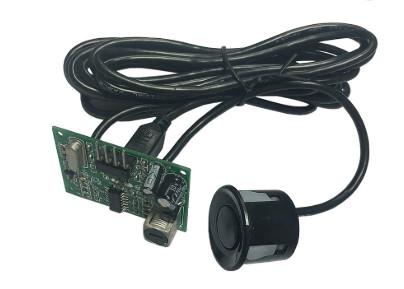

Waterproof Distance Measuring ME007Y Long Range Ultrasonic Sensor

ME007Y Waterproof ultrasonic sensor ranging distance measuring module

Features:

1) High sound pressure output;

2) Power supply: 5V;

3) Current: less than 20mA;

4) UART auto-output;

5) PWM controlled output;

6) Digital output;

7) Center frequency: 40KHz;

8) Temperature compensation;

9) Working temperature: -15℃ to +60℃;

10) Storage temperature: -25℃ to +80℃;

11) Measurement accuracy: ±1cm+(S*0.3%)(S is measured value);

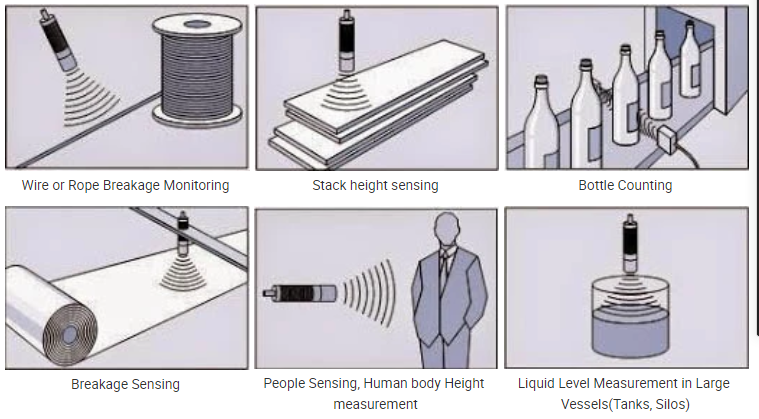

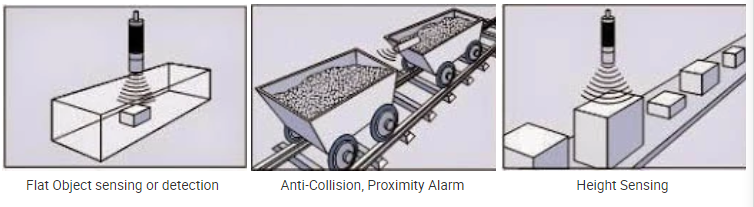

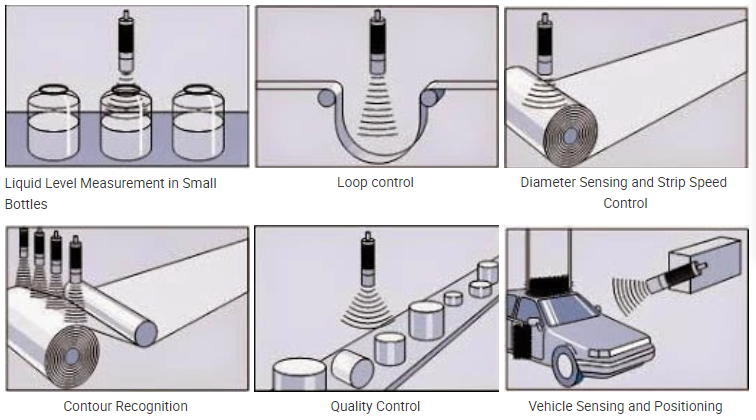

Application:

1) Level distance measurement;

2) Liquid level measurement;

3) Parking management system;

4) Robot obstacle avoidance,automatic control;

5) Detect the objects close to and the existence of external objects;

Chengdu Hao Li Electronic Technology Co., Ltd. is mainly engaged in the application design, development, production and sales of power supply and ultrasonic products. It has nearly 20 years of experience. It has in-depth cooperation with University of Electronic Science and Technology and Sichuan University. The products are mainly sold to Europe, the United States, Asia and other countries. The company has strong production capacity in power drive and intelligent control, application design of ultrasonic products, and can solve customization problems for customers.
