| Categories | Long Range Ultrasonic Sensor |
|---|---|
| Brand Name: | HAOLI |
| Model Number: | HL-175-30 |
| Certification: | CE,ISO9001,ROHS |
| Place of Origin: | ChengDu |
| MOQ: | 500 |
| Price: | Negotiation |
| Payment Terms: | TT |
| Supply Ability: | 1000pcs/10days |
| Delivery Time: | 10work days |
| Frequency: | 300±5KHZ |
| Capacicent: | 1800±20% |
| Dalay Time: | ≤0.8ms |
| Sensitivity: | -60dB min. |
| Directivity: | 11±2° |
| Operating Temperature: | -20℃—+70℃ |
Disc 38mm 300KHZ Long Range Distance Ultrasonic Sensor Wide Temperature Adaptation
Product Description
Feature
Specifications
| Center frequency | 300±5KHz |
| Bandwidth | 10Khz |
| Echo Sensitivity | -60dB min. |
| Min.Parallel Resistance | 150Ω±30% |
| Capacitance | 1200±20%pF |
| Typical Sensing Range | 0.15~4m |

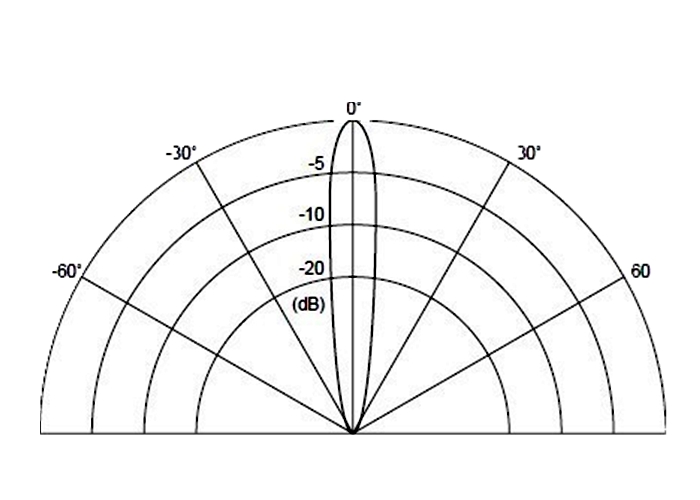

| Directivity deg | 14°±2°(-6dB) |
| Max.Input Voltage | 800Vp-p |
| Protection Class | IP65 |
| Min.Parallel Resistance | 150±50Ω |
| Mechanical quality factor(Qm) | min.40 |
| Operating Temperature | -30-+80℃ |
| Storage Temperature | -35-+85℃ |
| Housing Material | ABS Plastic |





                             |
