Sprag Type One Way Clutch Bearing with 54-2000Nm Torque 23-52mm Thickness and P0 Precision Rating

Categories One Way Clutch Bearing
Model Number: CK-A3072
Brand Name: SUMA
Place of Origin: Jiangsu, China
MOQ: 2
Price: $8-10
Precision Rating: P0
Seals Type: Sealed
Material: Bearing Steel
Torque Range: 54-2000Nm
Thickness Range: 23-52mm
Overrunning Speed: 1750-420 rpm (inner race), 500-150 rpm (outer race)
Outer Race Diameter: 42-180mm
Inner Race Bore: 15-80mm
Weight Range: 0.17-7.4kg
Surface Treatment: Anti-oxidizing paint
Bearing Type: Sprag
Keyed Shaft: Yes
Lubrication: Grease lubricated
Load Support: Requires bearings for axial/radial loads
Housing Tolerance: Same as bearing housing diameter
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

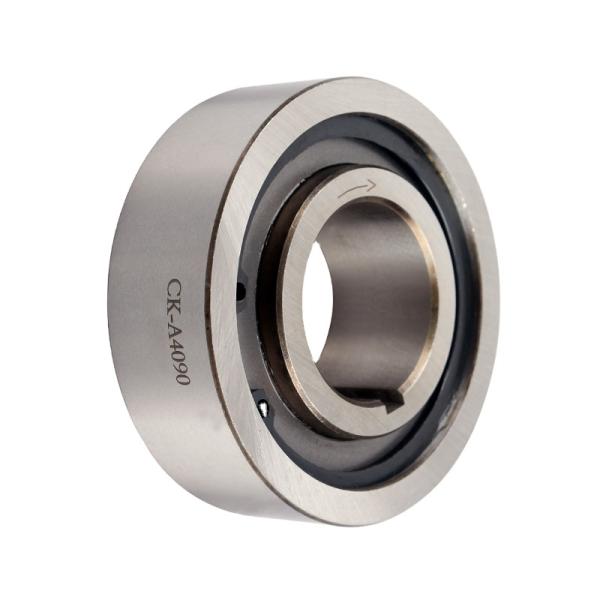

Sprag Type One Way Clutch Bearing with 54-2000Nm Torque 23-52mm Thickness and P0 Precision Rating

Product Description

Description of One Way Freewheel Bearing sprag type CKA 3072 / CK-A 3072

ModelCK-A series
Torque (Nm)54-2450
Overrunning speed (rpm)Inner race1750-420
outer race500-150
Outer race size(mm)Diameter42-180
Thickness23-52
Inner race size(mm)Bore size15-80
Thickness24-52
Weight (Kg)0.17-7.4

Introduction of CK-A series sprag type one way freewheel clutch bearings

Type CK-A is a sprag type freewheel non-bearing supported . Bearings are required to support axial and radial loads. Units are delivered grease lubricated .

A standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race and the outer race are keyed to the shaft and hole.


Parameter sheets of One Way Freewheel Bearing sprag type CKA 3072 / CK-A 3072


ModelNominalOverrunning LimitingDimension [mm]BearingWeight
TorqueSpeed (r/min)Outer raceInner race
[N.m]InnerOuterD[h7]Bbwxtwd[h7]Cbnxtn[kg]
racerace
CK-A154254175050042233x1.815243x1.463020.17
CK-A174775157540047233x1.817243x1.463040.21
CK-A205295140040052233x1.820243x1.463050.25
CK-A2562145126035062234x2.525244x1.863060.35
CK-A3072208105030072235x3.030245x2.363070.47
CK-A358034081520080288x4.035306x2.863080.69
CK-A409046270020090288x4.040306x2.863090.87
CK-A45100783560200100288x4.045306x2.863101.07
CK-A501108505251801102810x5.050308x3.363111.59
CK-A6013010504901801303410x5.060368x3.363122.16
CK-A6514012244901801403410x5.0653610x3.363132.49
CK-A7015018504551501504010x5.0704210x3.363143.36
CK-A7516021404551501604012x5.0754212x3.363153.81
CK-A8017024504201501704012x5.0804212x3.363164.29
CK-A125031.5175040050223x1.812243x1.40.24
CK-A185550157535055224x2.518244x1.80.28
CK-A206063160035060226x3.520246x2.80.33
CK-A2563100126035063246x3.525266x2.80.37
CK-A2563T140126035063306x3.525328x3.30.68
CK-A2870180105030070308x4.028328x3.30.6
CK-A3080T34087520080308x4.030328x3.30.75
CK-A358540081520085308x4.035328x3.31
CK-A351007808752001003210x5.0353410x3.31.34
CK-A351401000490180140358x4.0353510x3.53.28
CK-A401007805602001003410x5.0403410x3.31.2
CK-A401108507001801103210x5.0403410x3.31.19
CK-A5012510004901801253614x5.5503514x3.82.21
CK-A5013010505601801303614x5.5503814x3.83.02
CK-A5516020004551501605216x6.0555516x4.36.96
CK-A5813010504901801303614x5.5583814x3.82.6
CK-A6018020004201401805218x6.0605218x4.47.4

Mount Example


Detailed Images


Packaging
