Factory Cheap Price 5000watts 10000watts 15000watts Off Grid Solar System PV Panels Kit for Solar Powered Poultry Farm

Categories	Solar Panels
Brand Name:	OEM
Model Number:	See details
Place of Origin:	Hubei, China
Cell size:	182mmx182mm
Type:	Half Cell, Half Cell Solar Panel
Panel Dimensions:	2278 * 1134 * 35mm(89.6944.651.38in)
Panel Efficiency:	21.3%
Solar:	Glass
Application:	Solar Power System

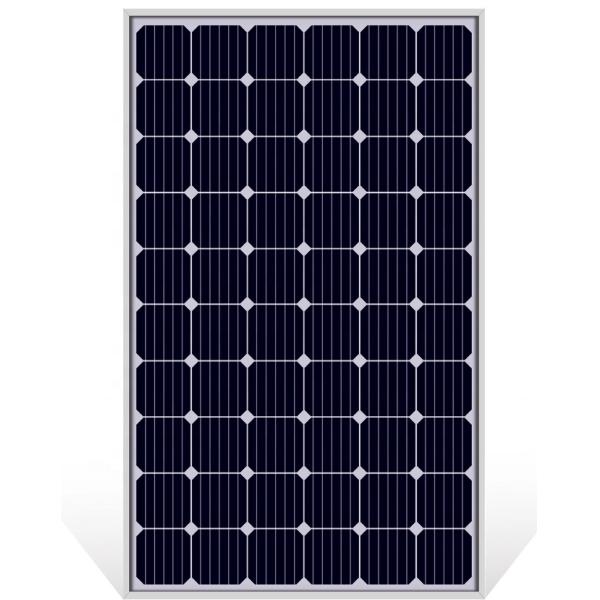

Product name:	Monocrystalline Silicon Solar Panel
OEM Order:	Acceptble
Solar cell:	Mono 144 Cell/6*24Pcs
Junction Box:	IP68 Rated
Keyword:	Monocrystalin Solar Panel
Frame:	Anodized Aluminium Alloy
Certificate:	CE,CQC,TUV
Warranty:	30 year
MOQ:	100 watts
Price:	$0.18-0.27 / watt

Contact Now

Add to Cart

Company Info.

Wuhan Huanghe Xingyu Electric Appliance Co.,Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

solar panel title

solar panel show

Product Description

Electrical Characteristic
Rated output (Pmp/Wp)	520W	525W	530W	535W	540W	545W	550W	555W	560W
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65	49.90	50.05	50.20
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92	14.00	14.07	14.14
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80	41.96	42.12	42.28
Maximum Power Current(Impp)	12.67	12.79	12.82	12.90	12.97	13.04	13.11	13.18	13.25
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%	21.5%	21.7%	21.9%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
Mechanical Characteristic
No.of Cells		144(6x24)
Weight		32.3kg
Dimension		2256x1133x35mm
Junction Box		IP68,three diodes
Output Cables		4mm2,positive 400mm /negative 200mm ,length can be customized
Glass		Dual glass,3.2mm coated tempered glass
Frame		Anodized aluminum alloy frame
