| Categories | Prismatic Battery Compress Machine |
|---|---|
| Brand Name: | XWELL |
| Model Number: | XW-12 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Price: | 10000-1000000USD/Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 50 pcs a month |
| Delivery Time: | 7- 15days |
| Packaging Details: | wooden case |
| Supply voltage: | 220V-50Hz/60Hz |
| Input Power: | 1.5kw |
| Warranty: | One Year warranty with lifetime support |
| Payment: | T/T |
| Company Info. |
| GUANGDONG XWELL TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

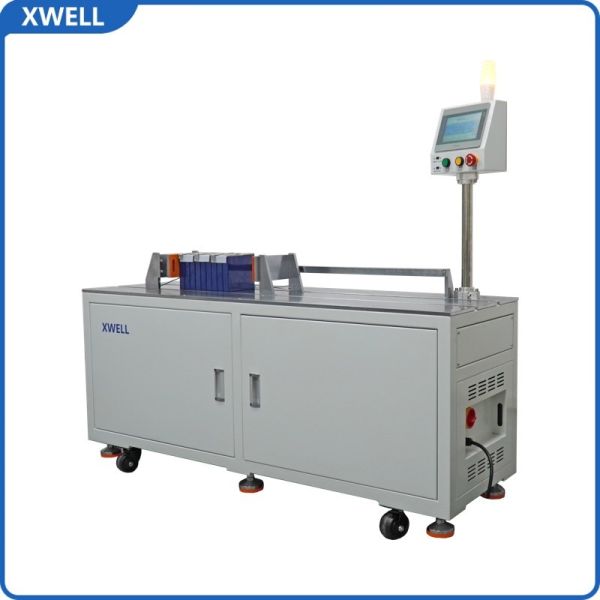

Prismatic Lithium Battery Cell Compress Machine
A Square Cell Compressor is a specialized industrial machine designed for the battery manufacturing and recycling industries. Its primary function is to apply a highly controlled and precise compressive force to prismatic (square or rectangular) lithium-ion battery cells.
Battery Manufacturing: Used during the formation process where new cells are charged for the first time. Compression improves lithium-ion intercalation and ensures proper solid electrolyte interface (SEI) formation, enhancing cell capacity and longevity.
Battery Recycling: A crucial step in pre-processing. Compressing cells safely discharges them of residual energy and flattens them, making them safer and easier to handle, crush, and shred in subsequent recycling steps.
Quality Testing & R&D: Used in laboratories to test the mechanical integrity, safety vents, and performance of cell designs under compression.
| Equipment Efficiency | 50 groups/hour (10PCS battery cells) |
| Equipment grafting rate | ≥98% |
| Extrusion stroke | 1000mm |
| Stacking maximum pressure | 100KG |
| Adaptable size range | L:50~250mm；W:20~100mm；H:100~300 mm |
| Pressure control error | 0.1KG |
| Control system | PLC+touch screen |
| Input power supply | AC220V/50HZ |
| Weight | 300kg |
| Equipment appearance reference size | L*W*H=1570*500*1400mm |
|
