Name: CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity
Brand: SUMA
Price: 26 USD

Product Details
Company Profile

CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity

CKA40100 100mm Outside Diameter One Way Clutch Bearing 40x100x34mm

Product Description

Features of CKA40100 one way clutch bearing

CKA is a sprag type freewheel non-bearing supported . Bearings are required to support axial and radial loads, Units are delivered grease lubricated.

Product name	One way clutch bearing
Model	CK-A 40100
Material	GCr15
Inner diameter	40mm
Outer diameter	100mm
Thickness	34mm
Torque capacity	780Nm
Weight	1.2Kg
Structure	Sprag type
Application	Packing machine, printing machine, conveyor, Hoister, Textile machine, Medical machine, Chemical Equipments
Package	Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union, Paypal
Delivery time	3-5 Days

Catalogue of hydraulic bearing clutch for your choice

Model	Nominal Torque	Overrunning Limiting Speed (r/min)		Dimension [mm]						Bearing	Weight
	Nominal Torque	Overrunning Limiting Speed (r/min)		Outer race			Inner race			Bearing	Weight
	[N.m]	Inner race	Outer race	D[h7]	B	bwxtw	d[h7]	C	bnxtn		[kg]
CK-A1542	54	1750	500	42	23	3x1.8	15	24	3x1.4	6302	0.17
CK-A1747	75	1575	400	47	23	3x1.8	17	24	3x1.4	6304	0.21
CK-A2052	95	1400	400	52	23	3x1.8	20	24	3x1.4	6305	0.25
CK-A2562	145	1260	350	62	23	4x2.5	25	24	4x1.8	6306	0.35
CK-A3072	208	1050	300	72	23	5x3.0	30	24	5x2.3	6307	0.47
CK-A3580	340	815	200	80	28	8x4.0	35	30	6x2.8	6308	0.69
CK-A4090	462	700	200	90	28	8x4.0	40	30	6x2.8	6309	0.87
CK-A45100	783	560	200	100	28	8x4.0	45	30	6x2.8	6310	1.07
CK-A50110	850	525	180	110	28	10x5.0	50	30	8x3.3	6311	1.59
CK-A60130	1050	490	180	130	34	10x5.0	60	36	8x3.3	6312	2.16
CK-A65140	1224	490	180	140	34	10x5.0	65	36	10x3.3	6313	2.49
CK-A70150	1850	455	150	150	40	10x5.0	70	42	10x3.3	6314	3.36
CK-A75160	2140	455	150	160	40	12x5.0	75	42	12x3.3	6315	3.81
CK-A80170	2450	420	150	170	40	12x5.0	80	42	12x3.3	6316	4.29
CK-A1250	31.5	1750	400	50	22	3x1.8	12	24	3x1.4		0.24
CK-A1855	50	1575	350	55	22	4x2.5	18	24	4x1.8		0.28
CK-A2060	63	1600	350	60	22	6x3.5	20	24	6x2.8		0.33
CK-A2563	100	1260	350	63	24	6x3.5	25	26	6x2.8		0.37
CK-A2563T	140	1260	350	63	30	6x3.5	25	32	8x3.3		0.68
CK-A2870	180	1050	300	70	30	8x4.0	28	32	8x3.3		0.6
CK-A3080T	340	875	200	80	30	8x4.0	30	32	8x3.3		0.75
CK-A3585	400	815	200	85	30	8x4.0	35	32	8x3.3		1
CK-A35100	780	875	200	100	32	10x5.0	35	34	10x3.3		1.34
CK-A35140	1000	490	180	140	35	8x4.0	35	35	10x3.5		3.28
CK-A40100	780	560	200	100	34	10x5.0	40	34	10x3.3		1.2
CK-A40110	850	700	180	110	32	10x5.0	40	34	10x3.3		1.19
CK-A50125	1000	490	180	125	36	14x5.5	50	35	14x3.8		2.21
CK-A50130	1050	560	180	130	36	14x5.5	50	38	14x3.8		3.02
CK-A55160	2000	455	150	160	52	16x6.0	55	55	16x4.3		6.96
CK-A58130	1050	490	180	130	36	14x5.5	58	38	14x3.8		2.6
CK-A60180	2000	420	140	180	52	18x6.0	60	52	18x4.4		7.4

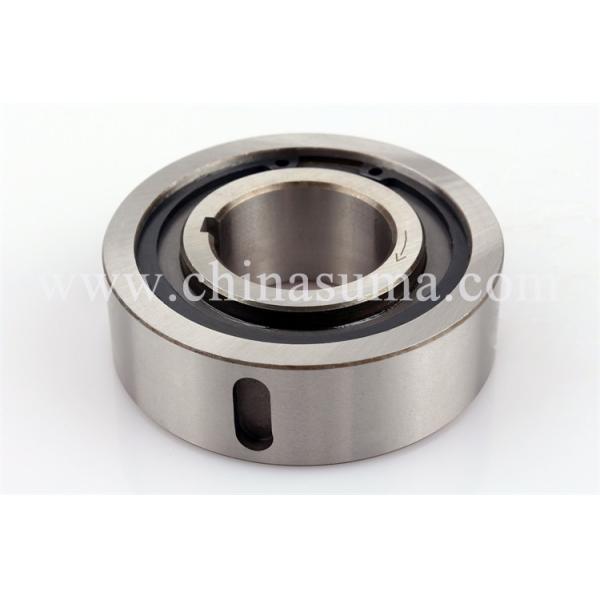

Detailed Images

40x100x34mm one way bearing

high torque one way bearing

780Nm capacity one way bearing

CKA40100 One Way Bearing 40x100x34mm 780Nm Torque Capacity

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Changzhou Tianniu Transmission Equipment Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	One Way Bearings
Model Number:	CKA 40100
Brand Name:	SUMA
Place of Origin:	Jiangsu, China
MOQ:	10
Price:	$26-30
Precision Rating:	P6
Seals Type:	open
Type:	SPRAG
Material:	Steel, GCr15
Torque Capacity:	780Nm
Inner Diameter:	40mm
Outer Diameter:	100mm
Thickness:	34mm
Weight:	1.2Kg
Structure:	Sprag type
Overrunning Speed:	560r/min
Limiting Speed:	200r/min
Bearing Width:	34mm
Bearing Type:	Non-bearing supported
Lubrication:	Grease lubricated
