Swinging Head 3D Stone Carving Machine 4 Axis with Qingchuan RV121 1 Reducer

Categories CNC Stone 4 Axis Engraving Machine
Model Number: HM4X-3515-2HD
Place of Origin: CHINA
MOQ: 1
Price: Negotiable
Payment Terms: L/C,D/A
Delivery Time: 15 work days
Packaging Details: width 2200 x length 5200 x height 2350mm
Reducer: (Qingchuan)RV121:1
OperatingVoltage: AC380V/50Hz
File format: G-code/HPGL
Control System: WEIHONG 4Axis
Machine dimension: 4500×2300×2300mm
Weight: 3200kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

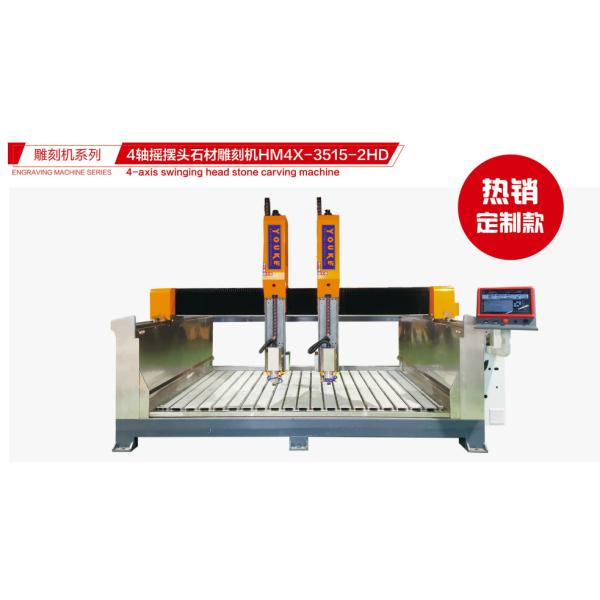

Swinging Head 3D Stone Carving Machine 4 Axis with Qingchuan RV121 1 Reducer

Introduction

The 4-axis swing head engraving machine represents advanced CNC engraving equipment specifically engineered for machining complex-shaped surfaces and contours. Unlike traditional 3-axis machines, this configuration incorporates an additional rotational axis (commonly designated as the "swing head" or "fourth axis"), enabling multi-angle tool orientation for omnidirectional engraving operations.



Functional Characteristic

★ Equipped with Shanghai Weihong CNC system supporting 4-axis linkage (with RTCP), featuring 180° swing head rotation to effectively solve curved surface and column capital side-angle engraving challenges in stone processing.

★ Powered by branded servo motors and RV reducers for high-speed operation, micron-level precision, and industrial-grade stability.

★ X/Y/Z-axis transmission utilizes imported 30/35mm linear square guide rails, while swing head integrates high-precision Qinchuan RV reducer - delivering exceptional load capacity, vibration-free motion, and ±0.01mm repeatability.

★ Reinforced thick-walled steel welded frame with stainless steel-clad body/worktable ensures deformation-resistant rigidity and 50% extended service life.
