AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring

Categories Oxygen Gas Sensor
Model Number: AOD1000
Place of Origin: CN
MOQ: 1PCS
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS
Delivery Time: 5-8 work days
Packaging Details: Standard packaging
Measurement Range: 0 ~ 100%
Output Voltage: 8.5 ~ 14 mV (in air)
Response Time: < 10 s
Temperature Compensation Range: 0 ~ 50℃
Load Resistance: 10 kΩ
Operating Temperature Range: 0 ~ 45℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

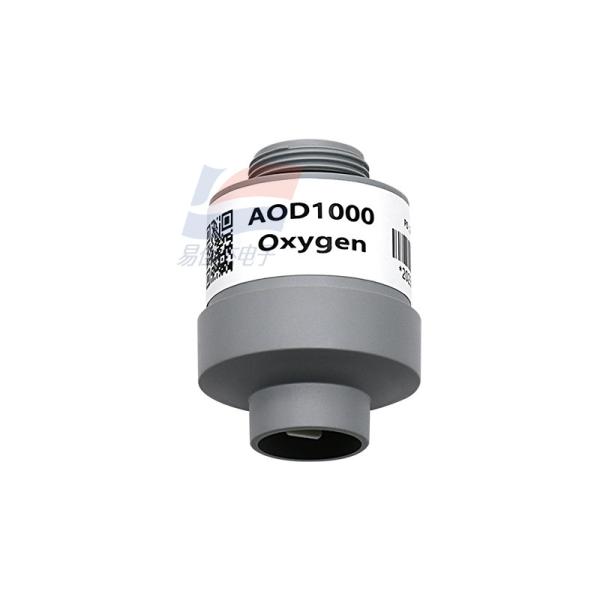

AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring


AOD1000 High Pressure Submersible Oxygen Sensor High-pressure Oxygen Chamber Oxygen Concentration Sensor For Oxygen Monitoring


Product Introduction:


The AOD1000 is a high - pressure - resistant oxygen sensor, which can be used in high - pressure environments. Its interface model is a Molex 3 - pin connector. Different from the oxygen sensors for normal - pressure detection, its structure and composition enable it to withstand much higher pressure than ordinary oxygen sensors.


Working Principle:


It measures the oxygen concentration based on the voltage - divider electrochemical principle, and can achieve full - scale linear output.


Application Fields:


It does not require an external power supply during operation. After professional and accurate product calibration and temperature compensation at the factory, it is widely used in oxygen monitoring of high - pressure equipment, such as hyperbaric oxygen chambers, inspection ships, tankers, and other equipment.


Parameter

Value

Unit

Measuring Range0 - 100%
Output Voltage (in Air)8.5 - 14mV
Response Time (T90)< 10s
LinearityFull - scale linear-
Temperature Compensation< 2% O₂ equivalent (0 - 50℃)-
Load Resistance≥ 10
InterfaceMolex 3 - pin connector (2.54mm)-
Housing MaterialGray ABS-
WeightApproximately 25g
Operating Temperature Range0 - 45
Operating Pressure Range0.8 - 7.0bar
Operating Humidity Range0 - 99 (non - condensing)%RH
Recommended Storage Temperature0 - 25
Expected Lifetime42months
Storage Lifetime6months
Shelf Life12months
