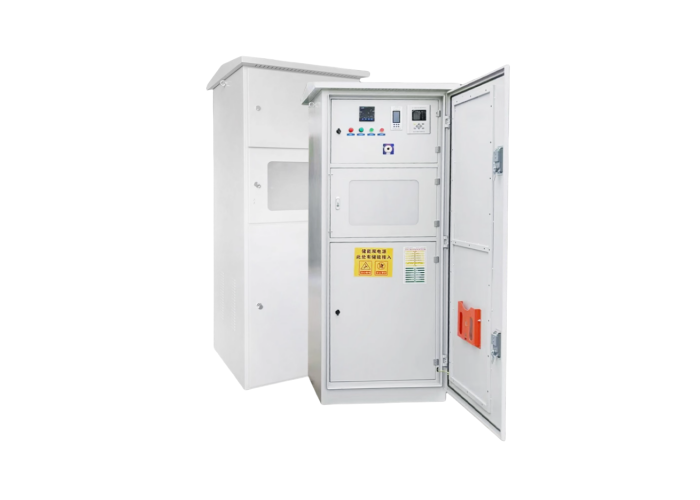

Fireproof PV Grid Connected Cabinet DC / AC Distribution Section MPPT

PV Grid-Connected Cabinet DC/AC Distribution Section MPPT

Product Describe:

1. Distributed PV Systems

• Rooftop PV Plants
  ▸ Manages grid connection for residential/commercial systems with anti-backfeed and anti-islanding protection.
  ▸ Supports 10kW–1MW capacity with bidirectional metering.

• PV Carports & BIPV
  ▸ Handles irregular power generation for building-integrated solar.

2. Utility-Scale Solar Farms

• Array-Level Control
  ▸ Deployed per 1–2MW array for local reactive power compensation (SVG) and voltage regulation.
  ▸ Compatible with 1500V DC input and IEEE 1547 standards.

• Skid-Mounted Substations
  ▸ Pre-integrated with transformers and switchgear for plug-and-play deployment.

3. PV + Storage Systems

• DC-Coupled Systems
  ▸ Coordinates PV inverters and battery PCS to minimize conversion losses.
  ▸ Example: Tesla Powerpack’s integrated cabinet design.

• VPP Participation
  ▸ Uses IEC 61850 for demand response (e.g., peak shaving).

4. Harsh Environments

• Offshore Floating PV
  ▸ IP66 corrosion-proof enclosure with dehumidification.

• High-Altitude Plants
  ▸ Pressure-balanced design for insulation stability (e.g., Tibet, Andes).

Specification:

Material:
Aluminum alloy, stainless steel, carbon steel

IP Rating:

IP54/IP55/IP65/IP66/IP67
