Custom TFT LCD Display Modules
Genyu TFT Display offers comprehensive LCD solutions with extensive
customization options.
| TFT LCD Size | Available Options |
|---|
| Display Sizes | 0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2",
2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0" |
| View Angle | IPS Full view angle, 12:00, 6:00 |
| Interface | RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support
customization |
| FPC | Pull-in Connector, Solder Type, Support customization |
Available TFT Display Models
0.96 inch TFT Display
Resolution: 80×RGB×160
1.06 inch TFT Display
Resolution: 96×RGB×160
1.28 inch TFT Display
Resolution: 240×RGB×240
1.44 inch TFT LCD
Resolution: 128×RGB×128
1.54 inch TFT LCD
Resolution: 240×RGB×240
1.77 inch TFT LCD
Resolution: 128×RGB×160
1.8 inch TFT LCD
Resolution: 240×RGB×284
2.4 inch TFT LCD
Resolution: 240×RGB×320
2.8 inch TFT LCD
Resolution: 240×RGB×320
2.95 inch TFT LCD
Resolution: 480×RGB×854
3.13 inch TFT LCD
Resolution: 379×RGB×960
3.2 inch TFT Screen
Resolution: 240×RGB×320
3.5 inch TFT
Resolution: 320×RGB×480
4.3 inch TFT with CTP
Resolution: 480×RGB×272
7.0 inch TFT LCD
Resolution: 800×RGB×480
Product Range: Color LCD display, Round TFT display, TFT display,
LCD Module, Round Display, 2.4inch TFT LCD, 1.28" display, 4.3 inch
TFT LCD, Small 0.96 / 1.3 / 1.54 / 2.0 / 2.4 / 3.2 / 3.5 / 4.3 inch
TFT LCD, Round TFT display, RGB LCD touch screen, Color LCD
display.
Genyu offers tens of thousands of LCDs for your reference. Please
share your requirements with Erica Tan for customized LCD solutions
or recommendations based on your specifications.
2.8 inch TFT Display
2.8 inch TFT LCD Display Specifications
- LCD Size: 2.8 inch
- Viewing Direction: 12:00
- Resolution: 240×RGB×320
- Contrast Ratio: 500
- Contrast Ratio: 250 Min
- Luminance: 250 cd/m²
- Module Size: 50×69.2×2.45 mm
- Panel Active Area: 43.2×57.6mm
- Driver IC: ST7789V
- Interface: MCU 8080 16BIT
- Number of Colors: 262K
- Panel Type: TN
- NTSC: 55%
- FPC: 30 Pin connector FPC
2.8 inch TFT LCD Display (IPS Version)
- LCD Size: 2.8 inch
- Viewing Direction: IPS
- Resolution: 240×RGB×320
- Contrast Ratio: 500
- Contrast Ratio: 250 Min
- Luminance: 250 cd/m²
- Module Size: 50×69.2×2.3 mm
- Panel Active Area: 43.2×57.6mm
- Driver IC: ILI9341V
- Interface: SPI
- Number of Colors: 262K
- Panel Type: IPS
- FPC: 20 Pin connector FPC
2.4 inch TFT Display
Company Profile
Established in 2003, Shen Zhen Genyu Optical Co., Ltd. specializes
in R&D, production, and sales of LCD displays, OLED, and TFT
LCD Modules. We provide professional customized LCD Screens
including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD Modules.
Genyu's plant area covers approximately 30,000 square meters with
1,000 employees, including 36 technicians, 16 developers, and 60
quality control specialists. Our core team comprises LCD experts,
process engineers, LCM R&D engineers, and B/L and FPC
engineers.
Utilizing modern automation plant equipment, advanced technology,
and a strong R&D team, we deliver high-quality display
solutions.
We design, develop, and produce customized LCD, LCM, B/L, FPC, and
other products according to customer requirements. Current annual
production capacity reaches 100 million LCD screens, 30 million
LCMs, and 40 million B/L units.
Advanced Manufacturing Facilities
Our nearly 6,000 square meter dust-free workshop maintains a
cleanliness level of 100k. Facility features include totally closed
transfer windows for material handling and air shower systems at
workshop entrances to effectively remove dust, hair, and other
contaminants, ensuring optimal production conditions.
Products & Services
Products
LCD/TFT/OLED display, touch screen, LCM, COB, COG
Contact our professional sales team with your requirements for
prompt response.
Services
- Free samples for regular models
- Free design drawings
- Free logistics quotes
Warranty
- Free replacement within 1 year for quality issues
- Free replacement for damage during transit
Monochrome LCD Solutions
Custom Segment LCD Display
Genyu has produced tens of thousands of segment LCDs. We offer TN,
STN, HTN, FSTN, VA/BTN LCD display technologies with custom design
capabilities.

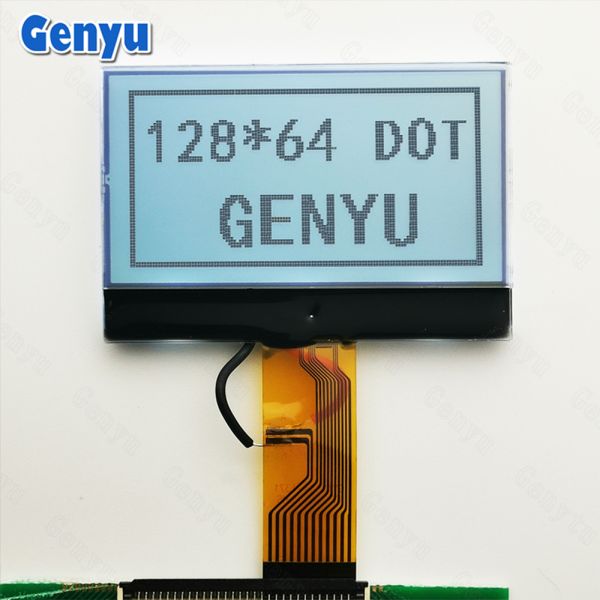

Dot Matrix Graphic LCD Display
Available resolutions include: 96×16, 96×24, 122×32, 132×36,
132×96, 128×32, 128×64, 128×96, 160×32, 160×80, 192×64, 240×80,
128×128, 160×160, up to 320×240 dot matrix LCD displays.
PMOLED Display
Mini size OLED Display options: 0.42", 0.49", 0.66", 0.78", 0.87",
0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" OLED Display
High Resolution 2.95 Inch TFT LCD Display 480x854 Pixels With RGB+MIPI Interface
