Vibrating Feeders Suitable For The Hydropower Industry Construction Aggregates

Vibrating Feeders Suitable For The Hydropower Industry Construction Aggregates

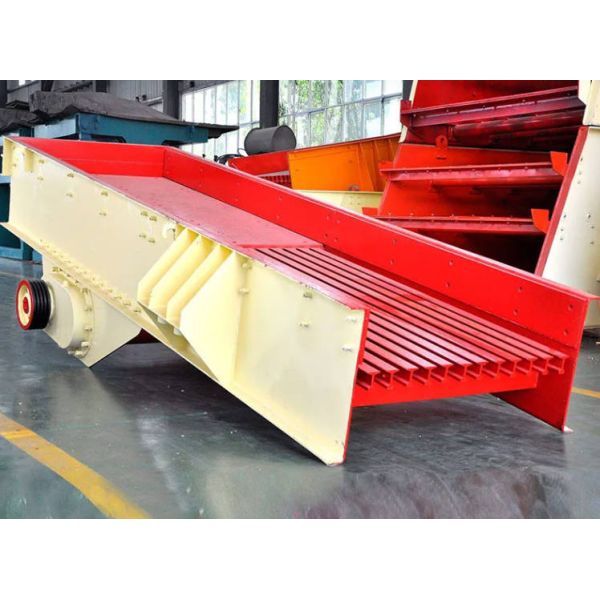

The GZT series bar-type vibrating feeder is designed and manufactured based on advanced foreign technology, utilizing a vibrating motor as the core excitation source. It is a specialized supporting equipment for the primary crushing stage. The equipment is mainly used at the front end of primary crushers, enabling uniform and continuous feeding of large materials. With its bar-type screen structure, it can efficiently screen out soil, fines, and other fine impurities while feeding, providing a pre-screening function and effectively improving the processing efficiency and capacity of subsequent crushing equipment.
This equipment is highly adaptable and is the preferred feeding equipment for primary crushing operations in hydropower projects, construction aggregate processing, and metal ore mining. It is also widely used in various industries such as mining, metallurgy, coal, building materials, light industry, chemical industry, power generation, and grain processing. It can accurately transport various materials in lump, granular, and powder forms to subsequent crushing and screening devices according to the requirements of uniform, continuous, or quantitative conveying.

Working Principle:
The equipment uses two vibrating motors of the same specifications as dual excitation sources. The high-speed rotation of the eccentric blocks at both ends of the motors generates a continuous excitation force, providing stable vibration power to the equipment. The feeding trough vibrates in a reciprocating linear motion along an inclined direction to complete the material conveying operation. When the acceleration component of the trough vibration is greater than the component of gravitational acceleration in the direction perpendicular to the trough, the material in the trough is thrown upwards, jumping forward along a parabolic trajectory. With each vibration cycle of the trough, the material is thrown forward once. Through continuous jumping motion synchronized with the vibration frequency of the trough, uniform and continuous feeding of materials is achieved.

Product Display of Conveying Hoisting Machine

Conveying Hoisting Machine

FAQ

Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.

Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.

Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.

Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.

Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.

After Sales Service

ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS

Luoyang Zhongtai Industries Co., Ltd. The company was founded in 1981 and finished joint stock reform in 2005. There are eight subsidiaries and it's an independent legal entity with the qualifications of operating import & export trade.

With a garden-like industrial park and modern standard plant covering 80,000 square meters, ZTIC possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services as a whole. The products comprise all the equipments used in mining, cement, metallurgy, construction as well as the related accessories with high power reducer and large-sized castings & forgings, etc.

ZTIC has acquired ISO 9001:2008 Certification of conformity of Management System Certification, Mine Product Safety Authentication, Recognition for BV Mode Ⅱ Survey Scheme in France, Mining Electrical Equipment KY Certification, etc.
The company has also acquired "Fully Quality Management Achievement Award", "Top 50 Enterprises", "Henan Outstanding Innovative Enterprise” and “The Most Powerful Enterprises of Henan" in 2010.

Quality product performance and good reputation, our products have been exported to mnay countries and regions in the world, including: Russia, Serbia, Australia, Mongolia, Indonesia, Bangladesh and other countries, the products are subject to a great welcome and praise.
