400V Master Slave High Voltage BMS Lithium Battery Management System

Categories High Voltage BMS
Brand Name: ENJ
Model Number: ENJBMS2A24SR
Voltage: 80V 96V 144V 156V 400V 800V 1000V
Application: Solar Energy Storage Systems, Industrial
Balancing type: active balance
Battery type: LFP NCM LTO Sodium Li-ion
MOQ: 2
Communication: RS485/CANbus/UART/BT/WIFI
Price: $239-255
Place of Origin: Guangdong, China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

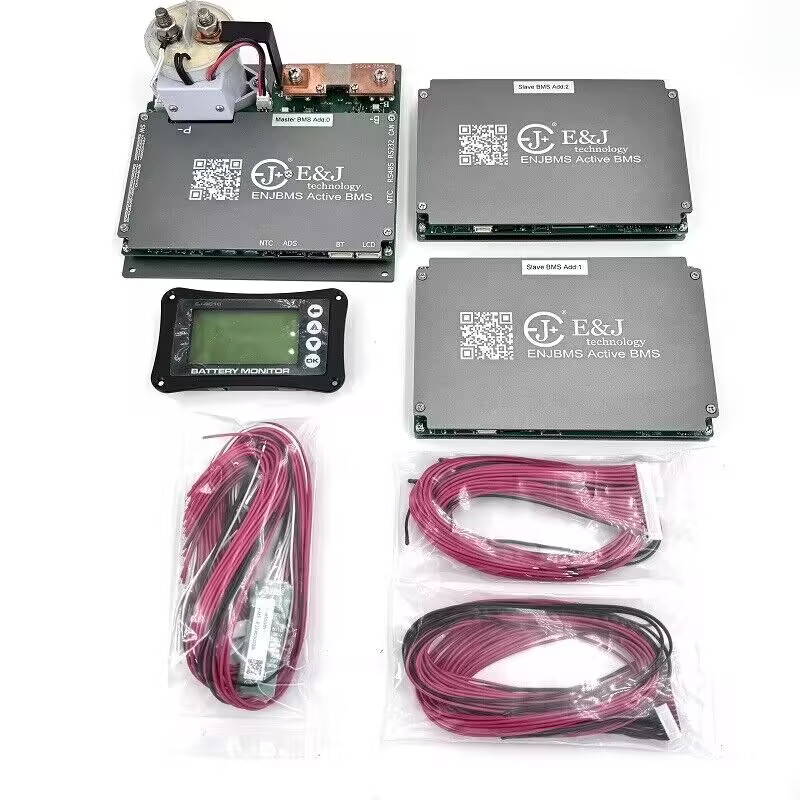

400V Master Slave High Voltage BMS Lithium Battery Management System

Technical indicatorsProduct number
EJBMS2A24SR200EJBMS2A24SR500
Number of LFP strings4~244~24
Balanced approachActive balance
Balanced current0~2A0~2A
Continuous discharge current200A500A
Maximum discharge current (adjustable)400A1000A
Overcurrent protection (adjustable)500A1200A
Outlet methodCommon Port
Overcharge protection voltage (adjustable)3.75V or 4.2V (adjustable)
Overcharge release voltage (adjustable)3.60V
Overcurrent release time (adjustable)1S
Over-discharge protection voltage (adjustable)2.50V
Over-discharge recovery voltage (adjustable)3.00V
Maximum number of temperature detections4 pcs
Short circuit protectionYES
coulomb meterYES
Display interfaceOptional
RS485 communication interfaceOptional
RS232 communication interfaceOptional
CAN communication interfaceOptional
Temperature interfaceOptional
Heating interfaceOptional
Bluetooth interfaceOptional



http://www.enjpower.com/productview_138.htm


What are the key features that a ENJBMS should have?

Safety: ENJBMS have features to ensure the safe operation of the lithium battery, such as over-charge protection, over-discharge protection,over-temperature and short-circuit protection.
Accuracy: ENJBMS provide accurate voltage, current, and temperature readings to allow for proper battery monitoring and management.
Flexibility: ENJBMS support various types of lithium battery chemistries(like LiFePO4, LTO, NMC Li-ion) and be adaptable to different battery configurations and sizes.
Reliability: ENJBMS have a robust design and be able to operate consistently and accurately over an extended period of time.
Communication: ENJBMS have a reliable communication interface, such as Bluetooth or RS232, WiFi, I2C, CAN, or RS485, to allow for easy integration with other system components and monitoring software.
Scalability: ENJBMS can scalable to accommodate future growth and changes in battery requirements. Support further software upgraded by bluetooth or ENJBMS PC software.
Cost-effectiveness: ENJBMS have a good balance between performance and cost, and be a cost-effective solution for the specific battery application.
These are the main characteristics that a top-performing Lithium Battery Management System should have.
