| Categories | Diesel Generator with ATS |
|---|---|
| Model Number: | JFP-200GF |
| Controller: | Deepsea/ComAp/Smartgen |
| Rated Frequency: | 50 Hz |
| MOQ: | 1 |
| Type: | Silent Type |
| Rated Voltage: | 400V / 230V, 3P4W Star Connection |
| Brand Name: | JFP |
| Phase: | 3 Phase 4 Wire |
| Delivery Time: | 10 days |
| Prime Power: | 200 kW / 250 kVA |
| Power Factor: | 0.8 (Lagging) |
| Payment Terms: | L/C,T/T |
| Color: | Orange, or Customized colors |
| Packaging Details: | Plyfilm or plywood |
| Standby Power: | 220 kW / 275 kVA |
| Rated Speed: | 1500 rpm |
| Certification: | ISO, CE, TLC, CCS, BV |
| Engine: | Yuchai |
| Place of Origin: | Jiangsu, China |
| Warranty: | 1 Year |
| Company Info. |
| Nanjing Joyful Power Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
This 200kW (250kVA) silent diesel generator set with ATS features an original Yuchai YC6MK350-D30 electronically controlled common rail engine paired with a genuine STAMFORD UCI274H brushless alternator, complying with ISO 8528 standards. The integrated silent canopy and ATS automatic transfer switch enable automatic startup and power switching during mains power failure. Designed for reliable emergency backup power in hospitals, hotels, commercial buildings, residential districts, data centers, and urban projects with noise limitations. The all-in-one design supports outdoor direct installation.
| Diesel Generator Details | |
|---|---|
| Model | JFP-200GF |
| Prime Power (PRP) | 200 kW / 250 kVA |
| Standby Power (ESP) | 220 kW / 275 kVA |
| Rated Voltage | 400V / 230V, 3P4W Star Connection |
| Rated Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Power Factor | 0.8 (Lagging) |
| Rated Line Current | 361A |
| Optional Type | Open / Rainproof / Silent / Trailer / Containerized |
| Diesel Engine Details | |

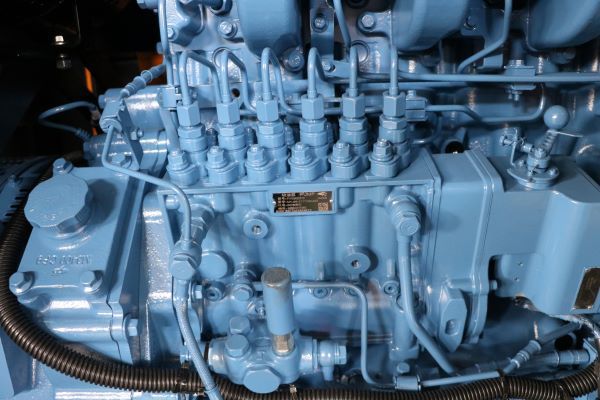

| Brand & Model | Yuchai YC6MK350-D30 |
| Type | 6-cylinder In-line, 4-stroke, Water-cooled, Direct Injection |
| Aspiration | Turbocharged & Air-to-Air Charge Cooled |
| Bore × Stroke | 123 mm × 145 mm |
| Displacement | 10.388 L |
| Starting System | DC 24V Electrical Start |
| Fuel Consumption (1500rpm) | ≤195 g/kW·h |
| Alternator Details | |
| Brand | Stamford |
| Type | Brushless, Self-excited, Rotating Field, Single Bearing |
| Rated Power | Prime: 250 kVA; Standby: 275 kVA |
| Standard AVR | AS480 |
| Insulation Class | H |
| Protection Grade | IP23 |
| Controller Details | |
| Brand | Smartgen |
|
