Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support

Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support

Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support
Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support
Categories Welding Rotator
Model Number: ZTG-3
Max Loading Weight: 3 Tons
Price: 500-1000USD
Roller Linear Speed: 6-60m/H
Certification: CE
Suitable Pipe Diameter: 50-2000mm
MOQ: 1
Delivery Time: 10-20 work days
Wheel Roller Width: 25mm
Lead Time: 15 Days
Payment Terms: T/T,D/P,D/A,L/C
Motor Power: 2*0.37kw
Supply Ability: 500 units/month
Speed Mode: AC Variable Frequency Stepless Speed Regulation
Brand Name: LEMAR
Model: ztg-3
Packaging Details: 120.00cm * 74.00cm * 100.00cm
Place of Origin: WUXI
Rubber Roller Diameter: 300mm
Contact Now
Company Info.
Wuxi Lemar Machinery Equipments Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

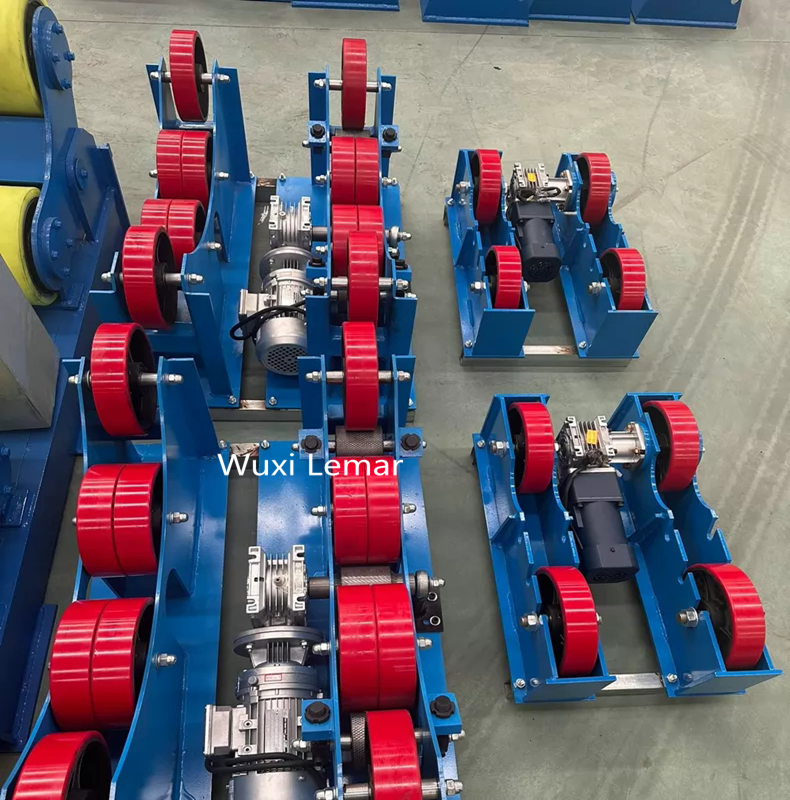

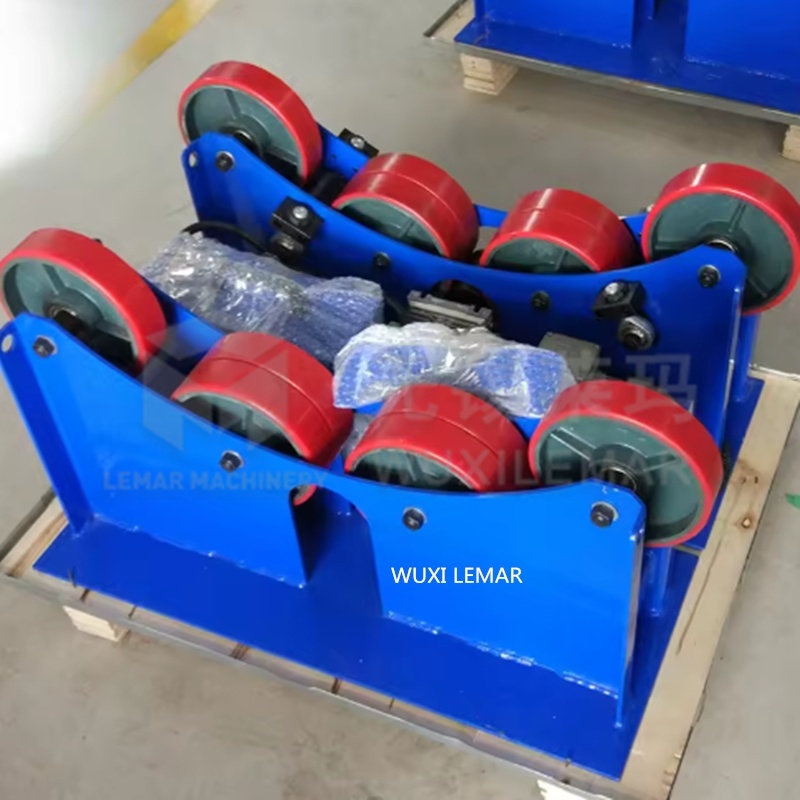

Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support

Self Adjusting Welding Rotator 3Ton VFD Stepless Speed Pipe Welding Roller Support
Product Overview

This 3 ton self-aligning welding rotator is auxiliary welding equipment designed for cylindrical workpieces. The roller groups automatically adjust their swing angle to accommodate different pipe and tank diameters without manual repositioning. It maintains steady workpiece rotation for circumferential welding, longitudinal welding, assembly, and polishing operations. Ideal for small and medium metal fabrication workshops.

Main Features
  • Self-aligning design prevents axial drifting during rotation
  • VFD infinitely variable speed control with forward & reverse rotation
  • Optional PU, Rubber, or Steel rollers to protect workpiece surfaces
  • Heavy-duty welded carbon steel frame with strong rigidity
  • Control box equipped with emergency stop button for safety
  • Support customization for voltage, foot switch, and remote controller
Working Principle

The welding rotator features driving and driven roller groups arranged in a V-shape configuration. The motor drives a gear reducer to rotate the rollers and turn cylindrical workpieces. With the self-aligning mechanism, roller groups automatically swing according to workpiece diameter to maintain centering and prevent axial movement. The welding torch remains stationary while the workpiece rotates, achieving uniform circumferential weld seams.

Technical Parameters
ItemSpecification
ModelZTG-3
Rated Load Capacity3 Ton
Workpiece Diameter Range250mm - 1200mm
Rotating Speed100-1000mm/min, stepless speed
Driving Motor Power0.55KW
Control SystemVFD frequency conversion control
Roller TypeSelf-aligning automatic adjustment
Roller MaterialPU / Rubber / Steel optional
Frame StructureIntegral heavy welded steel frame
Workpiece FeatureSuitable for cylindrical workpieces
ApplicationPipe, tank, boiler, pressure vessel welding
Input Voltage380V 50Hz / Customized voltage
Loading TypeHorizontal stable support
Custom ServiceSupport non-standard customization
CertificationCE compliant, factory quality inspection
Main Components
  • Frame base: Heavy-duty welded steel frame, stable and rigid
  • Driving roller group: Motor driven, provides workpiece rotation
  • Driven roller group: Free rotating, supports the workpiece
  • Self-aligning mechanism: Auto-adjusts roller angle for different diameters
  • Gear reducer + motor: Power transmission, 0.55 KW
  • VFD control box: Stepless speed control, forward/reverse, emergency stop
  • Foot switch (optional): Hands-free speed control during welding
  • Remote controller (optional): Long-distance operation

Packing & Shipping
  • Packing: Export wooden case, waterproof and shockproof for sea shipment
  • Loading: Fit for 20ft container
  • Delivery time: 10-20 working days after receiving deposit
  • Trade terms: FOB Shanghai / Ningbo, CIF, EXW available
  • Documents: Commercial invoice, packing list, bill of lading, CE certificate

Frequently Asked Questions
Q1: What is the maximum weight this rotator can bear?
A1: The rated loading capacity is 3 tons. Please do not overload the machine.
Q2: Can it work for workpieces of different diameters?
A2: Yes. It adopts self-aligning design, rollers can automatically adjust angle to fit different cylinder diameters.
Q3: What roller materials can I choose?
A3: PU, rubber and steel rollers are optional based on your workpiece surface requirement.
Q4: Can we customize the input voltage?
A4: Sure. We support customized voltage such as 220V, 415V for different countries.
Q5: Does the machine support speed adjustment?
A5: Yes, equipped with VFD drive for stepless speed regulation with forward and reverse rotation.
Q6: What is the warranty period?
A6: 12 months warranty. We provide long-term online technical support.
Q7: Can this rotator work together with welding manipulator?
A7: Yes, it can cooperate with welding manipulator, positioner and welding source to build automatic welding system.
