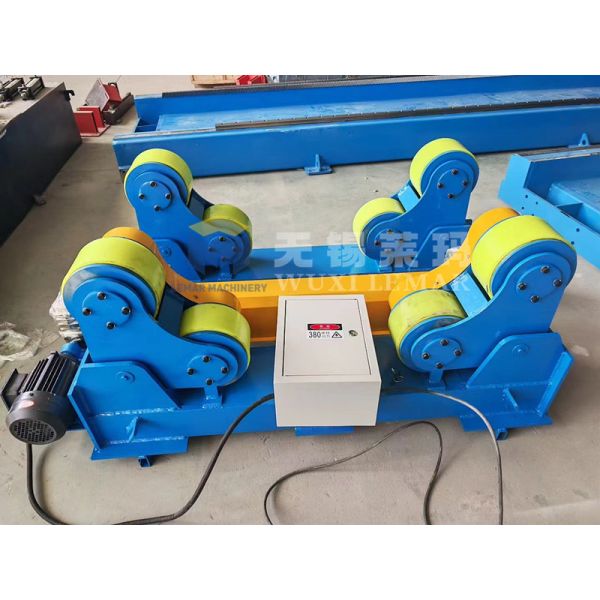

40 Ton Self‑Aligning Welding Rotator Wind Power Tower Section Girth Welding Machine

40 Ton Self-Aligning Welding Rotator Wind Power Tower Section Girth Welding Machine
Product Overview

This 40-ton self-aligning welding rotator is specially optimized for on-shore wind tower segment manufacturing. With automatic centering swing-arm structure, it adapts to varying wind tower diameters without manual wheel-base adjustment. High-load PU rollers, VFD stepless speed regulation and heavy-duty welded frame guarantee stable continuous circumferential welding for wind power cylinder sections, reduce workpiece slippage and surface scratch, widely matched with SAW/MIG welding processes for wind tower mass production.

Technical Specifications
ItemSpecification
ModelHGZ-40 Self-Aligning Welding Rotator
Rated Load40 Ton
Workpiece Diameter Range600-4200 mm
PU Roller SizeΦ400×180 mm
Linear Speed100-1000 mm/min stepless adjustable
Drive Motor Power2×3.0 kW
Control ModeVFD frequency conversion + wired remote control
Standard Voltage380V 3-phase 50Hz (customizable)
Configuration1 active unit +1 idler unit
Core Features
  • Automatic self-aligning swing-arm mechanism, rollers auto adapt wind tower diameter range, save frequent manual adjustment time for mixed-size tower segments
  • Heavy-duty integral stress-relieved welded base, stable bearing for 40-ton wind tower cylinder long-time continuous running
  • High-density wear-resistant PU rollers, anti-slip, prevent scratch on wind tower outer surface, lower finished-part rejection rate
  • Dual-motor driving + VFD frequency conversion stepless speed control, smooth rotation, low vibration, suitable for submerged-arc girth welding
  • Independent control box with wired remote handle, forward/reverse/emergency-stop function, easy operation for wind-energy workshop
  • Customizable electrical system for different country 3-phase power supply, complete CE technical documents for import clearance
Application Scenarios
  • On-shore wind power tower single-section circumferential welding
  • Wind tower flange assembling & girth seam welding
  • Large-diameter steel cylinder and pressure-vessel fabrication
  • Heavy steel shell circumferential welding and pre-assembly work
  • Batch production workshop for new-energy wind-energy equipment
Quality Assurance & Service
  • Every 40-ton self-aligning rotator completes full-load running test before ex-factory
  • Strict dimensional inspection for frame, reducer and roller assembly
  • Core drive components pass incoming quality check
  • 12-month warranty for whole machine (excluding wearing rollers)
  • Supply spare-part quotation support for wind-energy workshop maintenance
  • Provide factory test video for customer evaluation
  • Remote technical guidance for installation and troubleshooting
Quality inspection process
Frequently Asked Questions
Q1: Is this rotator specially for wind tower production?
A: Yes, this 40-ton self-aligning rotator is optimized for wind-tower segment girth welding, also works for pressure vessels and large steel cylinders.
Q2: Do I need manually adjust roller distance when changing different wind tower diameters?
A: No. Self-aligning swing-arm structure automatically adapts diameter changes, no manual wheel-base adjustment required.
Q3: Can PU rollers avoid scratching wind tower painted surface?
A: High-density PU roller effectively prevents scratch, suitable for finished or semi-finished wind tower shell welding.
Q4: Can you change voltage to match our local 3-phase power supply?
A: Yes, we redesign whole electrical system for 380V/415V/480V 50/60Hz according to customer site requirement.
Q5: Can this rotator link with welding manipulator?
A: It can reserve linkage signal interface as optional upgrade.
Q6: What documents can you provide for import customs clearance?
A: We can offer commercial invoice, packing list, CE documents, factory test report and English technical drawings.
Q7: What is your delivery lead-time for 40-ton wind-power rotator?
A: Normally 30-35 working days upon receiving advance payment.
Please share your wind-tower workpiece diameter, weight and local power condition, we will send complete datasheet and competitive factory offer for your reference.
