| Categories | PVC Profile Extrusion Line |
|---|---|
| MOQ: | 1 SET |
| Delivery Time: | 45 WORKING DAYS |
| Machine Length: | 20m |
| Model Number: | LB-65/28 |
| Extrusion Capacity: | 180kg/h |
| Supply Ability: | 15 SETS PER MONTH |
| Width: | 200-600mm |
| Brand Name: | LB |
| Calibration Table Length: | 300MM |
| Payment Terms: | L/C,T/T |
| Single Screw Extruder: | SJ 65/28 |
| Mats Materials: | PVC |
| Price: | USD,EUR |
| Warranty Time: | 18 Months |
| Dimentions: | 20*2.5*3m |
| Certification: | CE,ISO |
| Place of Origin: | ZHANGJIAGANG |
| Frame Wide: | 300mm wide |
| Machinedimensions: | Depends on model, e.g., 10m x 1.5m x 2m |
| Packaging Details: | STANDARD PACKAGE |
| Control: | PLC TOUCH SCREEN |
| Plastic Processed: | Polystyrene |
| Inverter Brand: | ABB |
| Company Info. |
| Zhangjiagang Langbo Machinery Co. Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
PVC is extensively used to produce profiles for windows, technical profiles, and door profiles due to its excellent weathering resistance, impact strength, and durability. PVC provides outstanding insulation for heat and noise while maintaining very low maintenance costs.
LANGBO MACHINERY offers both lead-based and lead-free stabilizers that provide excellent heat and UV resistance to PVC profiles. Our stabilizer system delivers higher mechanical strength, excellent whiteness, and superior color stability. The one-pack system is specially designed with quality additives to ensure smooth extrusion with consistent luster and finish.

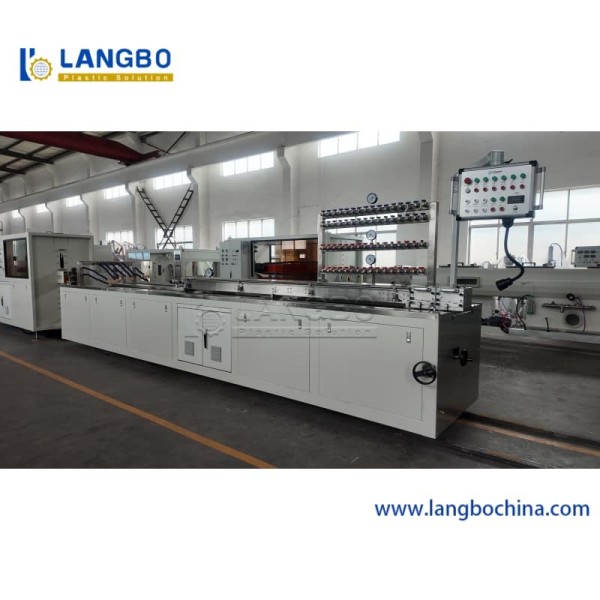

| Item | Equipment | Quantity |
|---|---|---|
| 1 | Screw feeder | 1 set |
| 2 | SJSZ-65/132 extruder | 1 set |
| 3 | Vacuum calibration table | 1 set |
| 4 | Haul off machine | 1 set |
| 5 | Cutter | 1 set |
| 6 | Stacker | 1 set |
| 7 | Mould | 1 set |
The extruder serves as the "heart" of the production line, determining both output capacity and energy consumption. The table below displays screw standards for different production levels.
| Model | SJZ45 | SJZ51 | SJZ65 | SJZ80 | SJZ92 |
|---|---|---|---|---|---|
| Screw diameter (mm) | 45/100 | 51/105 | 65/132 | 80/156 | 92/188 |
| Screw rotation speed (r/min) | 4-45.5 | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 |
| Effective length of screw (mm) | 1000 | 1050 | 1430 | 1800 | 2520 |
| Main motor power (kW) | 15 | 22 | 37 | 55 | 90 |
| Barrel heating power (kW) | 12 | 18 | 24 | 36 | 48 |
| Capacity (kg/h) | 95 | 110 | 250 | 380 | 520 |
| Central height (mm) | 1000 | ||||
| Net Weight (kg) | 3000 | 3200 | 5000 | 6500 | 7500 |
|
