| Model Number: | H4343DA |
| MOQ: | 1pc |
| Product name: | DR panel |
| Delivery Time: | 7-10 days after payment |
| Active Area: | 430 x 430 mm |
| Supply Ability: | 50 pcs per month |
| Certification: | ISO,CE |
| Packaging Details: | in carton box |
| Adapter In: | AC 100-240V,50-60Hz |
| Brand Name: | HUATEC |
| Place of Origin: | China |
| Model: | H4343DA |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

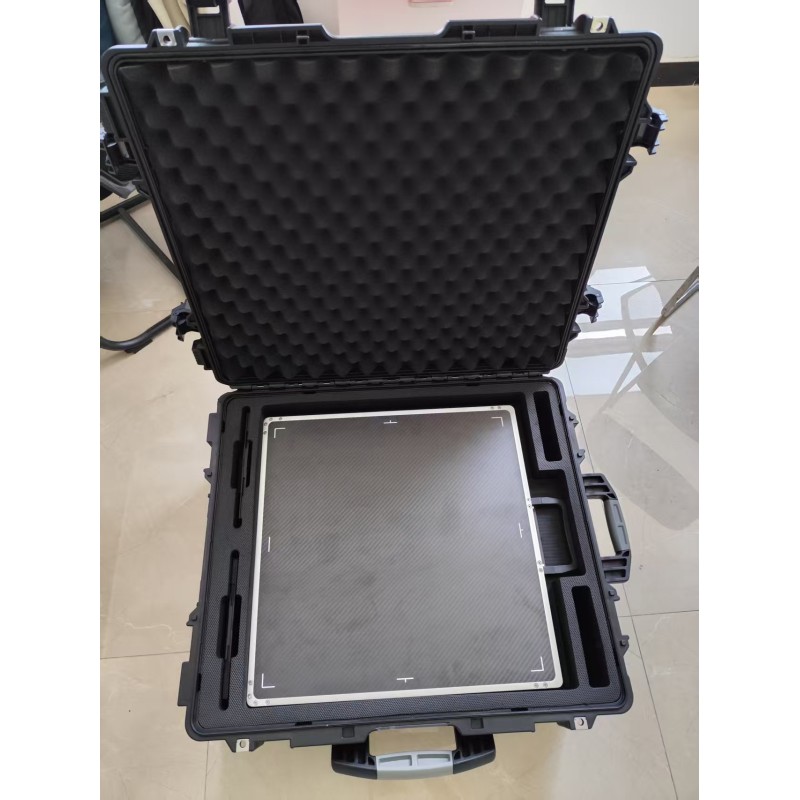

DR Panel and Non-Destructive Testing Lightweight Wireless Detector Based on Amorphous Silicon(a-Si)
Sensor
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:TI |
| Active Area | 430 x 430 mm |
| Resolution | 3072x 3072 |
| Pixel Pitch | 139 μm |
Power Supply & Battery
| Adapter In | AC 100-240V,50-60Hz |
| Adapter Out | DC 24V,2.7A |
| Power Dissipation | <20 W |
Image Quality
| Limiting Resolution | 3.5 LP/mm |
| Energy Range | 40-160 KV |
| Dynamic Range | ≥84 dB |
| Sensitivity | ≥0.54 LSB/nGy |
| Ghos | <1% 1st frame |
| DQE | 42% @(1 LP/mm) 28% @(2 LP/mm) |
| MTF | 68% @(1 LP/mm) 38% @(2 LP/mm) 20% @(3 LP/mm) |
Electricals and interface
A/D Conversion 16 bits
Data Interface Gigabit Ethernet
Frame rate 1x1 4fps/2x2 15fps/3x3 25fps
Exposure Control Free Run/SYNC Acquire
Mechanical
Dimension 460 × 460 × 14.8 mm
Weight 3.8kg
Material Aluminum and magnesium alloys
Front Panel Carbon fiber
Enviromental
Temperature 10-35°C (operating);-10~50°C (storage)
Humidity 30-70% RH (non-condensing)
Ingress Protection IP51

|
|
