Five Axis Milling Impeller API 672 Standard Centrifugal Impeller

High Precision Custom Five-Axis Integrated Milling Closed Centrifugal Impeller
High precision fully customized five-axis linkage integrated milling closed centrifugal impeller with blade profile tolerance ≤ ±0.02mm, fully compliant with API 672 standard.
Technical Specifications
This high precision five-axis integrated milling closed centrifugal impeller utilizes Ti-6Al-4V titanium alloy integral additive manufacturing (LPBF) process, achieving seamless integrated structure. Blade profile tolerance is strictly controlled within ±0.02mm, fully complying with API 672 5th edition manufacturing specifications for complete centrifugal compressors used in petrochemical and natural gas industries.
Key Performance Features:
  • Five-axis linkage CNC platform with bi-directional compensation strategy
  • Tool axis forward tilt: 12°±2° and lateral tilt: 8°-10°
  • Online laser thermal drift real-time correction: ±0.004mm
  • Double row groove five-axis plum milling efficient rough machining path
  • Thin-walled blade deformation under high cutting force: ≤0.05mm
  • G0.4 level dynamic balancing with residual unbalance ≤0.1 g*mm/kg
  • Three-dimensional laser scanning morphology reconstruction: accuracy ±2μm
  • X-ray residual stress detection and surface roughness Ra ≤0.4μm full inspection
Manufacturing Capabilities

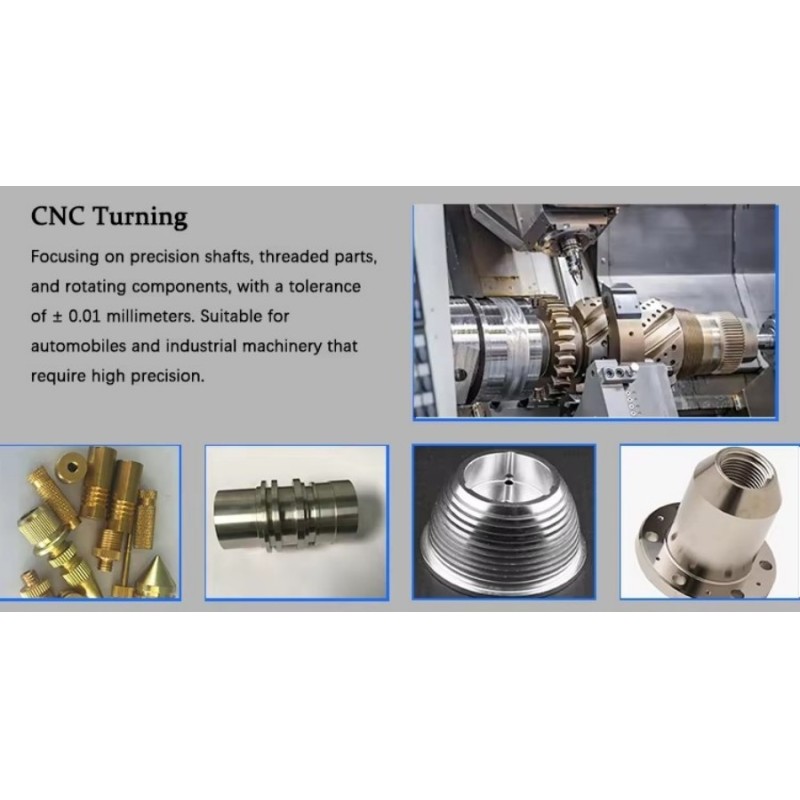

Processing TechnologyCNC machining, CNC milling, CNC turning, 3-axis to 5-axis machining, large gantry five-axis, wire electrical discharge cutting, laser cutting, drilling, bending, stamping, die casting, vacuum casting, injection molding, rapid prototyping, sheet metal fabrication, and multi-step processing
Processed MaterialsIron, aluminum, stainless steel 304, 346L, titanium alloys TC4, TC11, TC21, TC22, superalloy GH4169, ductile iron, and customer-specified metal materials for processing and casting
Precision Tolerance±0.01 mm
Surface RoughnessRa 0.8-1.6 μm
Heat Treatment & Surface HardeningAnnealing, tempering, quenching, surface hardening (carburizing, carbonitriding), nitriding (gas, ion/plasma), induction hardening, flame hardening, vacuum heat treatment, low-temperature treatment
Surface TreatmentAnodizing, bead spraying, wire mesh, PVD electroplating, zinc/nickel/chromium/titanium electroplating, brushing, painting, powder coating, sandblasting, passivation, electrophoresis, electropolishing, embossing, laser/etching/engraving
Quality Assurance
Products undergo multi-layer quality inspection before leaving the factory. For five-axis five-linkage machining centers with error of ±0.02mm, we also provide dynamic balance accuracy and overspeed testing.
Certification: ISO 9001
Additional Services
Packaging: Customized packaging to prevent damage during transportation
Logo: Custom logo available
Minimum Order Quantity: MOQ = 1
Processing Method: Customize according to provided CAD drawings (2D/PDF/CAD/DWG/DFF) and 3D (IGES/STEP/VDA)
Applications: Natural gas desulfurization, chlor alkali electrolysis, and MVR evaporation systems - achieving continuous operation for over 12,000 hours without failure
