Compact Automatic Edge Banding Trimming Machine 7KW Woodworking
Equipment
The 5-function edge banding machine is a compact, high-efficiency
and high-performance woodworking equipment tailored for small and
medium-sized furniture producers. Integrating five core functions
including gluing, end trimming, trimming, scraping and polishing,
the machine can create smooth, firm and aesthetic edge finishes for
various panel materials. It delivers industrial-standard processing
effects with simple operation and easy daily maintenance, serving
as a cost-effective and high-performance option for small and
medium processing workshops.
Product Overview
This edge banding machine is compatible with multiple edge banding
materials such as PVC, ABS, melamine and natural wood veneer,
featuring wide adaptability for different panel processing. It
works perfectly with MDF, plywood, particleboard and laminate
boards, achieving tight bonding and delicate edge finishing for
every workpiece. Adopting a robust frame and high-precision parts,
the equipment delivers stable operation and outstanding durability.
With an ergonomic structure and intuitive control system, it allows
operators to flexibly adjust temperature, feeding speed and cutting
accuracy, ensuring stable and professional processing results at
all times.
Technical Specifications
| Model | BH-368F | Edge Thickness | 0.3-3mm |
|---|
| Motor Power | 7KW | Minimum Width of Board | 50mm |
|---|
| Machine Size | 3500X750X1500mm | Air Pressure | 0.6-0.8mpa |
|---|
| Panel Thickness | 10-60mm | Weight | 1000kg |
|---|
| Feed Speed | 18~24m/min | Weight After Packaging | 1100kg |
|---|
Main Features
Glue Pot System
The machine is equipped with a high-performance hot melt glue pot that provides even heating and consistent glue flow. This ensures
that adhesive is applied uniformly along the panel's edge,
resulting in strong bonding and smooth surface coverage. The glue
system helps eliminate gaps or weak spots, significantly improving
the overall durability and visual appearance of the finished
product.
End Trimming
The end trimming module accurately trims redundant edge banding
from the front and rear ends of panels. It ensures neat, flush and
seamless edge alignment for every workpiece. Equipped with
wear-resistant guide rails and high-precision cutting blades, the
unit maintains outstanding trimming accuracy even during
long-duration continuous production.
Trimming
Designed for fast edge shaping, the trimming system strips off
surplus edge materials to fit the natural contour of panels. Its
high-speed motor operates with low vibration to deliver clean and
precise cuts, optimizing processing accuracy and prolonging the
service life of cutting tools. This pre-trimming procedure lays a
solid foundation for subsequent fine finishing work.
Scraping
Following the trimming process, the scraping unit removes tiny
blemishes and residual glue on panel edges. This critical procedure
ensures uniform and professional edge presentation. It smooths out
uneven edge surfaces, improving both the visual effect and touch
texture of finished products to deliver a high-grade furniture
appearance.
Polishing
As the final finishing step, the polishing system adopts double
buffing wheels to grind and smooth edges into a sleek, glossy
finish. Beyond enhancing the ornamental effect, it forms a
protective layer on edges to resist scratches and abrasion. The
processed edges fully meet the high aesthetic and durability
requirements of modern furniture manufacturing.
Key Advantages
- High Efficiency and Productivity: This all-in-one machine combines five core edge banding processes
into one compact device, greatly optimizing overall working
efficiency. It supports uninterrupted continuous operation with
little manual operation required, effectively cutting down
production cycle time and labor expenses.
- Precision and Consistency: Every working procedure from gluing to final polishing is
precisely engineered with high-standard configurations. Equipped
with an advanced control system, the equipment delivers uniform
processing results for mass production, keeping stable product
quality that complies with international woodworking industry
norms.
- Durable Construction and Reliable Performance: Adopting premium mechanical accessories and reinforced steel frame
structure, the machine is specially built for long-term industrial
working scenarios. Its sturdy structural design effectively lowers
vibration during high-speed operation, ensuring stable running
status and prolonging the overall service life of the equipment.
- User-Friendly Operation: Featuring a simplified control panel and flexible adjustable
parameters, the machine allows operators to freely regulate
temperature, glue flow rate and trimming speed. Operators can
master efficient and safe machine operation quickly without
receiving complicated professional training.
- Compact Design and Easy Maintenance: The 5-function edge banding machine adopts a space-saving
integrated structure, perfectly adapting to the layout demands of
small and medium-sized processing workshops. It features simple
daily maintenance procedures with easily cleanable components and
easily accessible spare parts, reducing equipment downtime and
daily operating costs.
- Strong Adhesion and Perfect Finishing: Benefiting from the upgraded glue pot system and precise trimming
structure, the machine achieves ultra-strong bonding performance
and flawless seamless edge finishing. The refined polished edge not
only improves product durability but also optimizes visual
appearance, making it ideal for high-grade furniture manufacturing.
Applications
The 5-Function Edge Banding Machine finds extensive application in
diverse woodworking and furniture manufacturing scenarios. It fits
perfectly for:
- Furniture Manufacturing: Great for edge sealing of cabinets, wardrobes, office desks,
tables, drawers, shelves and other panel-type furniture. Smooth,
gap-free edge treatment improves service life as well as visual
effect.
- Interior Decoration Projects: Applied in the fabrication of decorative wall panels, door frames
and indoor fittings. It delivers professional surface effects
compliant with contemporary design requirements.
- Woodworking and Cabinet Making: Adaptable to edge processing on MDF, particleboard, plywood and
laminated boards. It creates neat, accurate edges to prevent
moisture intrusion and edge chipping.
- Small and Medium Workshops: Simple operation and compact structure make it well-suited for
small furniture workshops, custom carpentry studios and training
institutions. It delivers industrial-level performance with cost
advantages.
- Export and Commercial Production: Built to satisfy global quality specifications. The 5-function
unit serves as a trustworthy option for foreign furniture
manufacturers and distributors looking for long-lasting, low-upkeep
and high-productivity edge banding equipment.
Component Overview
Glue Pot
The glue pot is responsible for heating and melting adhesive, and
evenly coating glue onto the edge of boards. Stable temperature
control ensures uniform glue application, which realizes tight
bonding between edge banding tape and panels and avoids degumming.
Glue Pot System
End Cutting Unit
The end cutting mechanism cuts off the excess edge tape protruding
at the front and rear ends of workpieces. It trims the edge tape
flush with both ends of the panel to obtain neat, flat end
surfaces.
End Cutting Unit
Trimming Unit
The trimming assembly precisely shapes the upper and lower edges of
edge banding tape. It removes redundant material and creates smooth
rounded transition arcs between the tape and panel surface for
exquisite appearance.
Trimming Unit

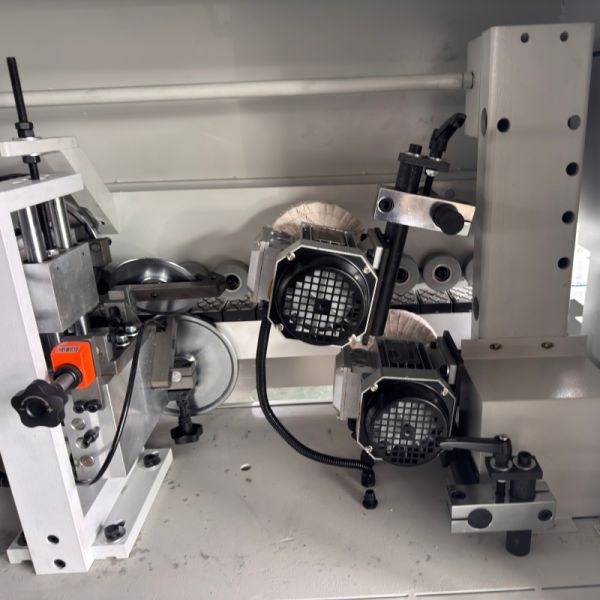

Buffing Unit
The buffing wheel polishes and cleans the trimmed edges. It
eliminates tiny scratches and burrs left after trimming, making the
edge surface glossy and improving the overall finish effect.
Buffing Unit
