Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine

Categories Wire Fatigue Tester
Brand Name: Infinity Machine Inc.
Model Number: IC2274
Certification: ISO
Place of Origin: Made In China
MOQ: 1
Price: Negotiate
Payment Terms: T/T
Supply Ability: 50 sets per month
Delivery Time: 35~45 days after order confirmed
Packaging Details: Clear sheet+sponge+wood carton
Product name: Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine
Model: IC2274
Application: Robotic cable torsion test machines are suitable for the torsion test of multi-core cables and communication cables.
Standards: Complies with standards such as those of the China Robot Industry Alliance, CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Test Methods.
Working station: 4
orsion angle: 1~±180° /±270° / ±360° (Customizable)
Test speed: 1~30 cycles/min (Adjustable)
Power: AC220V or AC120V
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Robot Arm Cable Repeated Torsion Testing Equipment Cable Test Machine

Robot Arm Cable Repeated Torsion Testing Equipment
Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.
Product Overview
Model: IC2274
Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots -- Part 2: Test Methods
Application
Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.
Technical Specifications
ItemSpecification
Test Station4 stations (Customizable)
Sample Diameter3~15mm (Customizable)
Specimen Test Length500~1000mm (Customizable)
Sample Torsion Speed1~30 cycles/min (Adjustable)
Torsion Angle1~±180° /±270° / ±360° (Customizable)
Control MethodTouch screen control
Counting Digits0-99999999 cycles
MotorServo motor (Japan)
Machine WeightApprox. 400 Kg
Working Power SupplyAC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power1.8KW
Equipment DimensionsW1700*D740*H1700mm
Product Appearance
Robotic Cable Torsion Test Machine - Front View
Robotic Cable Torsion Test Machine - Front View

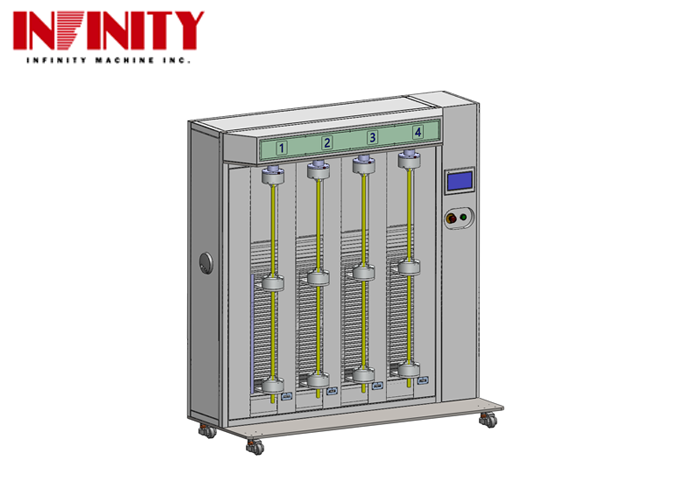

Robotic Cable Torsion Test Machine - Side View
Robotic Cable Torsion Test Machine - Side View
Packaging and Shipping
  • Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
  • Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Related Product Recommendation: Contact our sales team for personalized product recommendations based on your specific testing requirements.
