Product Overview

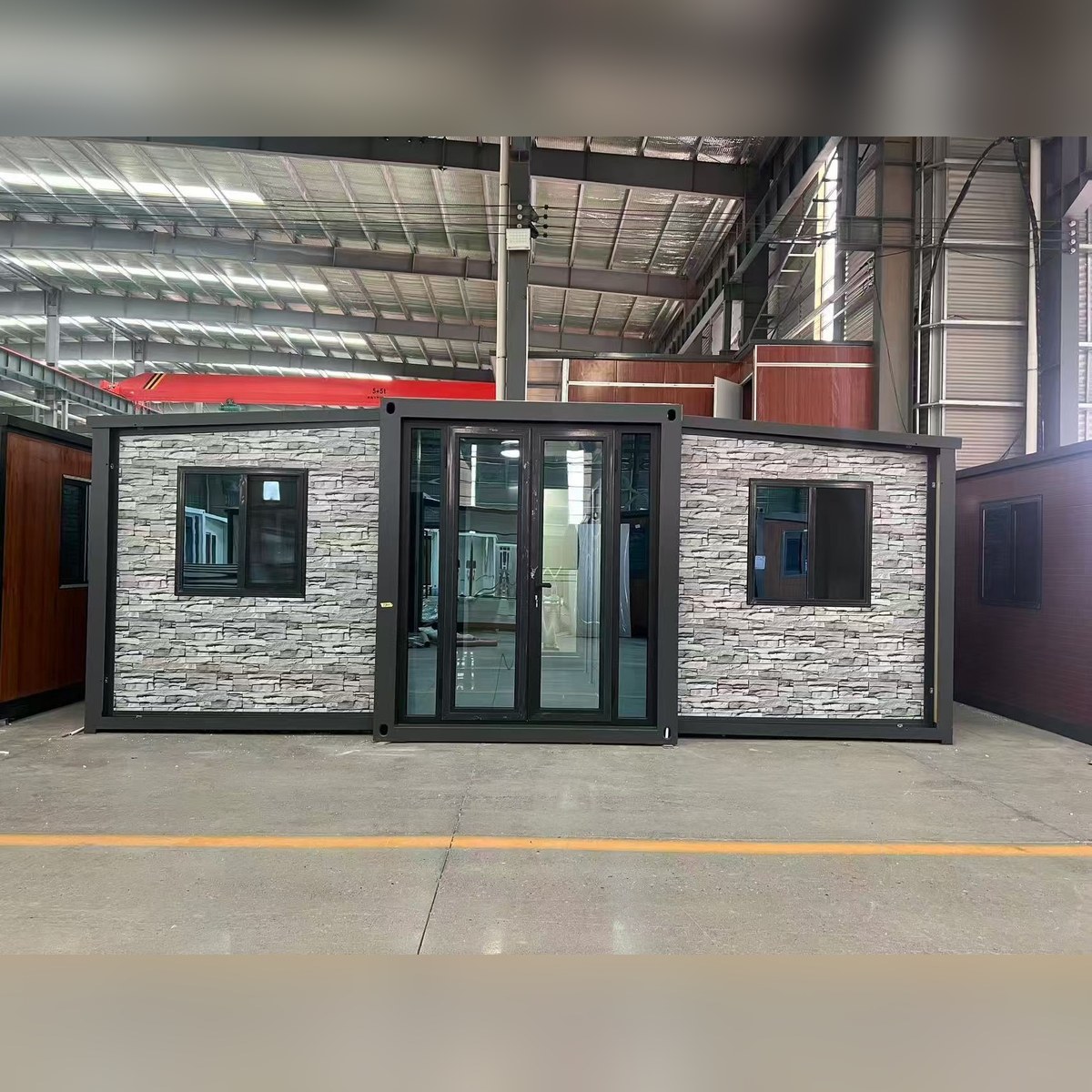

This 20ft Expandable Container House combines a textured stone-look
facade with a deep charcoal structural frame, giving a folding
modular building the solid, permanent presence of conventional
masonry architecture. The exterior cladding reproduces the layered
surface of natural stacked stone, while the dark grey outlines and
full-height sliding glass doors keep the elevation crisp and
contemporary. Placed on timber decking beside a lawn and white
picket fence, the extended unit reads as a permanent garden guest
house rather than temporary site accommodation.
Every unit is built by Global House (Suzhou) Co., Ltd. The
load-bearing structure is a Q235 hot-dip galvanized steel chassis,
which resists corrosion, termites and fire far better than timber
framing. In its extended state the house measures 5900 × 6480 ×
2480 mm and delivers 38.2 m² of usable interior area; folded for
transport it reduces to a 5900 × 2200 × 2480 mm container
footprint. Because two complete sets load into one 40HQ container,
ocean freight is divided across two buildings, which keeps the
delivered cost per square metre low for distributors and project
buyers.

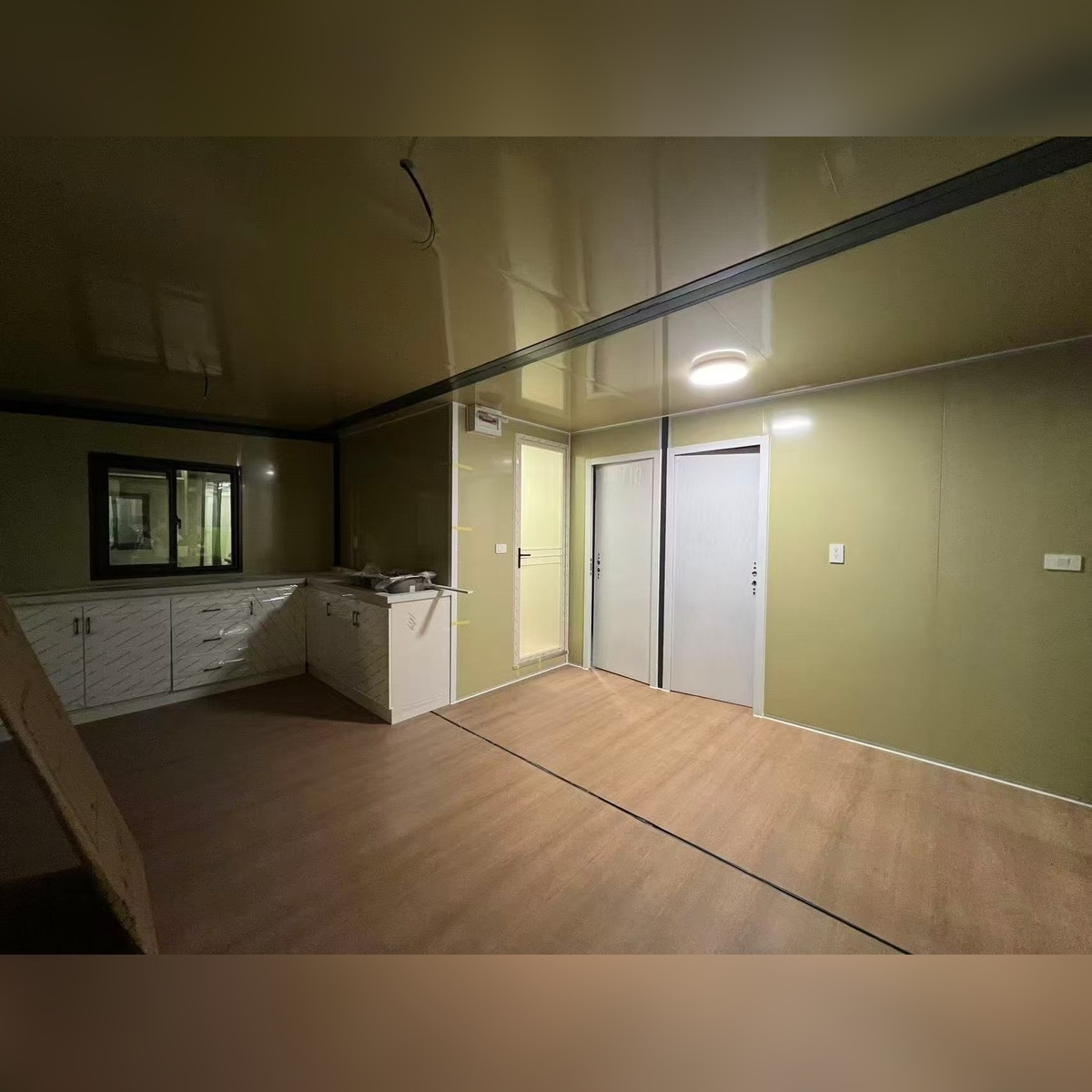

The interior arrives ready to furnish: a fitted kitchen cabinet run
with working surface, a separate bedroom door, pre-installed
electrical wiring with a wall-mounted distribution box, LED ceiling
lighting, and a wood-grain PVC floor throughout. On site, a
two-person crew with basic lifting equipment can complete the
unfolding and sealing in roughly three hours — no poured
foundation, welding or specialist trades required.
Specifications & Loading Capacity
| Type | Extended Size L*W*H (mm) | Folded Size L*W*H (mm) | Area | 40HQ Loading | Shipping Weight |
|---|
| 10FT Model | 2950 * 6480 * 2480 | 2950 * 2200 * 2480 | 20 m² | 4 SETS | ~1.8 - 2.0 Tons |
| 20FT Model | 5900 * 6480 * 2480 | 5900 * 2200 * 2480 | 38.2 m² | 2 SETS | 3.4 Tons |
| 30FT Model | 9000 * 6480 * 2480 | 9000 * 2200 * 2480 | 58.3 m² | 1 SET | ~4.5 Tons |
| 40FT Model | 11800 * 6480 * 2480 | 11800 * 2200 * 2480 | 76.4 m² | 1 SET | 5.4 Tons |
Detailed Material Specifications
- Main Steel Frame: Q235 Hot-dip galvanized steel, 2.5mm - 3.0mm thickness, with 6mm
corner head liner plates for maximum structural safety.
- Wall Panels: External wall: 75mm EPS sandwich panel standard (Upgradable to
Rock Wool for premium fire resistance). Internal partition: 50mm
EPS sandwich panel.
- Roof System: External top: 0.35mm corrugated color steel sheet. Insulation:
50mm EPS sandwich panel. Internal ceiling: 200-type aesthetic
ceiling board.
- Flooring: Subfloor: 18mm fireproof magnesite board (moisture-proof &
insect-resistant). Surface: 2.0mm wear-resistant PVC floor leather
(Upgradable to 4.0mm SPC flooring).
- Doors & Windows (Optional Upgrade): PVC casement windows (with anti-insect screens) + Aluminum
security door.
Available Upgrades: Broken bridge aluminum entrance doors (double glass), KFC doors,
aluminum alloy sliding doors, broken bridge aluminum windows,
plastic steel sliding windows, ceiling-to-floor glass windows, etc.
Color Customization: Wall panel colors: White, Red Wooden, Dark Gray. Frame colors:
White, Black, Dark Gray. Optional: 16mm metal carved board as
exterior wall decoration.
Target Applications
Garden and backyard guest houses; resort and glamping
accommodation; homestay and short-let rental units; construction
site offices and dormitories; temporary clinics and welfare pods;
retail kiosks and roadside coffee shops; staff housing for mining,
agriculture and energy projects.
How It Works (4-Step Deployment)
1. Unloading: Lift the folded unit onto leveled, hardened ground or simple
concrete piers.
2. Unfolding Wings: Release the safety latches, lift the two roof sections in
sequence, and then lower the floor sections.
3. Fixing Walls: Push the folded side walls outward to a vertical position and
install the corner connectors.
4. Sealing: Apply prefabricated sealing strips and high-quality structural
adhesive at joints to ensure a weather-tight finish.
Frequently Asked Questions
Q1: Are you a manufacturing factory or a trading company? Where is
your factory located?
A: We are a direct manufacturing factory. Our plant is located in
Zhenze Town, Wujiang County, Suzhou City, Jiangsu Province, China.
We welcome global clients and third-party inspection agencies to
visit us at any time.
Q2: What is the lifespan of this container house? Is it stable
under extreme weather?
A: Under standard conditions, the galvanized steel frame has a
lifespan of 15 to 20 years. Structurally, it is extremely safe;
when properly anchored to a foundation, it can resist winds up to
200km/h and withstand up to a magnitude-9 earthquake outside.
Q3: Can the electrical and plumbing systems meet my local country's
strict compliance standards?
A: Yes. We regularly export to regions with strict compliance
requirements. We can pre-install electrical wiring, sockets, and
plumbing systems that fully meet specific local certifications
(such as CE for Europe or AU/NZS for Australia and New Zealand) to
ensure fast council approval.
Q4: How long does it take to build? Do I need professional
engineers?
A: No professional technicians are needed. We provide comprehensive
installation videos and manuals. Generally, 2 workers can master
the operation and complete a standard room setup within about 3
hours using basic lifting equipment.
Q5: What is your standard delivery time?
A: Delivery time depends on order quantities and customization. For
standard sizes and configurations, delivery preparation generally
takes 15 to 20 days after receiving the deposit (with standard
scaling varying within 5-15 days depending on exact queue lines).
Q6: What should I provide to get a customized layout or design
scheme?
A: It's very easy! If you have a sketch drawing or reference photo,
you can send it to us directly. If not, simply notify us of your
requirements, such as the total area, target usage, room/sanitary
layout, and material preferences, and our design team will provide
a detailed scheme and quotation.
