Steel Structure Building Storage with Efficient Space and Rapid Installation System

Product Description

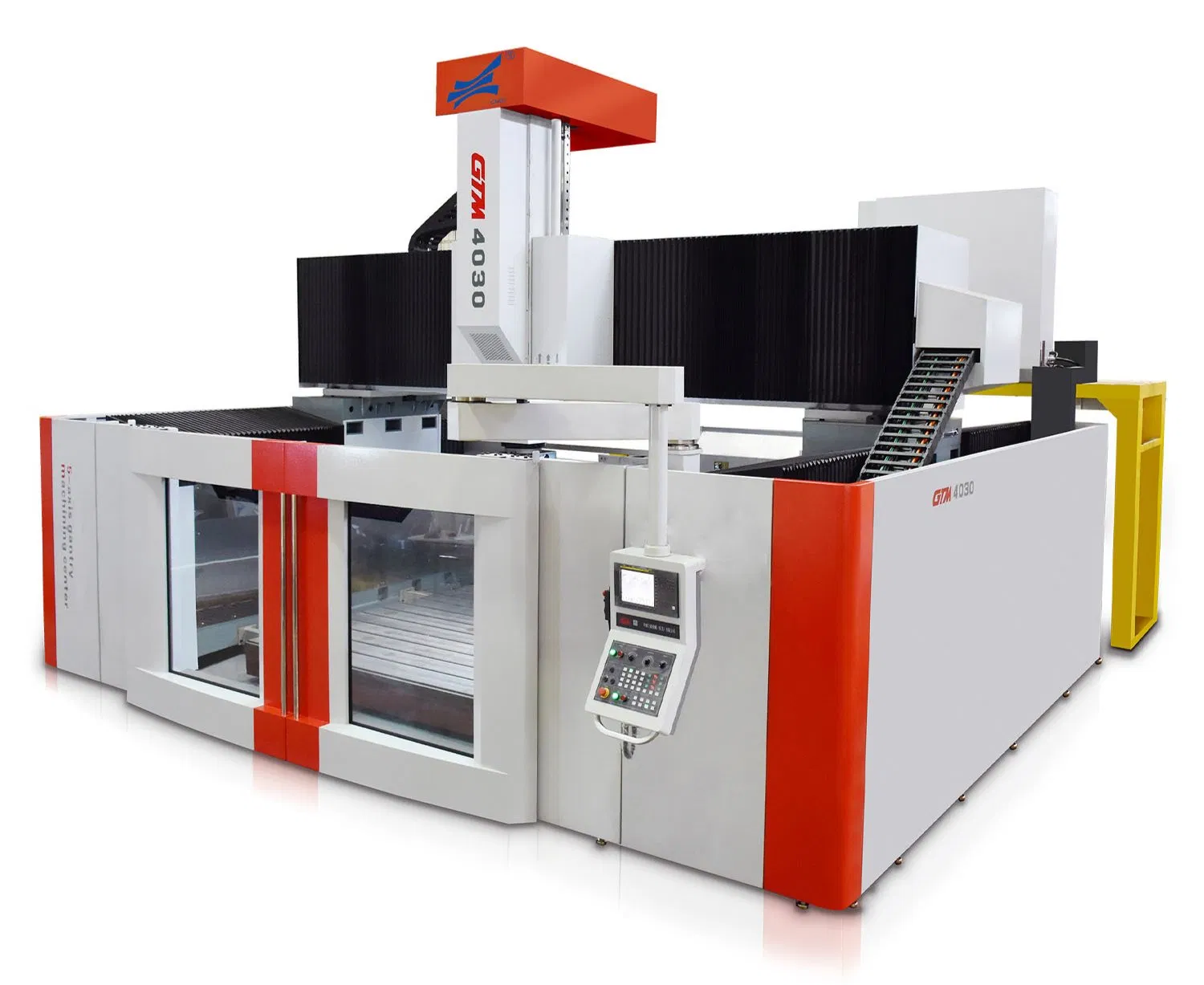

This is a series of high-performance CNC machine tools, including models such as GTM3020, GTM3030, GTM4030, and GTM4080. These machines are engineered with precise axis travels (X, Y, Z axes) to ensure accurate positioning during machining operations. They boast a spacious worktable, providing ample room for handling various workpieces. The s-pindle is powerful, enabling efficient cutting and milling tasks.

Equipped with advanced milling heads, these machine tools offer excellent angular positioning accuracy, allowing for c-omplex machining operations. They also feature fast traversing speeds, which contribute to enhanced productivity. An optional tool magazine is available, facilitating automatic tool changes and further improving operational efficiency. Driven by the reliable FANUC 0i - MF PLUS CNC system, these machine tools provide stable and precise control, making them well-suited for a wide range of industrial applications, from precision component manufacturing to large-scale pr-oduction tasks.

Model	GMT3020	GMT3030	GMT4030	GMT4080
Travel
X axis	2000 mm	3000 mm	3000 mm	8000 mm
Y axis	3000 mm	3000 mm	4000 mm	4000 mm
Z axis	1000 mm	1250 mm	1250 mm	1250 mm
Spindle nose to worktable	250 - 1250 mm	400 - 1650 mm	400 - 1650 mm	400 - 1650 mm
Distance between the columns	4000 mm	4000 mm	5000 mm	5000 mm
Worktable
Worktable size	2500 x 2000 mm	2500 x 2800 mm	3500 x 2800 mm	3500 x 8000 mm
T - slot	22 x 250 mm	22 x 250 mm	22 x 250 mm	22 x 250 mm
Max. loading capacity	8 ton/m²	8 ton/m²	8 ton/m²	8 ton/m²
Spindle
Spindle bore taper	BT50	BT50	BT50	BT50
Max. spindle speed	5000 rpm	5000 rpm	4000 rpm	4000 rpm
Spindle power	22/26 kW	22/26 kW	22/26 kW	22/26 kW
Milling Head
Rotating angle	A = ±135°; C = ±180°	A = ±135°; C = ±180°	A = ±180°; C = ±180°	A = ±180°; C = ±180°
Angle positioning accuracy	A = ±3 sec; C = ±3 sec	A = ±3 sec; C = ±3 sec	A = ±5 sec; C = ±5 sec	A = ±5 sec; C = ±5 sec
Minimum indexing unit	2.5° / 1°	2.5° / 1°	0.001°	0.001°
Maximum spindle torque	1100 N.m	1100 N.m	600 N.m	600 N.m
Speed
Rapid traverse rate	10 m/min	10 m/min	10 m/min	10 m/min
Machining speed	10 m/min	10 m/min	10 m/min	10 m/min
Tool magazine (Optional)
Pocket quantity	32 pcs / 64 pcs	32 pcs / 64 pcs	32 pcs / 64 pcs	32 pcs / 64 pcs
Max. tool diameter	125 mm	125 mm	125 mm	125 mm
Without adjacent tool	250 mm	250 mm	250 mm	250 mm
Max. tool weight	20 kg	20 kg	20 kg	20 kg
Size & Weight
Total power requirement (L x W x H)	6500 x 7500 x 5700 mm	6500 x 8500 x 5900 mm	7500 x 8500 x 5900 mm	7500 x 13500 x 5900 mm
Machine weight	45 ton	50 ton	55 ton	70 ton
CNC system	FANUC 0i - MF PLUS	FANUC 0i - MF PLUS	FANUC 0i - MF PLUS	FANUC 0i - MF PLUS
The above parameters for reference only, subject to Technical Agreement.

Company Profile

steel structure warehouse

The steel structure warehouse is an ideal choice in the industrial warehousing field. It is constructed with high-quality s-teel, featuring a stable structure, which can provide a safe and reliable storage space for various goods. In terms of sp-ace utilization, it can achieve a large-span design, without too many columns in the middle, facilitating the storage of g-oods and the operation of handling equipment, and adapting to warehousing needs of different scales and types. During construction, most components are prefabricated in the factory, and the on-site assembly is convenient, enab-ling rapid completion of construction and helping enterprises to put it into use quickly. Moreover, steel can be recycled, which conforms to the concept of green environmental protection, and the maintenance cost is also low in long-term u-se. At the same time, various supporting facilities such as ventilation, lighting, and fire protection can be flexibly equip-ped according to actual needs, meeting various scenarios such as normal temperature storage and special goods stor-age, and creating an efficient and flexible warehousing solution for enterprises.

Steel Type	Carbon Structural Steel	Main Steel Frame	H Steel, Z or C Purlin
Building Material	Steel Column, Steel Beam, Steel Truss	Surface Treatment	Painted or Galvanized
Connection	Bolt Connection or Welded Connection	Downspout	PVC Pipes
Color	All Color /as Customer Required	Window	Aluminum Alloy Window or PVC
Cladding System	Sandwich Panel, Prefab Steel Sheet	Application	Steel Workshop, Warehouse,Cold storage, Steel Fabricated House, Frame Part, Steel Structure Bridge
Type	H-Section Steel	Forming	Hot-Rolled Steel
Member	Steel Column	Type of Steel For Building Structure	H-Section Steel
Carbon Structural Steel	Q235	Transport Package	Shipping Container
Origin	QingDao, China	HS Code	7308900000
Production Capacity	120000 Ton/Year

Name	Steel Structure Warehouse/ Workshop Building
Dimensions	Structure System	Portal Frame
	construction time	23 days finished 40000sqm warehouse installation
	main steel frame	H columns and beams with gray paint
	secondary structure	Z purlin with galvanized surface treatment
	support structure part	Tiebracing,bracing bars,angle steels,all these will improve the stability and durability of the whole structural building
	roofand wallcomponent	Rock wool Sandwich panel /Fiberglass Sandwich panel /steel sheet/polyurethane
	door	electric rolling door
Advantages	1. Lower cost with better quality.
	2. High safety performance.
	3. Easy to assemble and dismantle.
	4. Manufacture under complete quality control system - ISO9001.
	5. Installation with instruction of experienced engineers
	6. Non-pollution.
Quotation and Drawings	According to customers' requirements with for free
