| Categories | TFT LCD Display |
|---|---|
| Brand Name: | AISON |
| Model Number: | Z024Q20 |
| Certification: | ISO9001 / ISO14000/ROHS |
| Place of Origin: | Guangdong,China |
| MOQ: | 4~12usd/pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200k/month |
| Delivery Time: | 7 working days |
| Packaging Details: | Blister Package/Carton |
| Display Name: | 2.4 inch 240x320 IPS TFT LCD Module |
| Number of pixels: | 240x320 |
| Dimensional outline: | 42.72*59.46*2.3 mm |
| Active area: | 36.72*48.96mm |
| Interface: | SPI/ MCU/RGB |
| Brightness: | 1000 cd/m2 |
| Display mode: | Normally Black |
| Driver Controller: | ST7789V |
| Operating temp: | -20 to 70 degree |
| Storage temp: | -30 to 80 degree |
| Company Info. |
| Aison Technology (HK) Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

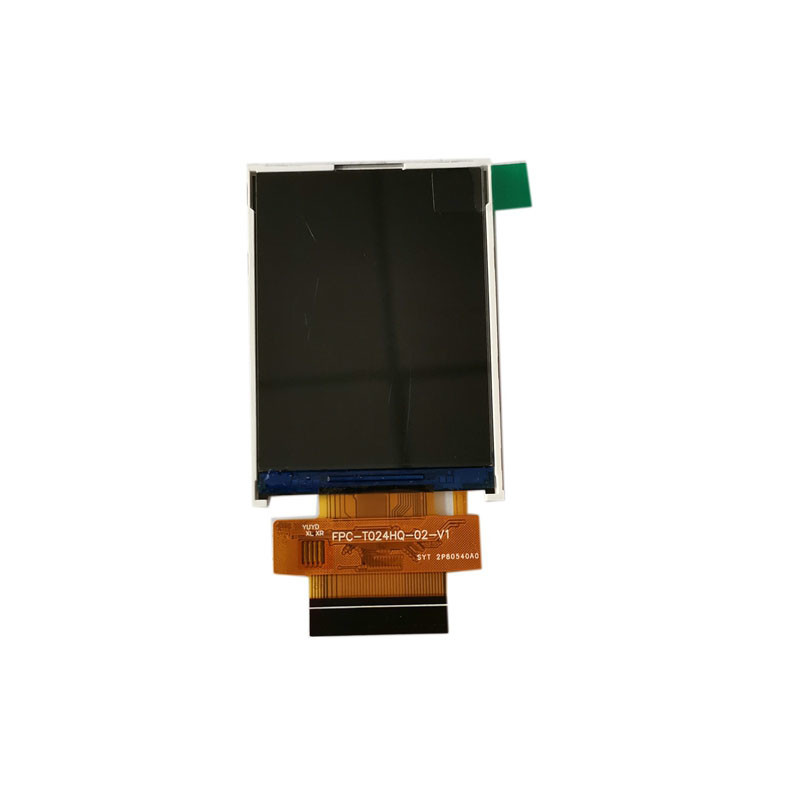

2.4 inch 240x320 IPS TFT LCD Module High Brightness 1000cd/m2 with SPI/ MCU/RGB Interface
The Z024Q20J is a high-performance 2.4-inch IPS TFT-LCD display module designed for optimal visual clarity and versatility. With a resolution of 240 x 320 pixels, this module delivers sharp and vibrant imagery. Equipped with the ST7789V controller IC, it supports multiple interfaces, including MCU8080, SPI, and RGB, offering flexibility for integration into various systems.
Featuring an IPS panel, the Z024Q20J provides a wide viewing angle of 80 degrees (typical) in all directions, ensuring clear visibility from multiple perspectives. Its contrast ratio of 500 (typical) enhances image quality, while its brightness of 1000 cd/m² (typical) ensures excellent visibility even in bright environments.
This TFT-LCD display operates in portrait mode and is built to withstand demanding conditions. The analog supply voltage (VCI) ranges from 2.5V to 3.3V, and the module can operate within a temperature range of -20°C to +70°C, with storage temperatures ranging from -30°C to +80°C. This makes it suitable for a wide range of applications and environments.
The Z024Q20J is an ideal choice for developers and manufacturers seeking a reliable, high-quality display solution for their embedded systems and applications.
General Data
| Model Name | 2.4 inch IPS TFT Display |
| Resolution | 240x320 |
| Model Size (W*H*T) | 42.72*59.46*2.3 mm |
| Display Area (W*H) | 36.72*48.96mm |
| Interface | SPI/MCU/RGB |
| Display Mode | Normally Black,Transmissive |
| Viewing Angles | 80/80/80/80 |
| Brightness | 1000 cd/m2 |
| Pin number | 45 |
| Drive IC | ST7789V |
| BACKLIGHT TYPE | 4 WHITE LED |
| Operating temperatures | -20 to 70 degree |
| Storage temperatures | -30 to 80 degree |

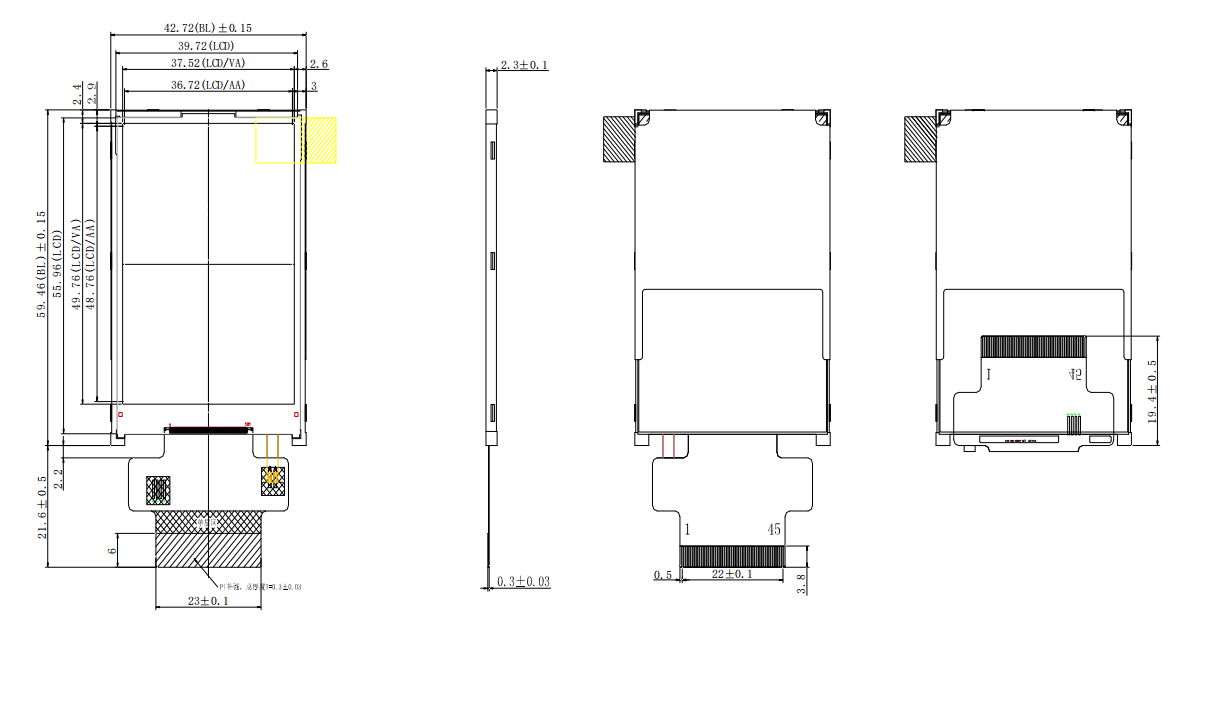

Drawing
Product Details
TFT Applications
This versatile display is suitable for various applications, including air quality testing, blood glucose measurement, MP3 players, home appliances, as well as specialized applications such as speedometers, safety monitoring systems, handheld devices, and dash cameras in compact industrial equipment.
|
