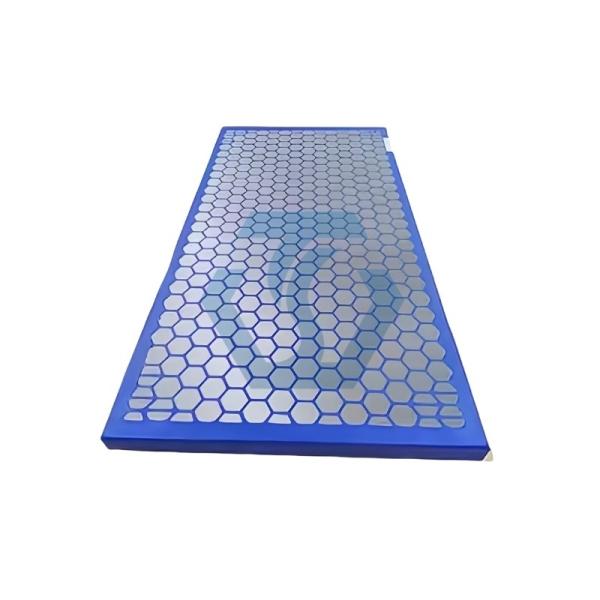

High Strength Steel Frame Shaker Screen For Oil Mud Vibrating Screen With Custom Mesh Range

________________________________________

Product overview:

The vibrating screen mesh, an accessory for oilfield drilling solids control equipment produced and sold by our company Huichi Petro, is the core filtering component of the oilfield drilling solids control system. It is like the "fine filter mesh" of the drilling mud treatment system. It is used to separate solid particles such as drill cuttings and rock cuttings from the drilling fluid through the coordinated work with the vibrating screen to ensure the cleanliness and circulation efficiency of the mud. Its high-strength screen cloth and precise opening design can effectively intercept 20-200 mesh impurities, ensure the stable operation of downstream equipment (such as centrifuges and desanders), and significantly reduce drilling fluid loss and operational risks.

________________________________________

Working principle:

When the drilling mud containing solid particles is transported to the vibrating screen surface, the vibrating screen generates high-frequency vibration. In this process, the vibrating screen mesh uses its own mesh structure to screen according to the particle size. Solid particles larger than the mesh size cannot pass through, and move along the screen surface under the action of vibration, and are finally discharged from the screen; while particles smaller than the mesh and the liquid phase pass through the screen to achieve preliminary separation of solid and liquid, laying the foundation for subsequent mud treatment.

________________________________________

Product advantages:

1. Compared with traditional screens, the life span is increased by 50% and the clogging rate is reduced by 80%;
2. Passed API RP 13C and ISO 13501 certification, suitable for harsh working conditions;
3. Support non-standard customization (size/mesh/material/opening rate).

________________________________________

Core functions:

1. Accurate grading and screening

The multi-layer stacked screen frame design supports 20-200 mesh dynamic grading filtration, which can efficiently separate solid impurities in drilling fluid, such as drill cuttings, sand particles, etc., and adapt to drilling needs in different formations.

The processing capacity is as high as 50-150m³/h, the screening efficiency is ＞95%, and the sand content of mud is reduced to less than 0.5%.

2. Intelligent anti-clogging and wear-resistant

High-tension polyurethane/stainless steel composite screen, tensile strength ≥800N/cm, wear-resistant life of more than 800 hours.

Equipped with an intelligent vibration control system, it can flexibly adjust the vibration frequency and amplitude according to the properties and processing requirements of the drilling fluid, achieve accurate screening, and improve processing efficiency.

3. Quick maintenance and adaptation

Modular snap-on installation, one person can complete the screen replacement in 3 minutes, and is compatible with mainstream brand vibrating screens (Derrick, SWACO, etc.). Whether it is a small land drilling rig or a large offshore drilling platform solid control equipment, you can find a suitable vibrating screen.

The screen surface inclination is electrically adjustable from 0° to 15°, and one-click matching the flow rate requirements of different working conditions.

4. Strong adaptability

It can be widely used in different types of drilling operations, including deep wells, ultra-deep wells, marine drilling, etc., to meet the drilling needs under various complex geological conditions.

________________________________________

Technical parameters:

________________________________________

Application scenarios:

The vibrating screens produced and sold by our company Huichi petro are widely used in various oilfield drilling operations, including but not limited to conventional drilling, directional drilling, horizontal drilling, offshore oilfield platforms, shale gas mining, geothermal energy development and other fields of mud treatment processes. It can effectively remove solid impurities in drilling fluid, improve the recycling rate of drilling fluid, reduce drilling costs, and ensure the safety and efficiency of drilling operations.

Primary solid phase particle separation of drilling fluid;

Fine cuttings filtration in shale gas/deep well drilling;

Impurity interception in mud recovery system;

Dehydration of drilling cuttings in environmental protection operations.

________________________________________

After-sales service commitment:

1. Technical support: The professional technical team is on call at any time to provide customers with comprehensive technical guidance on the selection, installation, commissioning and use of vibrating screens to ensure that customers use the products correctly and give full play to their performance advantages.
2. Quick response: Establish a 24-hour after-sales service hotline to respond to customer inquiries and fault feedback in a timely manner. For emergency situations, we promise to provide solutions in the shortest time and arrange technicians to rush to the site for processing if necessary.
3. Product warranty: Provide a reasonable product warranty period. During the warranty period, if the product is damaged or the performance is abnormal due to product quality problems, we will replace or repair it for customers free of charge, so that customers can use it without worry.

________________________________________

Product display:

________________________________________

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
