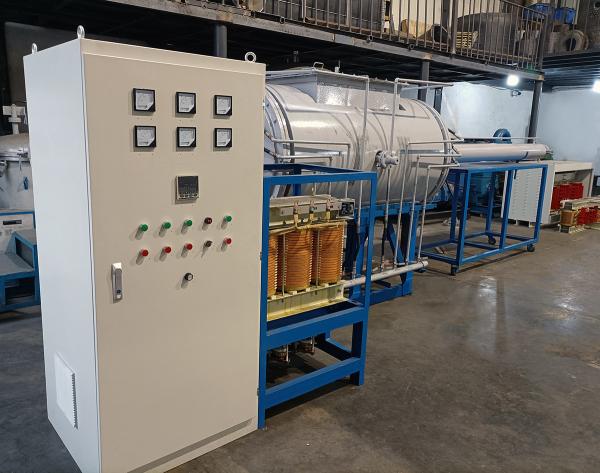

380V Three Phrase High Temperature Carbon Tube Furnace For Graphite Powder Purification

Product Usage:

Mainly used for purification of graphite powder and other high temperature treatment. Its operating temperature can reach 2800℃, and can work continuously for a long time. Good production efficiency, energy saving. With on-line temperature measurement and temperature control system, the temperature in the furnace can be monitored in real time and adjusted automatically.

Product Features:

1, The use of temperature up to 2800 degrees, good temperature uniformity, constant temperature area length, low failure rate of equipment operation.

2, Long service life of furnace tube, continuous production 20-30 days .

3, With infrared temperature measurement and temperature control system, real-time display and PID automatic control of the temperature in the furnace, the product quality is stable. At the same time to ensure the requirements of the product.

4, Adopt three-phase power supply mode, three-phase power balance, stable performance. Unlike carbon tube furnace using single-phase power supply, phase voltage imbalance, impact on the power grid, affecting the operation of other equipment.

5, The use of common temperature, the temperature can reach 3000℃, can work at 2600-2800℃ for a long time

6, The use of automatic feeding device, time control in and out of the material, high degree of automation, low labor intensity of workers, product high temperature treatment time is consistent.

7, The use of carbon felt as insulation material, no use of carbon black, convenient replacement of carbon tube, while clean.

8, Using the push boat production mode, can stop the furnace continuous production. Unlike the gap type (vertical furnace) furnace, there is no need to stop every furnace, and wait for its cooling to take out the material, low production efficiency, high energy consumption.

9, The material is in the boat, the material will not appear secondary pollution.

The product quantity of each boat is about 1.5 kg. The product quality can be sampled and tested in time, and the process can be modified according to the test results. No need to stop the furnace, less waste of materials.

11, Short heating time, up to 200℃/ hour.

12, The furnace body sealing is good, small loss of protective gas. All flanges and furnace covers are sealed with sealing strips.

13. The tank and flange of furnace body are made of stainless steel, without rust and with long service life.

14, Equipped with a vacuum pump for the replacement of gas in the furnace, short ventilation time, less gas consumption.

Main Technical Parameters :

    Hunan Jingtan Automation Equipment Co., Ltd. was founded in 2021, the production base Zhuzhou Guangjichang Technology Co., Ltd. was founded in 2014, is a high-tech enterprise integrating research and development, production, sales and service, and has become a famous leading manufacturer of thermal equipment in China.Now it has two factories,which covers 3500m2. The main products are vacuum sintering furnace, silicon carbide sintering furnace, high temperature graphitization furnace, vapor deposition furnace, high temperature carbon tube furnace, vacuum carbonization furnace, vacuum hot press furnace, vacuum induction melting furnace, etc. The equipment produced by our company is widely used in aerospace, electronics, transportation, machinery, metallurgy, cemented carbide, refractory metal, special ceramics, carbon carbon composite materials, semiconductor materials and solar cells and other dozens of processing and manufacturing industries and fields, and has won the trust and praise of the majority of users with high-quality products and perfect service.

     We have always adhered to the science and technology enterprise, continuous innovation, pay attention to cooperation with scientific research institutions and major universities, and develop a number of high-tech thermal equipment with the industry's leading level. Our company can design and manufacture non-standard thermal equipment according to user requirements, and provide customers with corresponding process technical support, so as to relieve all worries for users.

   The company has a number of utility model patent certification, and has ISO9001:2015 quality management certificate, can provide CE, UL and other product certificates for the equipment. In order to continuously meet customer needs, to provide "directional application, focus on development, Customized per customer’s requirements" efficient characteristic services. Our company has a number of domestic first cases, such as: chlorine gas sintering furnace (can make the product purity of 99.9999%), ultra-high temperature graphitization furnace temperature up to 3200 degrees, vacuum hot press furnace weight up to 800 tons.

    "Customer first, the pursuit of quality, continuous innovation, continue to lead!" It is the service purpose of Jingtan company;" Based in Zhuzhou, radiating China, facing the world "is our company's service concept. At present, our products are mainly exported to Europe, Middle East, Southeast Asia and other countries; in the domestic market has also won the praise of the majority of users, has been highly recognized by the industry. Hunan Jingtan Automation Equipment Co., Ltd. strives to become your most trusted manufacturer of high temperature equipment.
