| Categories | FPV VTX |
|---|---|
| Brand Name: | Kimpok |
| Model Number: | KP-12VTX8W |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Payment Terms: | T/T, PayPal, Alipay |
| Supply Ability: | 5000 piece/month |
| Delivery Time: | 1-3 working days |
| Packaging Details: | International standard packing |
| Type: | Wireless video transmission |
| Frequency: | 1.2Ghz |
| Transmit power: | 8W |
| Channel: | 8 Channels |
| Modulation Type: | FM |
| Video Format: | NTSC/PAL |
| Pit Mode: | Yes |
| Antenna Interface: | MMCX |
| Port: | Shenzhen |
| Power: | 10~36V |
| Company Info. |
| Kimpok Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

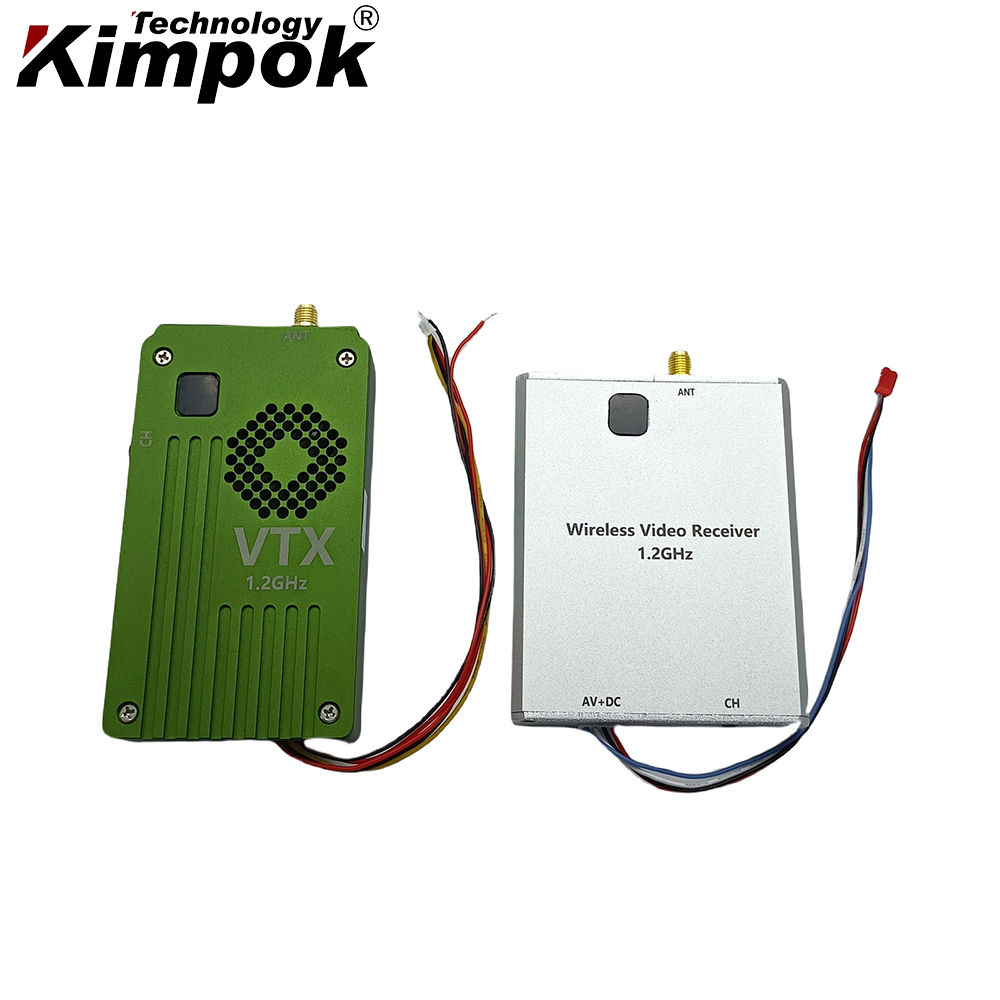

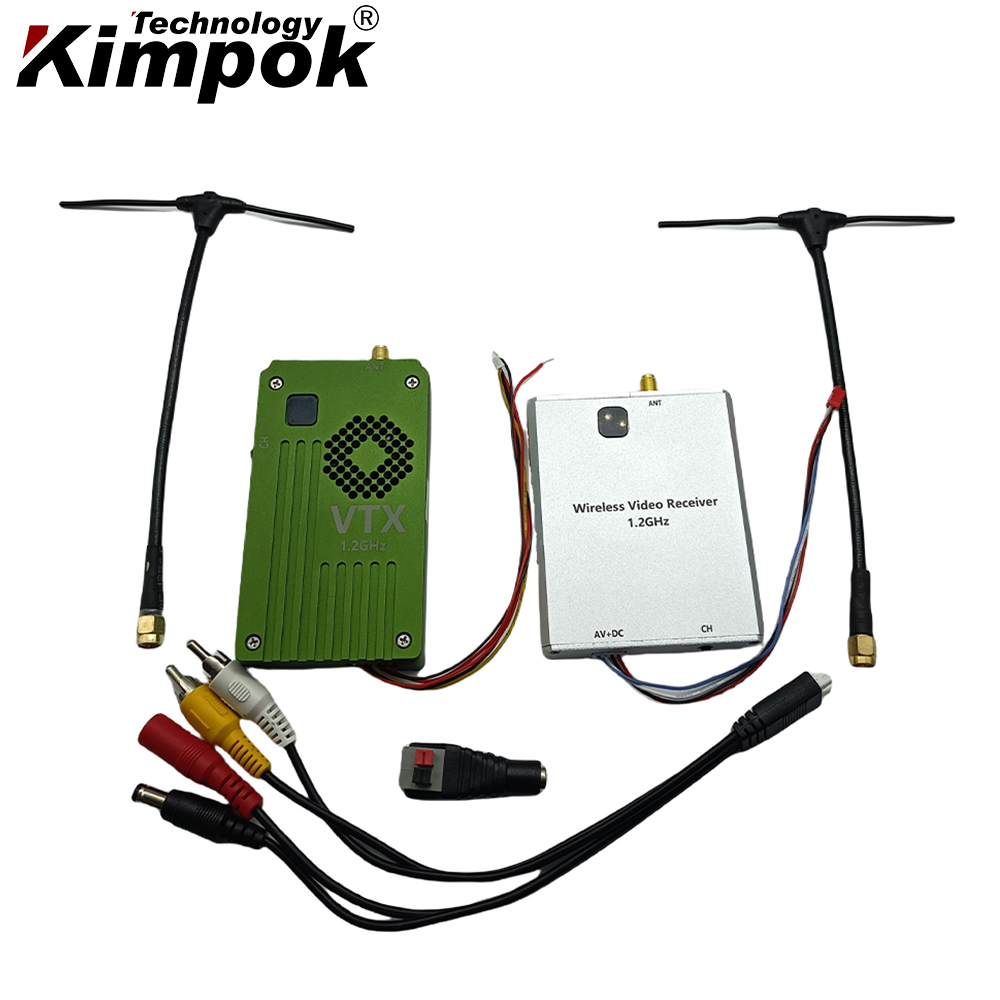

1.2Ghz 8W UAV Video Transmitter Receiver Image Sender with 8 Channels for Drone Transmission
Description:
The technical specifications of transmitter include maximum RF output power, minimum RF output power, power density, spurious transmitting power, out-of-band transmitting power, etc. These parameters are essential to ensure the reliability and performance of the transmitter in different environments.
The design focuses on miniaturization, high reliability and versatility, which can adapt to different application scenarios and task requirements. Its technical specifications and performance test methods ensure stable operation in a variety of environments.

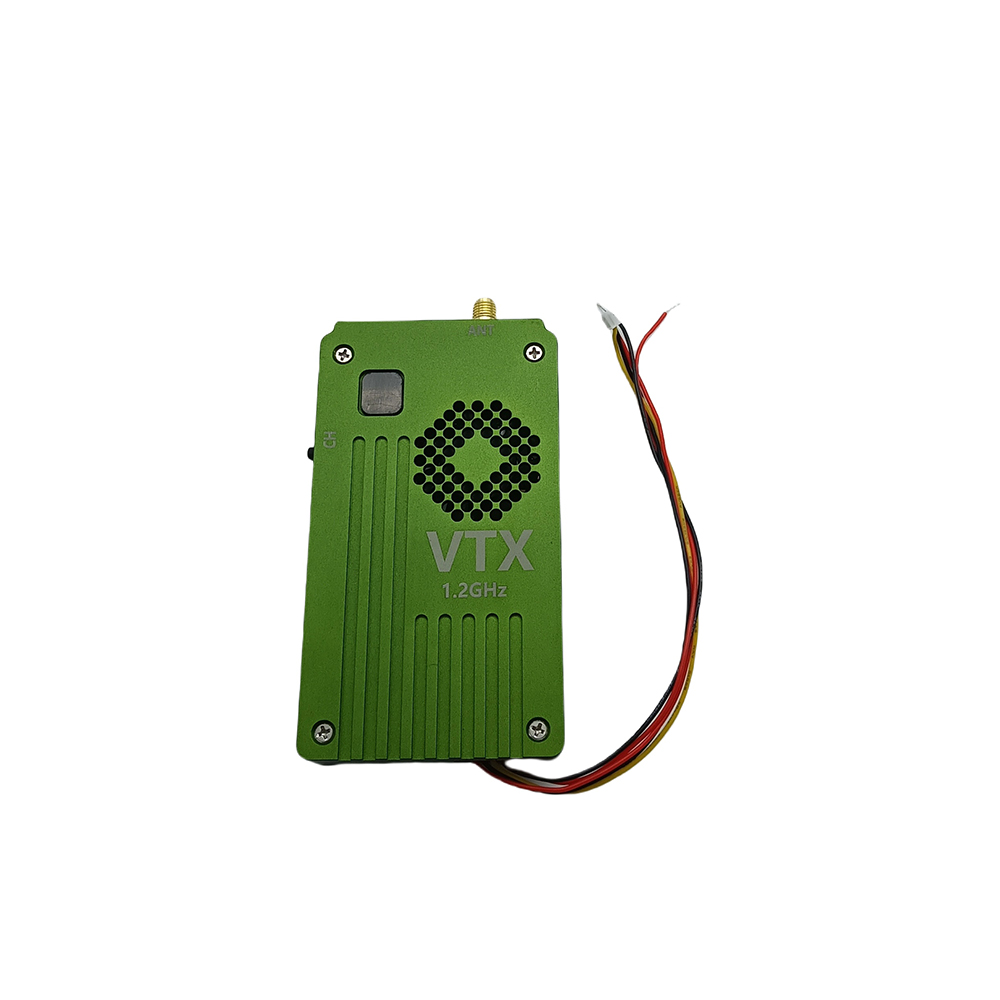

Transmitter Parameter:
| Product name | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 1.6A |
| Modulation | FM |
| Frequency | 1500Mhz |
| Channels | 8 channels |
| Frequency band | 1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz |
| Transmit Power | 8 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |

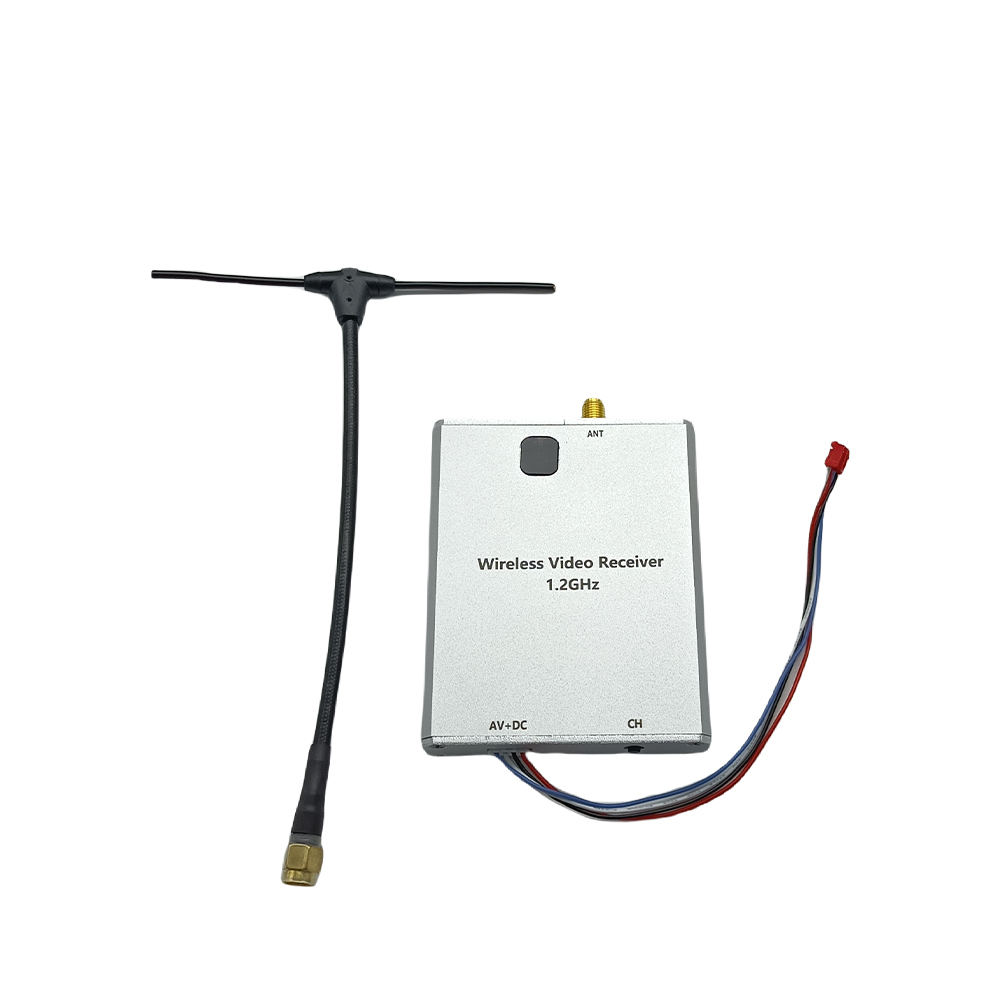

Receiver Parameter:
| Product | Analog video receiver |
| Voltage | DC 10-36V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 1200Mhz |
| Channels | 8 channels |
| Frequency band | 1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm (antenna port not included) |
|
